| Prod Model: |
A-2546B |
| Application: |
Home, Industrial, Commercial |
| Material: |
Stainless Steel PPO TPE |
| Function: |
Crimping, for Mc4 Solar Connectors Cable |
| Stripping Range: |
0.9-6.0mm2 |
| Cutting Range: |
30mm Max |
| Cable Range: |
2.5/4.0/6.0mm |
| Flame Class: |
UL94-V0/UL94-Hb |
| Parts: |
Crimper, Lacator, Hex Wrench, Tool Dies,Cutter etc |
| Type: |
Wire Strippers |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
| Feature: |
Insulation |
Product Description

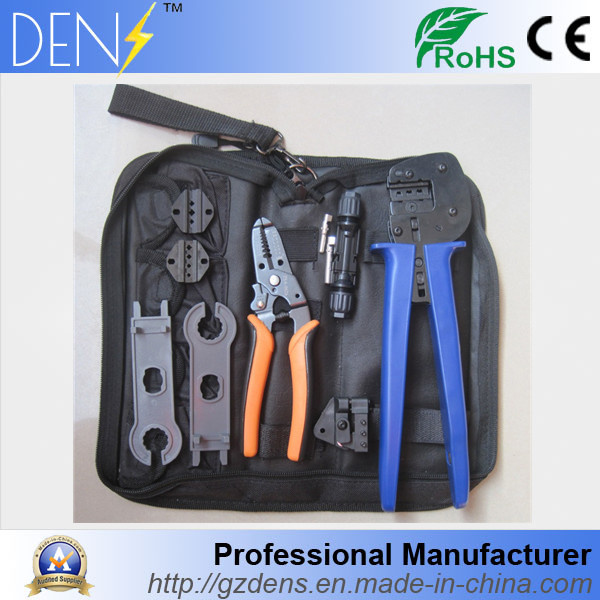

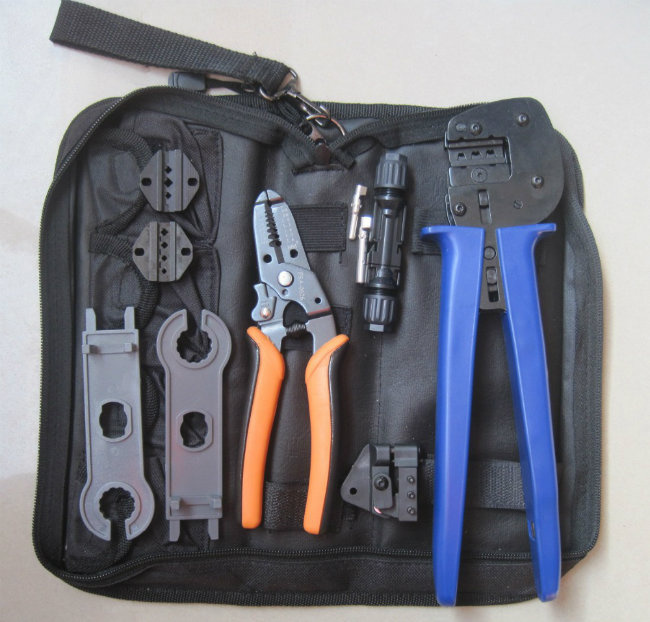

pv solar panel crimping tool with MC3 cable stripper MC4 spanner Technical data:1. REOO Solar Crimping Tool is High-precision ratchet mechanism for complete crimps;2. 1.2 metric tons pressure at crimping face, with minimal hand effort;3. Interchangeable high-precision crimping die set;4. Top German quality.Solar Crimping Tools Parameters(MC3 and MC4 type):Capacity:2.5-6mm2AWG:26-10AWGLength:270mmWeight:0.74KgStripper Parameters:For cutting wire, 30mm max. Stripping wire 0.9-6.0 mm2Automatic rebound spring No damaging of the conductor core Length: 165mm Weight: 0.16gIncluding Tools:1PCS A-2546B MC4 Crimping Tools(crimping range:2.5,4,6.0mm2),
1PCS Cable Stripper with cutter for cutting cables 30mm max and stripping cables 0.6-2.6mm2,
2PCS 2546S MC4 Spanner,
1PCS MC4 locator,
1PCS MC4 connector,
1PCS MC3 die set(crimping range:2.5,4,6.0mm2),
1PCS TYCO die set(crimping range:1.5,2.5,4,6.0mm2),
1PCS Hex Spanner,Several screws
No. |
Solar PV Tool Kits |
Include tools |
1 |
A-2546B solar cable crimper(With MC4 Solar Dies Set) |
Solar cable crimper
Crimping Range: (Multi-Contact) & 2.5/4/6mm2 (AWG 26-10)
Length:270mm, Weight:0.74Kg |
2 |
Locater |
Use with A-2546B Solar Cable Crimper |
3 |
Hex wrench |
Use for Installing MC4 Dies/Tyco Dies |
4 |
Tyco Solarlok crimping tool Dies Set(Optional extras) |
A Pair of Dies for Tyco solar connector
(Multi-Contact) &4/6m2
(AWG 12/10) solar cable. |
5 |
Wire Stripper with Cutter |
(for 22AWG to 10AWG, 0.6mm to 2.6mm2 solar cable) |
6 |
Solar connecter spanner |
2 Pcs Open-end spanner and unlocking
tool (MC4 and MC4 PLUS) |
7 |
Bag |
Carrying Oxford Zipper Bag: 310×140×65(mm) |
