| Prod Model: |
anjia-802 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Gauge: |
#14-23 |
| Material: |
PVC Coated Steel Wire |
| Hole Shape: |
Square |
| Surface Treatment: |
PVC Coated |
| Application: |
Decorative Mesh |
| Certification: |
SGS |
| Condition: |
New |
| Weave Technique: |
Welded |
Product Description
Welded Wire Mesh

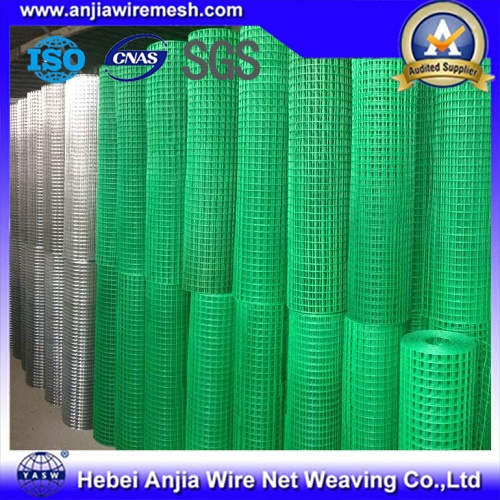

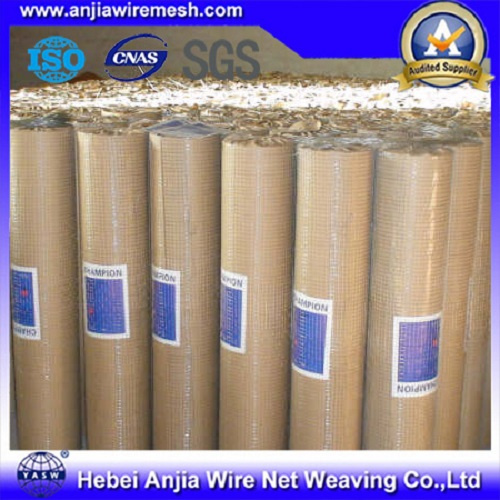

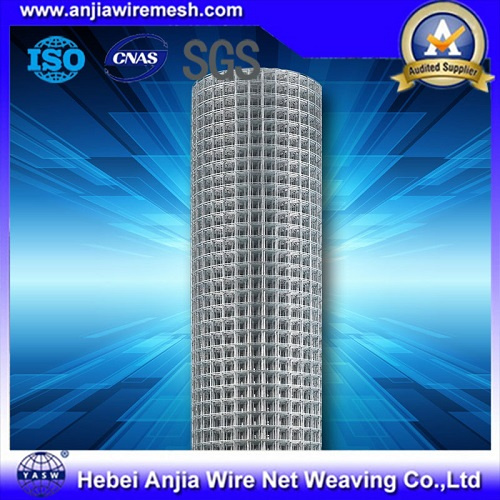

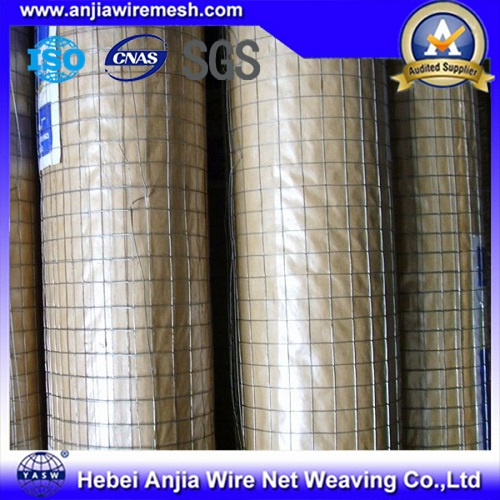

PVC Coated Galvanized Welded Wire Mesh for Building
Supply hot dipped galvanized welded wire mesh, it can be divided into hot dipped galvanized before welding and hot dipped galvanized after welding. This kind of welded wire mesh is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Usage:
Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
Hot dipped zinc coated welded wire mesh is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products; It is also the most versatile wire mesh due to its wide application in different fields.
Application:
It is very popular in breeding industry: Can be made into various animal cages or fences for breeding with its excellent anti-corrosion property. The zinc coating offers a kind of decorative outlook with its flat surface.
With first-class anti-corrosion property, it is widely used in mine sieving industries as sieving screen. The low carbon steel wire for making of hot-dipped welded wire mesh offers flexibility that can be made in many further fabrication applications.
| Specification List of Welded Wire Mesh: | | Opening | Wire Diameter | | In inch | In metric unit(mm) | | 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 | | 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 | | 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 | | 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, | | 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 | | 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 | | 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 | | 1" x 2" | 25.4mm x 50.8mm | 14,15,16 | | 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 | Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
|
| |
| Galvanized Fencing Mesh: | | Opening | Wire Diameter | | In inch | In metric unit(mm) | | 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm | | 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm | | 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm | | 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm | Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
|
| |
| PVC Coated Welded Mesh: | | Opening | Wire Diameter | | In inch | In metric unit(mm) | | 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 | | 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 | | 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 | Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.2m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
|
Hebei Anjia Wire Net Weaving Co., Ltd. is a manufacturer specialized in producing metal wire and metal wire mesh. It was established in 1991, and located in Anpin City, Hebei Province, factory covers an area of 72, 000 square meters, China where above 60% amount of Chinese wire meshes are produced. Through 18 years' dedicated work and consistent effort of staff, we developed fast; And now we are one of the top three companies in Anpin City. Meanwhile, we set a branch at Guangzhou, the Guangzhou office is located at Ying Long Plaza, while another factory is at Zhuliao town, which is specialized in producing the expanded steel sheet.
We provide products including the welded wire mesh, hexagonal wire mesh, stainless steel wire mesh, brass wire mesh, window screen, fiberglass mesh cloth, black iron woven cloth, expanded steel sheet, expanded aluminum sheet, barbed iron wire, razor wire, galvanized iron wire, stainless steel wire, black annealed wire, PVC coated iron wire, knotted wire mesh fence, chain link fence, fence net and so on.
Our products are sold throughout the world and welcomed by our customers due to competitive price and best price/quality ratios, and they are manufactured under strict observation of the ISO2001&2000 and the Chinese National Standards. The product brand "Anjia" and "Yong'an" have been accepted and well known in some countries. We cherish our international prestige and will continue to dedicate ourselves to provide best products and service to our customers.
Anjia established a fence net production line in Anping in 1997 in order to code with the the strong demard of our market network. Fence net is a widely used product. Absorbing the essence of European fencing system and the profound understanding of the different demand, no matter for security or beautifying, you can choose from Anjia fence net products. With rich experience of 10 years and the market proof, we become one of the major market player in this line.
We will make a better future with your support and trust. We will bing you more value with our continuous innovation and creation.
