| Price: | US $ 15/Roll |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Roll |
| Pay Type: | L/C,T/T |
| Prod Model: | CT-HXM |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

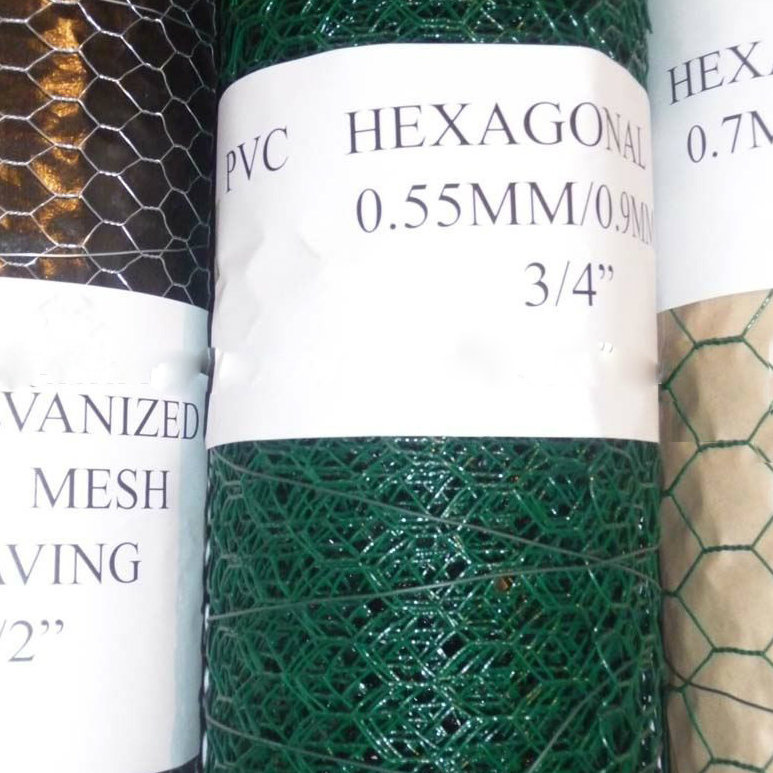

| Hexagonal Mesh Type: | PVC-Coated |
| Opening: | 3/8'' to 2'' |
| Width: | 0.3mm to 2.0mm |
| Length: | 25m to 200m |
| Material: | Low Carbon Steel Wire |
| Application: | Decorative Mesh |
| Surface Treatment: | PVC Coated |
| Weave Method: | Positive and Negative Twist |
| Weave Technique: | Plain Weave |
| Mesh | Wire dia | Mesh Width | |
| BWG | mm | Meter | |
| 3/8" | 27-23 | 0.41-0.64 | width limit:2M,single or double edge |
| 1/2" | 27-22 | 0.41-0.71 | width limit:2M,single or double edge |
| 5/8" | 27-22 | 0.41-0.71 | width limit:1.22M,single or double edge |
| 3/4" | 26-20 | 0.46-0.89 | width limit:2M,single or double or strong edge |
| 1" | 25-19 | 0.51-1.07 | width limit:2M,straight or reversed twist |
| 1-1/4" | 24-18 | 0.56-1.24 | width limit:2M,straight or reversed twist |
| 1-1/2" | 23-16 | 0.64-1.65 | width limit:2M |
| 2" | 22-14 | 0.71-2.11 | width limit:2M |
| 3" | 21-15 | 0.81-2.11 | width limit:2M |
| Specification in Inch | Specification in Metric Unit | Wire Gauge (BWG) | Technical Note |
| 1/2" | 1.5CM | 22 | Max. roll width: 2m; Single or double edge |
| 24 | |||
| 3/4" | 2CM | 20 | Max. roll width: 2m; Single, double, or with reinforced edge for customer's choice |
| 22 | |||
| 24 | |||
| 5/8" | 1.8CM | 21 | Single or double edge |
| 23 | |||
| 25 | |||
| 1" | 2.5CM | 19 | Max. roll width: 2m; Normal and reverse twist |
| 21 | |||
| 23 | |||
| 1.25" | 3CM | 19 | Max. roll width: 2m; Normal and reverse twist |
| 21 | |||
| 1.5" | 4CM | 18 | Max. roll width: 2m |
| 20 | |||
| 22 | |||
| 2" | 5CM | 18 | Max. roll width: 2m |
| 20 | |||
| 22 |
