PVC Pipe Elbow 45 of Polyvinylchloride Plastic Fittings
Price: |
US $ 0.2-200/Piece |
Min Order: |
200/Piece |
Pay Type: |
L/C,T/T,D/P |
Prod Model: |
8000010100 |
Certificate: |
SGS Ce |
Connection: |
Welding |
Shape: |
Equal |
Head Code: |
Round |
Angle: |
45 Degree |
Certification: |
ISO |
Wall Thickness: |
ISO1452 |
Material: |
PVC |
Technics: |
Plastic Injection |
Color: |
Grey |
Product Description
Company Profile
Jiangsu Huasheng Plastic Co., Ltd is one of the biggest PVC manufacturers in water supply area which has powerful abilities both in opening model and R&D.
Description
Characteristics of the pvc fitting |

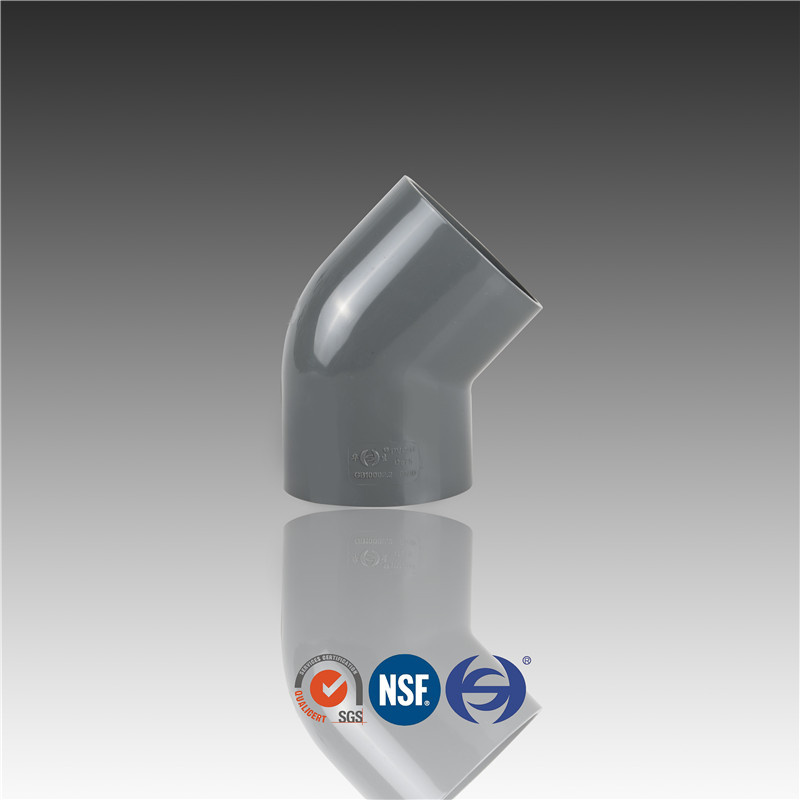

Name: | pvc pipe fittings 45 degree elbow |
Application: | For water supply |
Normal size: | 20"*400mm |
International Standards: | BSEN1452 |
Color: | White, grey, green or customized |
Material: | PVC |
Length: | According to your requirement |
Certification | ISO14001,ISO9001,SGS,CE |
Property
1) Smooth inner wall, reduce pressure loss and increase flow speed
2) Sound insulation (reduced by 40% compared to galvanized steel pipes)
3) Light color and excellent design, suit both exposed and hidden installation
4) Recyclable, environment-friendly, in accordance with GBM standards
5) Extremely long usage life of at least 50 years
PVC Elbow 45°,PVC-U/M,DIN8063 PN10 |
Size(De) | Dimension(mm) |
D0 | d1 | d2 | d | T | H |
20 | 24.60 | 20.24 | 19.96 | 19.00 | 17.00 | 22.14 |
25 | 29.84 | 25.24 | 24.95 | 24.00 | 19.50 | 25.67 |
32 | 37.16 | 32.25 | 31.95 | 31.00 | 23.00 | 30.62 |
40 | 46.48 | 40.28 | 39.95 | 39.00 | 27.00 | 36.28 |
50 | 57.00 | 50.33 | 49.94 | 49.00 | 32.00 | 43.35 |
63 | 70.38 | 63.34 | 62.93 | 62.00 | 38.50 | 52.54 |
75 | 83.05 | 75.35 | 74.93 | 73.50 | 44.50 | 61.72 |
90 | 99.28 | 90.38 | 89.93 | 88.50 | 52.00 | 72.33 |
110 | 120.40 | 110.42 | 109.92 | 108.00 | 62.00 | 87.50 |
125 | 135.00 | 125.52 | 124.93 | 123.00 | 69.50 | 98.00 |
140 | 153.10 | 140.58 | 139.88 | 138.00 | 77.00 | 108.60 |
160 | 174.52 | 160.62 | 159.87 | 158.00 | 87.00 | 122.70 |
180 | 202.60 | 180.81 | 179.91 | 178.50 | 97.00 | 137.87 |
200 | 217.40 | 200.90 | 199.85 | 197.00 | 107.00 | 108.40 |
225 | 243.58 | 226.02 | 224.83 | 221.00 | 119.50 | 168.70 |
250 | 270.90 | 251.15 | 249.41 | 247.00 | 132.00 | 120.75 |
280 | 314.80 | 281.46 | 280.16 | 278.00 | 147.00 | 209.60 |
315 | 344.50 | 316.55 | 315.05 | 312.00 | 165.00 | 233.50 |
355 | 386.20 | 356.63 | 355.03 | 326.00 | 183.50 | 272.80 |
400 | 433.80 | 401.60 | 400.00 | 398.50 | 208.00 | 298.5 |
Packing List |
Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
Elbow 45° | De20 | 900 | 13.2 | 43.5 | 31 | 30 |
De25 | 600 | 17.6 | 43.5 | 31 | 30 |
De32 | 300 | 30.8 | 43.5 | 31 | 30 |
De40 | 360 | 52.8 | 53 | 38 | 35.5 |
De50 | 200 | 83.6 | 53 | 38 | 35.5 |
De63 | 110 | 132 | 53 | 38 | 38 |
De75 | 60 | 198 | 53 | 38 | 35.5 |
De90 | 36 | 316.8 | 53 | 38 | 38 |
De110 | 18 | 506 | 53 | 38 | 35.5 |
De125 | 20 | 660 | 57 | 40 | 43 |
De140 | 12 | 1050.5 | 47.5 | 40 | 47 |
De160 | 8 | 1540 | 45.5 | 36 | 53 |
De180 | 4 | 2816 | 44 | 29 | 58.5 |
De200 | 4 | 2805 | 58 | 46 | 35.5 |
De225 | 2 | 3487 | 53 | 38 | 38 |
De250 | 2 | 5280 | 57 | 40 | 46 |
De280 | 2 | 10290.5 | 65 | 43 | 48.5 |
De315 | 1 | 11192.5 | 48 | 36 | 53 |
De355 | 1 | 14613.5 | 53.5 | 39.5 | 63.5 |
De400 | 1 | 19222.5 | 59.5 | 45 | 70 |
Jiangsu Huasheng Plastic Co., Ltd was founded in 1988, which specialized in moulding, Precision Injection, UPVC, CPVC pipe, fittings and Valves in DIN, ISO, ASTM standard on water supply and industry with NSF, CE, ISO, SGS etc certificates

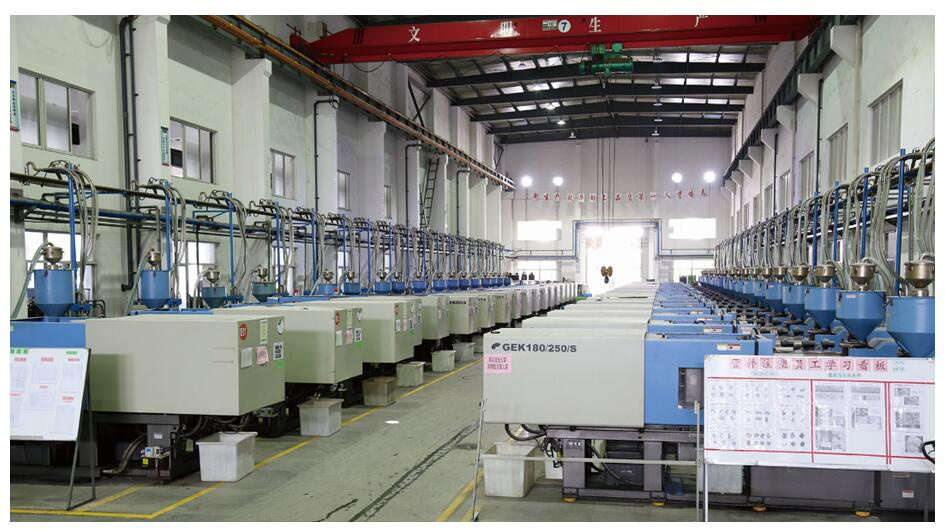

Currently, the annual production has reached a sales turnover of USD 30, 000, 000, covering 250, 000 square meters of two factories, over 170 injection machines, 20 pipe extruding lines, 80 mechanical processing equipments and more than 500 laborers.
The annual production capacity has exceeded over 60, 000 tons and storage has been over 10, 000, 000 USD. Huasheng has already exported products to U. S. A, Japan, Korea, Dubai, Pakistan, India, Philippines, Turkey, Southeast Asia area, etc.
Jiangsu Huasheng Plastic Co., Ltd has been the expert in plastic industry for over 28 years, Huasheng is one of the biggest PVC manufacturers in water supply field who has powerful abilities both in opening model and R&D.
Now Huasheng is engaging in opening global markets. The team is powerful, possitive and professional.
We firmly believe one day, we will make our dream come ture.
