| Prod Model: |
DN15mm - DN100mm |
| PVC True Union Ball Valve: |
DIN, ANSI, JIS Standard |
| PVC Double Union Ball Valve: |
Socket X Socket, Female X Female |
| Union Ball Valve: |
JIS Standard |
| PVC Union Ball Valve: |
ANSI or ASTM Standard |
| PVC Ball Valve: |
Dn15-Dn100 (1/2"- 4") |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Application: |
Household Usage |
| Material: |
PVC True Union Ball Valve |
| Type: |
PVC Double Union Ball Valve |
Product Description

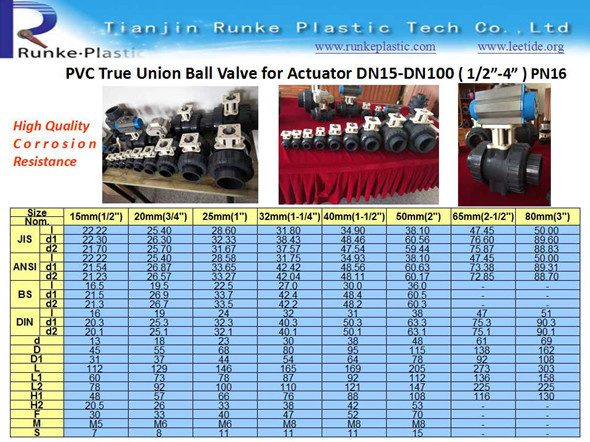

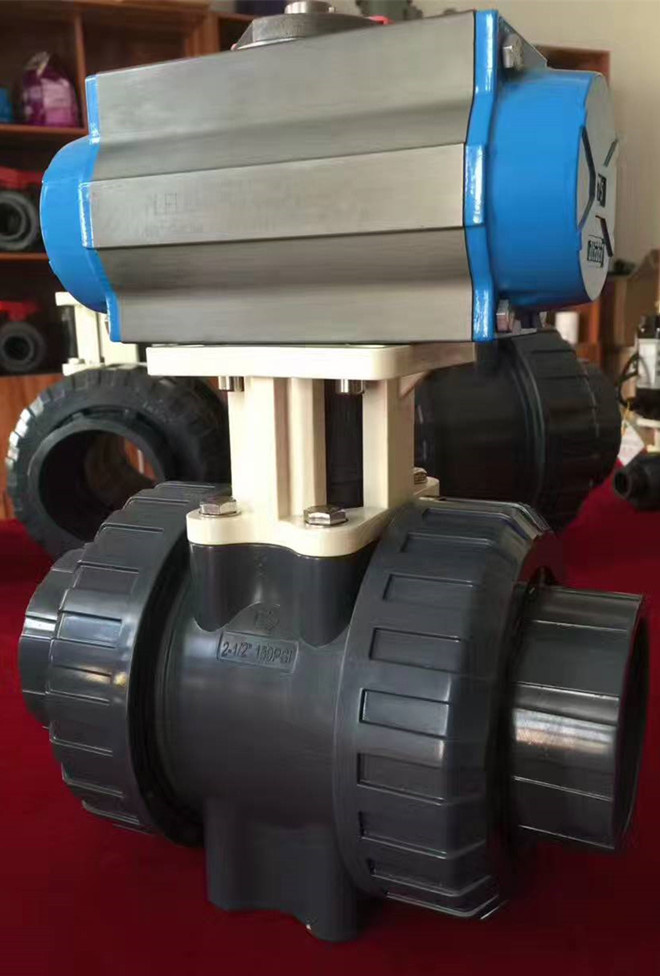

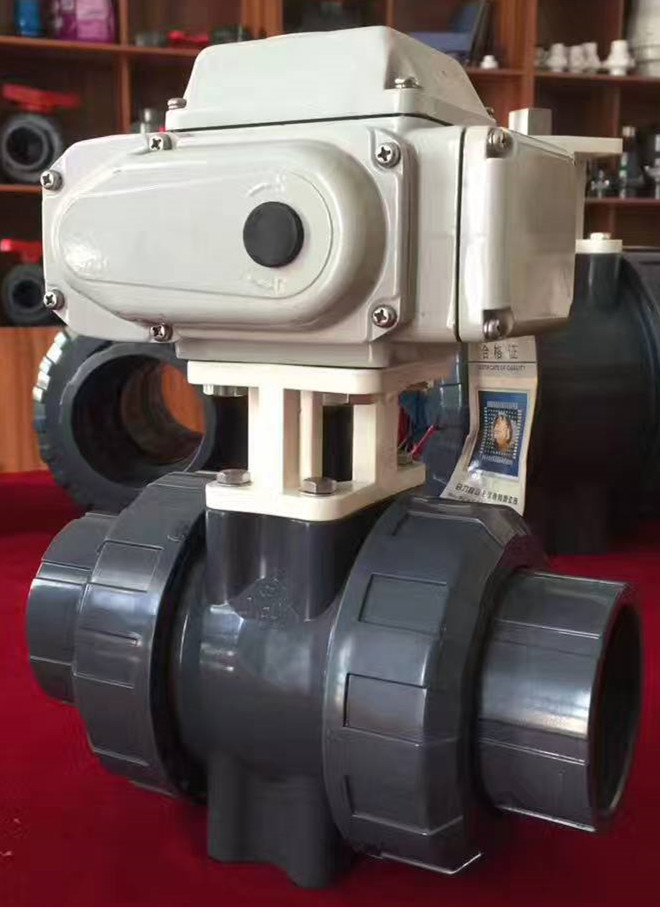

PVC True Double Union Ball Valve for Actuator Usage
DN15-DN100 (1/2"- 4")

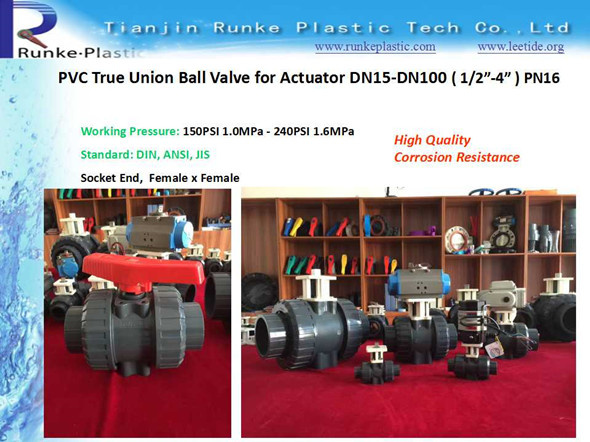

Working pressure: 10 kg/cm2 150 psi. 16 kg/cm2 240 psi
Standard: DIN, ANSI, BS. JIS.
Connection: Socket x Socket, Female x Female
Feature:
Full-Flow, Excellence Appearance, High-Strength, Corrosion Resistance, Long Life

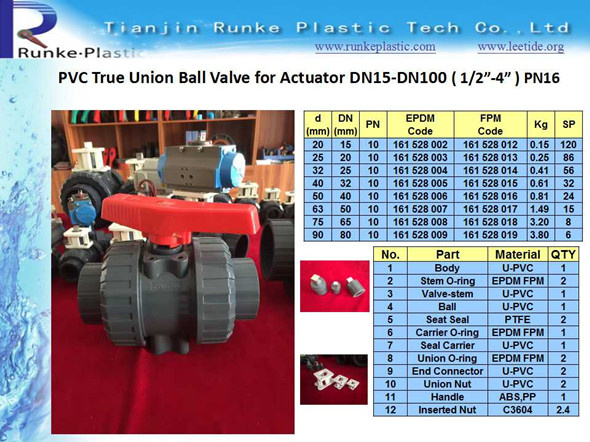

Seat Seal & Ball Seal: PTFE ( Tefion ). Stem O-Ring: EPDM Rubber.
ABS Handle. Seat Tightness Can be Adjusted. Low Torque.
Full Flow. 100% Factory Test.
The Valve Base Can be Adjust Elastic by Manual
Release from the Central Valve Remained Intact, Can be Replaced

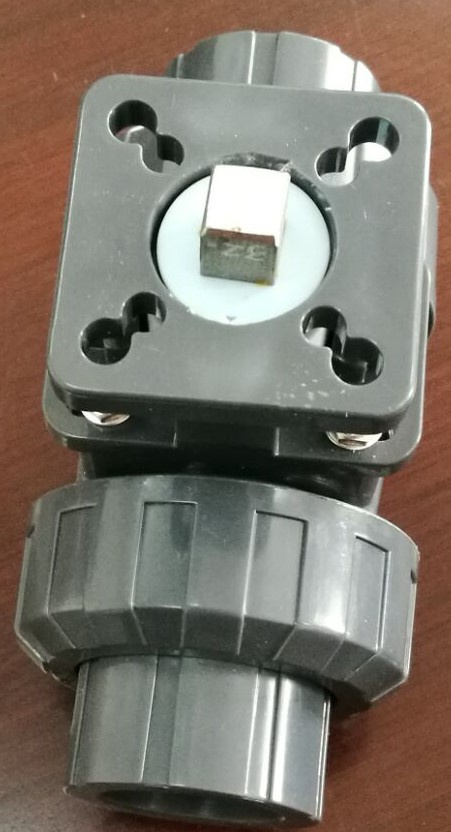

Embedded Platform for the Provision of Fringe Nut Copper to Facilitate the Installation of Automatic Actuator
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
