Prod Model: |
Q43-1600 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Design: |
Alligator |
Blade Length: |
600~1200mm |
Usuage: |
Metal Plates, Bars, Other Scraps etc |
Operation: |
Buttons Control, Automatic |
Lifetime: |
More Than 10 Years |
Type For Cutting Machine: |
Hydraulic Cutting Machine |
Type For Fold-Bending Machine: |
Hydraulic Fold-Bend Machine |
Application: |
Machinery & Hardware |
Type: |
Press Brake |
Product Description

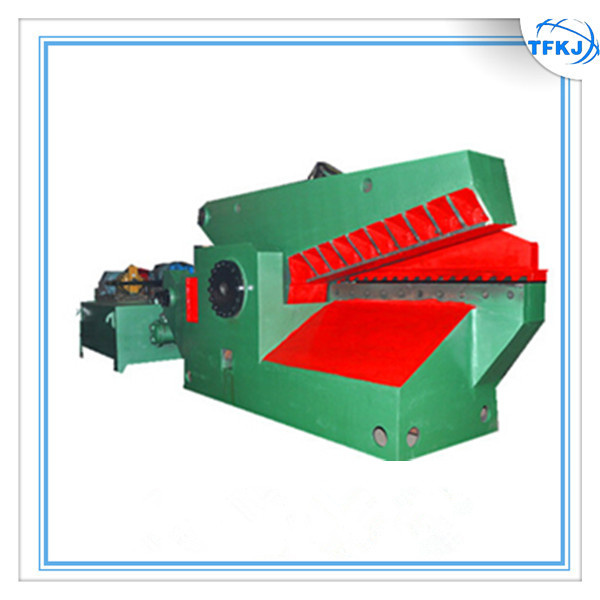

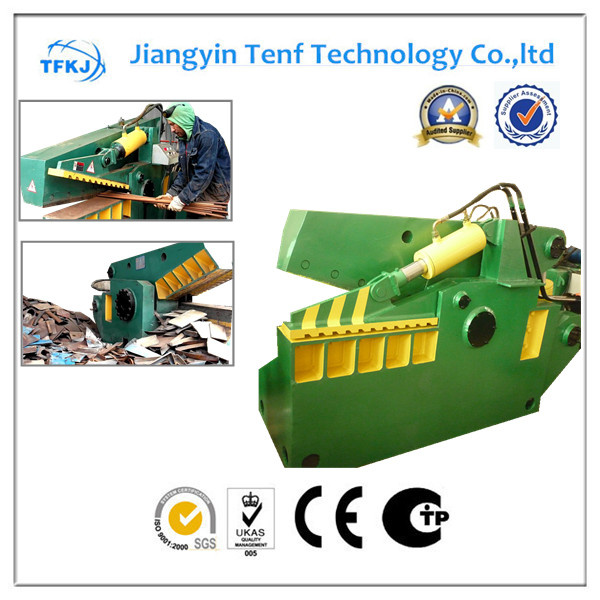

Q43 hydraulic alligator metal shear with CE approved
1.Applications:
Q43 Series of alligator shear machine is applied in recycling companies,automobile dismantling plants,smelting & casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges.
2.Features:
1)Adopting hydraulic drive,Q43 series feature simple operation & easy maintenance,it's safe & reliable.
2)Shear force 9 grades from 63 to 500 tons;blade length 400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm,
3)No footing bolts needed in installation;diesel engine can be equipped for power.
4)We are factory with strict quality control team.
3.Service:
1) Lifelong maintenance and considerate technical support!
2) Any problem before or after delivery, you could find and talk with us anytime anywhere.
3) Technicians can be sent to abroad, door to door service
4) Video / CD of test running and installation, User's Manual.
5) Complete parts & tools in box sent with machine.
4.FAQ:
1) Are you a factory or trade company?
We are manufacturer with own factory for 15 years, export proportion 70~80%.
2) How can i trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
b. Assessed by third party, national patents for all equipment, also CE, ISO.
c. Agents in RU, UKR,MYS,PH; Users around the world.
d. Welcome to inspect anytime. We are near to Shanghai airport.
3) How about the test running & installation?
Before delivery, we finish the test over 3times.
If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
4) Any warranty?
Under the proper usage, one year for whole machine except the wear parts.
5) Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
Type | Q43-5000 | Q43-1000 | Q43-1200 | Q43-1600 | Q43-2000 | Q43-2500 | Q43-3150 | Q43-4000 |
Max Shear Force (kn) | 5000 | 1000 | 1200 | 1600 | 2000 | 2500 | 3150 | 4000 |
Max Holding Force(ton) | 50 | 16 | 20 | 25 | 25 | 26 | 42 | 42 |
Max Blade Opening(mm) | 650 | 280 | 280 | 320 | 380 | 480 | 520 | 520 |
Blade Length(mm) | 1500 | 600 | 600 | 700 | 800 | 1000 | 1200 | 1200 |
Shearing Frequency(times/min) | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 |
Material Size(mm) | 100*100 110*110 | 40*40 45*45 | 45*45 50*50 | 55*55 63*63 | 65*65 75*75 | 70*70 80*80 | 80*80 90*90 | 90*90 100*100 |
Power(KW) | 60 | 11 | 15 | 18.5 | 22 | 30 | 37 | 44 |
Operation | Manual feeding ,manual or automatic operation |
