| Prod Model: |
QC11Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Cutting Thickness: |
6mm-20mm |
| Max. Cutting Width: |
2500mm-6000mm |
| Power: |
380V/50Hz/3phase |
| Backgauge Range: |
600-1000mm |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type: |
Shearing Machine |
Product Description

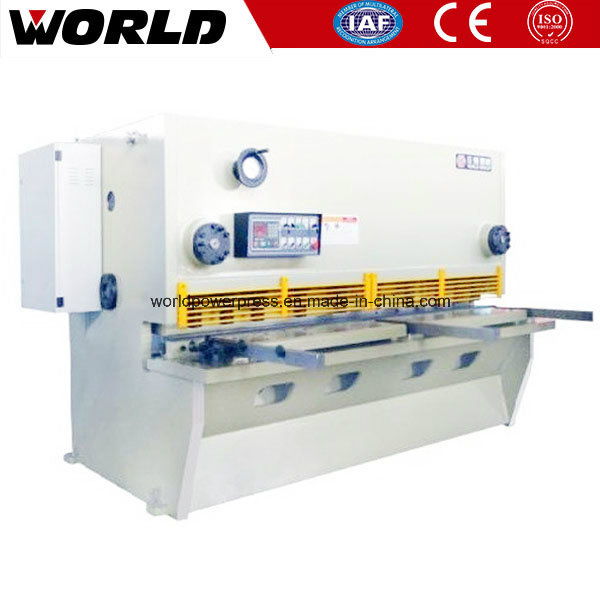

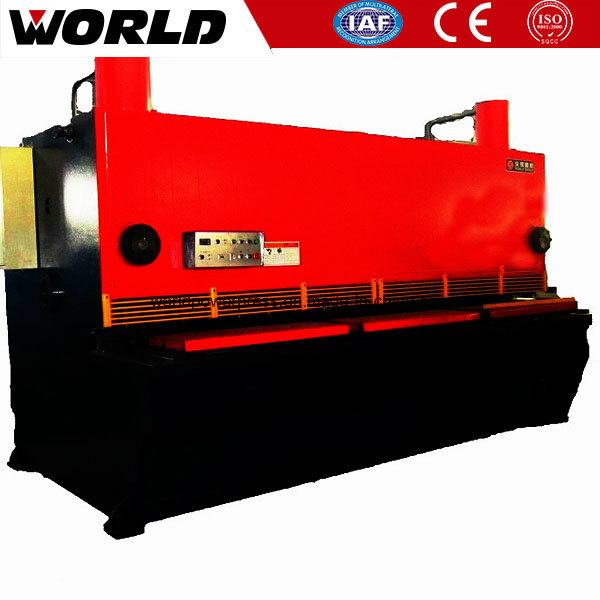

sheet metal cutting shear
Features:
1)Entirely steel welded frame, treated to release stress by tempering.
2)Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
3)Adopts rolling guideway to raise shear precision.
4)The stroke of knife beam can be adjusted.
5)With counter.
6)Shearing angle can be adjusted.
7)With protection fence.
Details:
| Items | unit | 6x2500 | 6x3200 | 6x4000 | 8x2500 | 8x3200 | 8x4000 | 10x2500 | 10x3200 |
| Max. cutting thickness | mm | 6 | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Max. cutting width | mm | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 | 2500 | 3200 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Cutting angle | deg | 0.5-2 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-2 | 0.5-2 | 0.5-2 |
| Max. travel distance of backgauge | mm | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Main motor | kW | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 15 | 15 |
Overall dimension
( LxWxH) | mm | 3070 | 3770 | 4570 | 3130 | 3830 | 4700 | 3130 | 3860 |
| 1400 | 1450 | 1550 | 1550 | 1680 | 1730 | 1550 | 1870 |
| 1910 | 1980 | 2040 | 1990 | 2120 | 2160 | 1990 | 2170 |
| Weight | kg | 6500 | 7800 | 8800 | 6500 | 8200 | 9200 | 6500 | 8600 |
| Items | unit | 12x2500 | 12x3200 | 12x4000 | 16x2500 | 16x3200 | 16x4000 | 20x3200 | 20x4000 |
| Max. cutting thickness | mm | 12 | 12 | 12 | 16 | 16 | 16 | 20 | 20 |
| Max. cutting width | mm | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Cutting angle | deg | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-3 | 0.5-3 |
| Max. travel distance of backgauge | mm | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 1000 |
| Main motor | kW | 15 | 15 | 15 | 22 | 22 | 30 | 30 | 30 |
Overall dimension
( LxWxH) | mm | 3130 | 3830 | 4630 | 3150 | 3960 | 4750 | 3870 | 4850 |
| 1620 | 1820 | 1900 | 1770 | 1900 | 1900 | 2000 | 2350 |
| 2110 | 2310 | 2460 | 2250 | 2420 | 2420 | 2590 | 2850 |
| Weight | kg | 7500 | 9500 | 11500 | 8700 | 12000 | 1200 | 13800 | 21000 |
Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.
We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.
We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.
Warranty Policy
Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.
Installation Support
We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
