| Prod Model: |
QC11Y |
| Quality Guaranteed Components: |
Timely Delivery |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
Product Description
Machine Standard of QC12Y Series Hydraulic Shear Machine
The machine is produced under China's two key standard imposed for shear machines
GB/T14404-93----Shear Machine Precision Standard
GB/T2257.2-1999----Shear Machine Security Technology requirement standard
CE Standard
The Main Structure Character of QC12Y Series Hydraulic Shear Machine(Standard)
Weld: The machine body is all welded connected through good quality steel plate. The process has gone through the vibration and aging treatment to eliminate internal stress with good rigidity and high stability.
1. The front feeding platform has equipped with ruler for the plate feeding and also smooth in the surface to protect the plate in any surface hurting when feeding. The ruler can be precision into MM or more unit for accuracy control and checking.
2. The working table has equipped with ball or round bar steel to support the plate into feeding and also the protection for any surface lacerate.
3. The electronic box been equipped with good certificated components. Mostly we use CE certificated Siemens or Schneider components for exportation machines and also some high quality CCC certificated components to carte for different standard needs clients.
4. The machine body steel, we mostly choose China top brand steel plate provider Shanghai BAOSTEEL with good quality and been treated with anticorrosive paint before the last paint on. So the machine firstly will have good durable usage and also perfect outside appearance.
5. The blade: The blade material is 9CrSi or 6CrW2Si, the material is high tested material with thousand times for high rigidity and cutting result. The up blade with two edges and the bottom blade has four edges. (The detailed please check SIECC/SIECCTECH blade explain photo and instruction). The blade clearance can be adjusted by manual or by motor. Both has the index dial to display the clearance so the control and display can be easily.
6. The machine equipped the press foot to press the plate stably when cutting, the foot has been equipped with plastic surface with high fraction without surface destroy of the plate. For Hole plate, we will equip square foot for stable square press.
7. Gear Pump: We use good brand "straight conjugate internal gear pump" in both China brand Shanghai chengjie or Germany Eckerler. The internal gear pump is treated as never wear pump in industry and has been widely used in high precision hydraulic machines with the character of low-noise, no pulsation and long lifetime. Shanghai Chengjie gear pump also used in China's aircraft industry so it is trustable and reliable. When in high speed working, the audio is flat and smooth even no trapping. The long lifetime is depend on his abrasive performance the inner machine components has oil film protection layer, so even use normal hydraulic oil, even no abrasion.
8. The hydraulic system can use Germany Rexroth or USA OMG system. The return is controlled by nitrogen return cylinder with stable working process and easy in operation. The hydraulic press enforced up transmission and nitrogen impose the up push-out with good cooperation working.
9. Backgauge are counted by counter and can be micro-adjusted.
Convenient working and person security protection(Optional)

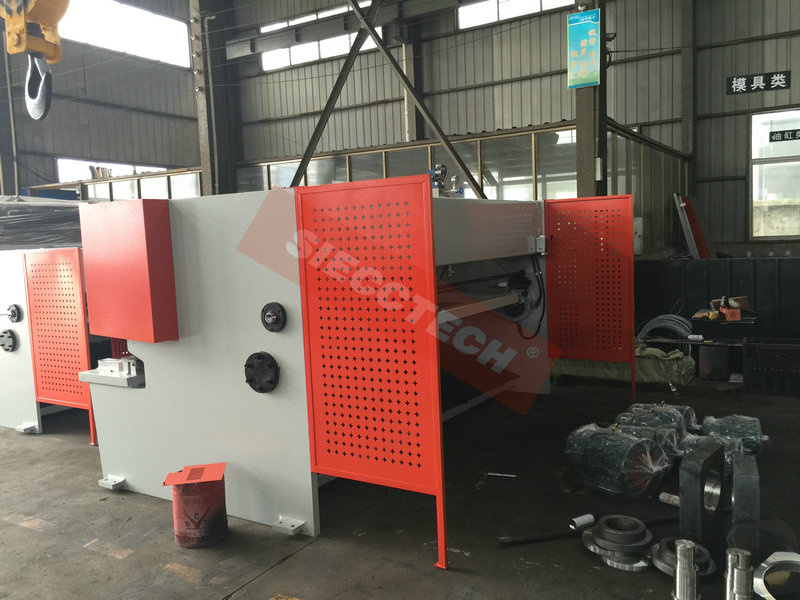

1. The machine can be equipped with full closed back side door to prevent any careless inside when cutting.
2. The machine can be equipped with cutted lift out declined platform under the backgauge for convenient operation.
3. Light curtain can be equipped also for security standard needs.
NC/CNC System and advance touch screen funtion
The normal system for CNC are Nanjing ESTUN (Holand Delem 60% JOINTED) system: ESTUN E20, ESTUN E21 and ESTUN E200 system, DELEM DA310 and DELEM DA360 and also Swiss CYBELEC system DNC60 and CT6 (Touch Screen).
| Max. Shearing Thickness | 6MM |
| Max. Shearing Width | 3200MM |
| Strength of Shearing Sheets | 450N/MM2 |
| Shearing Angle | 1°30' |
| Throat Depth | 100MM |
| Stroke Number | 14/MIN |
| Backgauge Range | 20-580MM |
| Blade Material | 9CrSi |
| Blade Length | 3300MM |
| Main Motor | Type | Y132M-4 |
| Power | 7.5KW |
| Speed | 1440R/MIN |
| Overall dimension | 3800X1600X1700MM |
| Weight | 7TON |
| Company | Shining Industrial Enterprise(China) Co., Ltd
Nantong Brillante Industrial Enterprise Co., Ltd
Edward Pearson Machinery (Shanghai) Co., Ltd
NANTONG LIANZHONG MACHINE CO., LTD
JIANGSU GOLD-PARTNER ENTERPRISE CO.,LTD |
| Brand | SIECC/EDWARDS PEARSON/HECTMAC |
| Website | www.machineshome.com
www.shearmachine.com.cn
www.bendrolls.com
www.allmachinetool.com |
| Video | - Rolling https://youtu.be/Fi3tFKSoLlY
- Press brake https://youtu.be/pyIChKoh1eA
- Grooving https://youtu.be/pFZh_n3vrss
- Ironworker https://youtu.be/0O9OeCmu9QI
- Plasma cutting https://youtu.be/71BKxv6tVB8
|
| |
|
| Facebook | https://www.facebook.com/siecctech |
| QC12Y SWING BEAM SHEAR MACHINE |
 |
 |
| QC11Y VARIOUS RANK GUILLOTINE SHEAR |
 |
 |
| MECHANICAL SHEARING MACHINE |
 |
 |
How about your machine quality?We are worry about the quality.
SIECC is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are SIECC machines.And where there are our machines,there are good reputation and terminal user satisfaction.
|
| Whether the machine price can be more discount SIECC always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Actually SIECC also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction. |
| How about your manufactory in CHINA SIECC located in HAIAN CITY,NANTONG,JIANGSU province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 10 years in this area and totally have about 150 staffs.Rich experience in this field with professional technical supporting and oriented service.
We welcome your visit to us any time. |
SIECC(Shining) is a leading company in high quality plate solution machines and has been for more than 20 years. We have developed a strong brand & reputation which has aided us to secure the largest market share in the China domestic market and also successfully enter and grow our international markets.
Our Product range is extensive, encompassing a wide variety of applications, which currently distributed globally to over 40 countries including EU, USA, Middle East, South and Middle Asia. SIECC has a company owned 5000 Square Meter Manufacturing facility and 4000 Square meter exhibition showroom in Jiangsu Province that displays all our Press Brake, Shearing Machines, Rolling Machines and Hydraulic Press machinery options.
Working together with our sister brands P&K and SIECCTECH, universities and other research facilities we are able to ensure our company is the market leader when it comes to automated machinery systems. All machines are designed to meet high-technology solution demands. As Automated machinery and their applications are widely used and sort after, we believe our machines are machines for the future and have concentrated on developing our products to the highest standard. The working standard is strictly controlled and certificated by the China Quality Department and all other affiliated international associations and have both CE and ISO accreditations. Our production capacity is one of largest in all of China Machinery Field, which allow us to hold enough stock at different phases of production to ensure any lead time required by our customers is met.
All Companies in the SIECC Group not only produce the best products but take pride in after-sales service. We have worked tirelessly to established tailored logistics solutions for our machines via sea, Road and, Rail transportation using the fastest and most economical means possible. SIECC owns an international logistics company in Shanghai which assists us to provide customised transport strategies for any large or out of gauge machinery to ensure the cost-effective and competitive price. We can also disassembled our machines if needed to save on freight and handling costs and offer reassembly at destination.
As the market leader in the manufacture of plate solution machines in China, we frequently participate in overseas trade shows and exhibitions to showcase our machines exceptional quality to the world.
We welcome any overseas or domestic agents to work with us and look forward to establishing further international networks for long-term working relationships. As the world becomes small, we become close.
