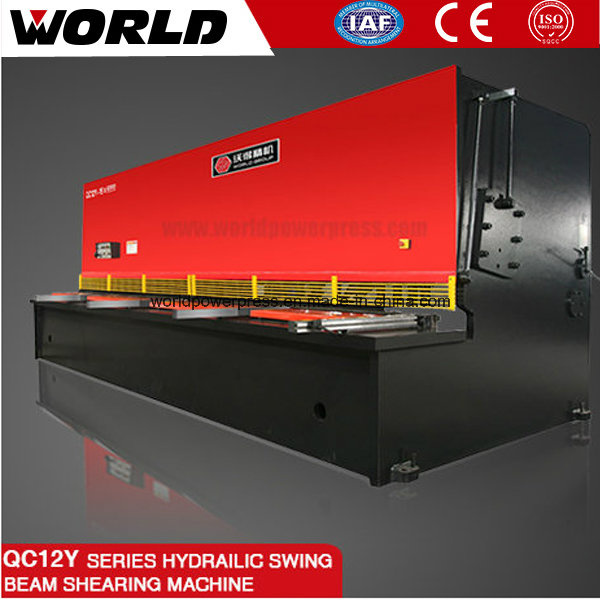

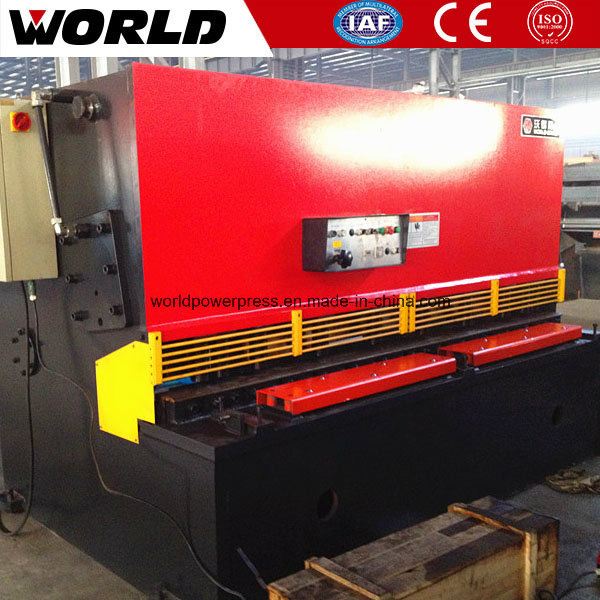

QC12y Brand New CE Approved Best Quality Machine Shear

Name: QC12y Brand New CE Approved Best Quality Machine Shear
Brand: tool-buy.com
SKU: 751204105
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 10000-20000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	QC12Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutting Thickness:	6~50 mm
Max. Cutting Width:	2500mm-6000mm
Backgauge Range:	600-1000mm
Power:	380V/50Hz/3phase
Application:	Machinery & Hardware
Type For Cutting Machine:	Hydraulic Cutting Machine
Type:	Shearing Machine

Product Description

machine shear

Features:

1) A fully welded steel construction with high strength and rigidity.
2) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
3) Fast-adjusting device for blade clearance.
4) Reliable protection barrier.
5) With counter.

Details:

1-Strong steel welded c frame body, heat treatment and best producing by cnc machine center, high rigidity and precision.
2-Backguage is controlled by motor and ballscrew, the postion can be displayed on the screen of E21 NC system.
3-English control panel with counter, emergency stop button is equipped for safety.

Specifications:

Items	unit	6x2500	6x3200	6x4000	8x2500	8x3200	8x4000
Max. cutting thickness	mm	6	6	6	8	8	8
Max. cutting width	mm	2500	3200	4000	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450	450	450	450
Cutting angle	deg	1.5	1.5	1.5	1.5	1.5	1.5
Max. travel distance of backgauge	mm	600	600	600	600	600	600
Main motor	kW	7.5	7.5	7.5	11	11	11
Overall dimension ( LxWxH)	mm	3130	3840	4630	3200	3900	4800
		1530	1675	1850	1850	1850	1950
		1600	1620	1700	1850	1900	1900
Weight	kg	5200	6700	8600	7000	8300	9700
Items	unit	10x2500	10x3200	10x4000	12x2500	12x3200	12x4000
Max. cutting thickness	mm	10	10	10	12	12	12
Max. cutting width	mm	2500	3200	4000	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450	450	450	450
Cutting angle	deg	1.5	1.5	1.5	1.5	1.5	1.5
Max. travel distance of backgauge	mm	600	600	600	800	800	800
Main motor	kW	15	15	15	18.5	18.5	18.5
Overall dimension ( LxWxH)	mm	3200	3900	4800	3225	3925	4725
		1850	1850	1950	1800	1800	2000
		1850	1900	1950	1940	1940	2040
Weight	kg	7000	8300	9700	8600	10800	13200
Items	unit	16x2500	16x3200	16x4000	20x2500	20x3200	20x4000
Max. cutting thickness	mm	16	16	16	20	20	20
Max. cutting width	mm	2500	3200	4000	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450	450	450	450
Cutting angle	deg	2	2	2	2.5	2.5	2.5
Max. travel distance of backgauge	mm	800	800	800	800	800	800
Main motor	kW	22	22	22	30	37	37
Overall dimension ( LxWxH)	mm	3350	4050	4850	3450	4200	4900
		2000	2050	2190	2280	2300	2600
		1890	2150	2250	2200	2350	2400
Weight	kg	10600	13200	17000	13500	18200	21000

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
