| Price: | US $ 0.29-0.3/Piece |
|---|---|
| Min Order: | 300/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | Coupling |
|---|---|
| Connection: | Welding |
| Structure: | Universal |
| Flexible Or Rigid: | Rigid |
| Material: | Stainless Steel |
| Standard: | Standard |

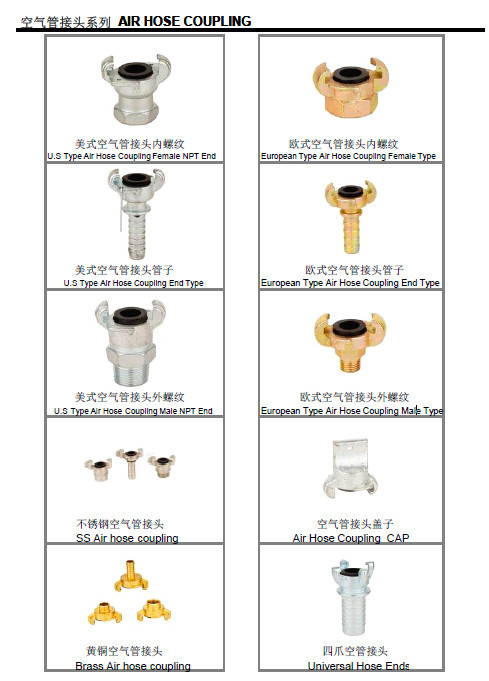

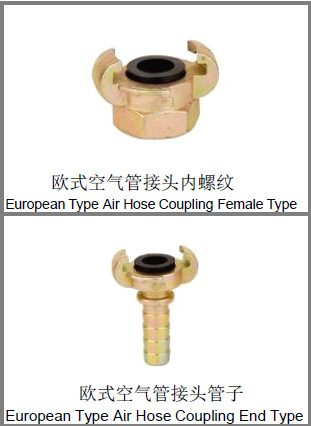

| Double Bolt Clamp | Universal couplings --European Type | ||||
| Size | Part Number | ||||
| SL22 | DSL201 | ||||
| SL29 | DSL202 | ||||

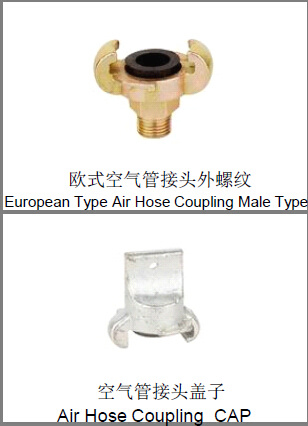

| SL34 | DSL203 | Hose Ends With Collar | Male Ends | ||
| SL40 | DSL204 | ||||
| SL49 | DSL205 | ||||
| SL60 | DSL206 | Size | Part Number | Size | Part Number |
| SL76 | DSL207 | 1/4" | / | 1/4" | DSL227 |
| SL94 | DSL208 | 3/8" | DSL223 | 3/8" | DSL228 |
| SL115 | DSL209 | 1/2" | DSL224 | 1/2" | DSL229 |
| SL400 | DSL210 | 3/4" | DSL225 | 3/4" | DSL230 |
| SL463 | DSL211 | 1" | DSL226 | 1" | DSL231 |
| SL525 | DSL212 | Hose Ends Without Collar | Female Ends | ||
| SL550 | DSL213 | ||||
| SL600 | DSL214 | ||||
| SL675 | DSL215 | Size | Part Number | Size | Part Number |
| SL769 | DSL216 | 1/4" | / | 1/4" | DSL236 |
| SL818 | DSL217 | 3/8" | DSL232 | 3/8" | DSL237 |
| SL875 | DSL218 | 1/2" | DSL233 | 1/2" | DSL238 |
| SL988 | DSL219 | 3/4" | DSL234 | 3/4" | DSL239 |
| SL1125 | DSL220 | 1" | DSL235 | 1" | DSL240 |
| Universal couplings--U.S.Type | |||||

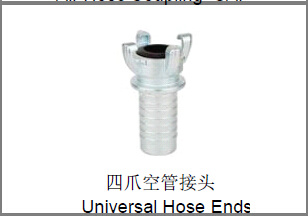

| Hose Ends | Male Ends | Female Ends | |||
| Size | Part Number | Size | Part Number | Size | Part Number |
| 3/8" | DSL241 | 3/8" | DSL245 | 3/8" | DSL249 |
| 1/2" | DSL242 | 1/2" | DSL246 | 1/2" | DSL250 |
| 3/4" | DSL243 | 3/4" | DSL247 | 3/4" | DSL251 |
| 1" | DSL244 | 1" | DSL248 | 1" | DSL252 |
| Four Lug Universal Couplings | |||||
| Hose Ends | Female Ends | Washer for universal couplings | |||
| Size | Part Number | Size | Part Number | Size | Part Number |
| 1-1/4" | DSL253 | 1-1/4" | DSL256 | Use from 1/4"-1" | DSL000 |
| 1-1/2" | DSL254 | 1-1/2" | DSL257 | use from over 1" | DSL001 |
| 2" | DSL255 | 2" | DSL258 | ||
and not in a closed pressurized (static) condition. This dynamic application involves continuous flow, The application should be in an open system where the air or water is in motion (dynamic)Universal air hose couplings are recommended to be used in the transfer of air and or water.
therefore, back pressure would be relieved by the very nature of the application.
The applicable system should contain pressure relief valves to relieve any excess pressure.
Safety clips and safety cables should be installed on either side of the coupling connection.
