Qm16200f Milling Drilling Machine Bench Clamp with Fixed Base
Price: |
US $ 48.99-49.99/Piece |
Min Order: |
20/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
QM16200F |
Product Name: |
Qm16200f Milling Drilling Machine Bench Clamp |
Model No.: |
Qm16200f |
Width Of Jaw: |
200 mm |
Height Of Jaw: |
50 mm |
Total Height: |
158 mm |
Max Opening: |
220 mm |
G.W.: |
41kgs |
N.W.: |
40kgs |
Qty/CTN: |
1 PCS |
CTN Size: |
56X36X16 Cm |
Product Description

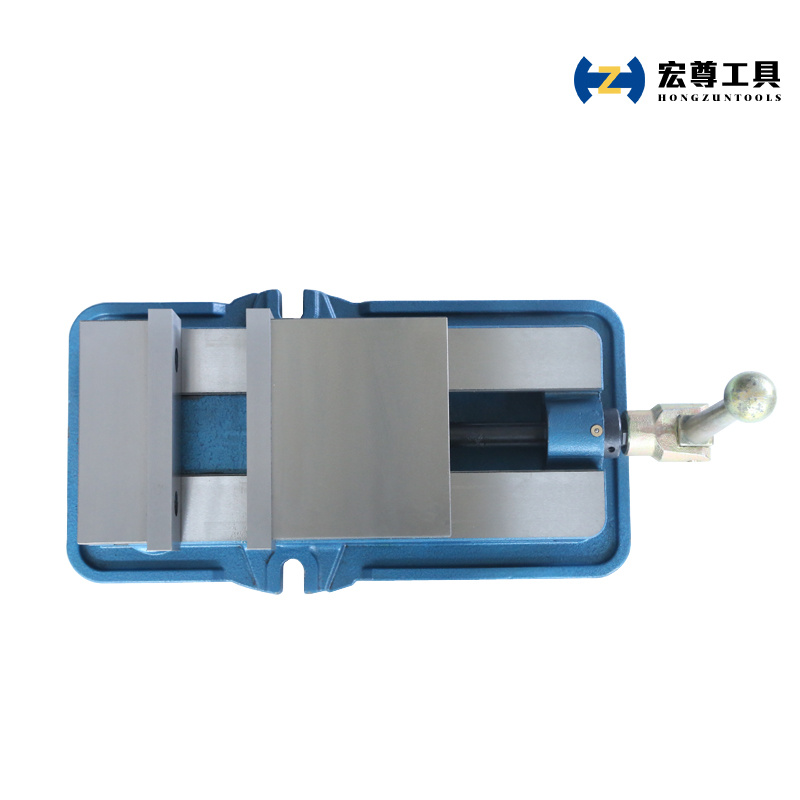

Product name: QM16200F milling drilling machine bench clamp with fixed base
Product specification:
Swivel base:Model NO. | Width Of Jaw(mm) | Height Of Jaw(mm) | Max.Opening(mm | G.w./N.w.(kgs) | Q'ty/Ctn(pcs) | Packing Size(cm) |
QM16100 | 100 | 32 | 100 | 17/16 | 1 | 36X25X15 |
QM16125 | 125 | 40 | 125 | 22/21 | 1 | 41x27x17 |
QM16160 | 160 | 45 | 160 | 35/34 | 1 | 45x32x18 |
QM16160L | 160 | 45 | 200 | 37/36 | 1 | 48x32x18 |
QM16200 | 200 | 50 | 220 | 51/50 | 1 | 56X36X20 |
Fixed base:Model NO. | Width Of Jaw(mm) | Height Of Jaw(mm) | Max.Opening(mm | G.w./N.w.(kgs) | Q'ty/Ctn(pcs) | Packing Size(cm) |
QM16100F | 100 | 32 | 100 | 14/13 | 1 | 36X25X13 |
QM16125F | 125 | 40 | 125 | 18/17 | 1 | 41x27x13 |
QM16160F | 160 | 45 | 160 | 26/25 | 1 | 45x32x14 |
QM16160LF | 160 | 45 | 200 | 28/27 | 1 | 48x32x14 |
QM16200F | 200 | 50 | 220 | 41/40 | 1 | 56X36X26 |
QM16250F | 265 | 70 | 290 | 96/88 | 1 | 75X40X21 |
Product feature:
• It is one of main attachments for milling, drilling machine, it is particularly suitable for the finishing of precision parts.
• The accurancy of vise (parallelism and squareness ) is 0.025mm/100mm.
• The special segment in the movable jaw forces the vertical pressure downward when the horizontal pressure works, so that this jaw does not lift the workpiece.
• These units can be ordered separately or with swivel base.
• Four positions allow extra capacity to change opening of jaw.Product packing:
* Export Carton or as request.
Product shipment:
* Port of loading: Qingdao, China.
* Delivery time: 45 days after payment.

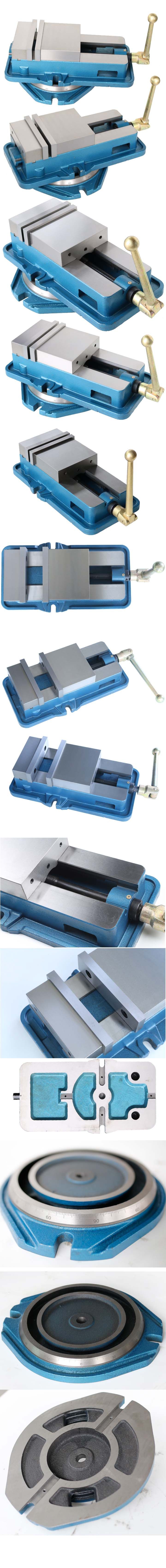

Product pictures:

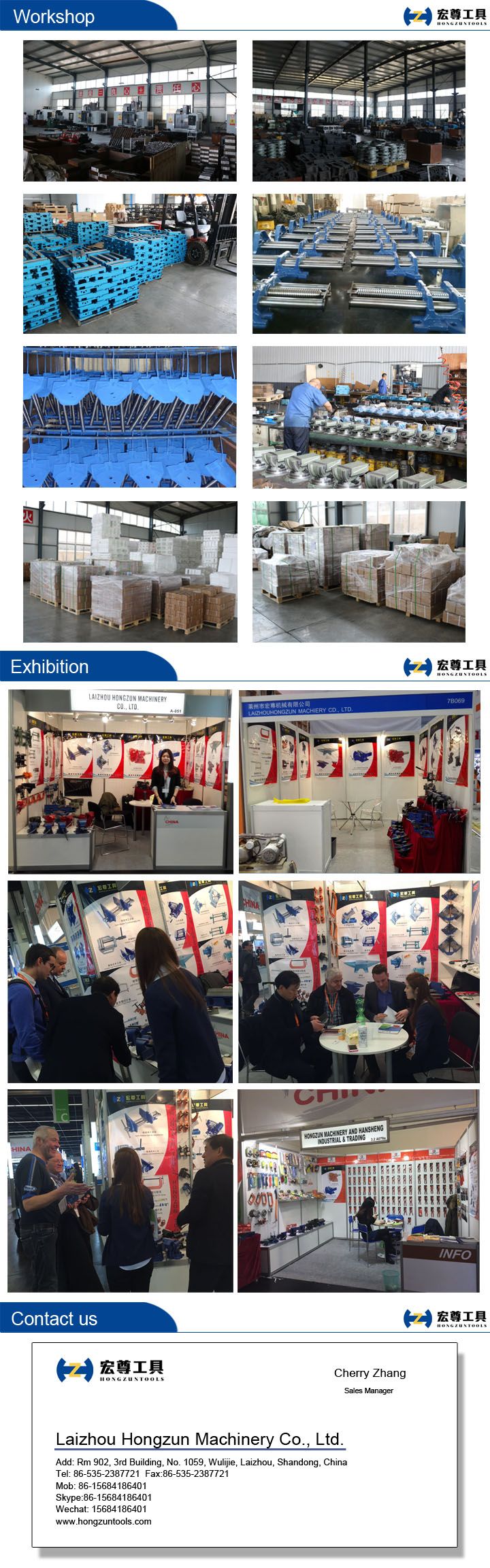

Laizhou Hongzun Machinery Co.,Ltd is a professional manufacturer of bench vise, table vise, drill press vise, cross slide vise, woodworking vise, welding vise,corner clamp, pipe clamp, bar clamp, forged clamp, machine vise, casting anvil, steel anvil, hand shear and many other types of hardware hand tools. We have more than ten years of experience in supplying hardware hand tools and seven years of experience in supplying woodworking machine.
