| Prod Model: |
HAFA850 |
| Rewinding Machinery: |
Cutting and Packaging Foil,Film,Paper |
| Packing Aluminium Foil: |
Household Foil |
| Material: |
Aluminum Foil Jumbo Roll |
| Thickness: |
0.007mm-0.035mm |
| Warranty: |
3 Years for Electric,5 Years for Mechanical Parts |
| PLC: |
Mitsubishi PLC |
| Screen: |
Seimons |
| Motor: |
Mitsubishi |
| Type: |
High-Speed Slitting Machine |
| Work Method: |
Extrusion Slitting |
| Application: |
Rewinding |
| Packaging Type: |
Wooden Case |
| Packaging Material: |
Aluminum Foil and Film |
Product Description
Our company official website:www.fitlifemac.com

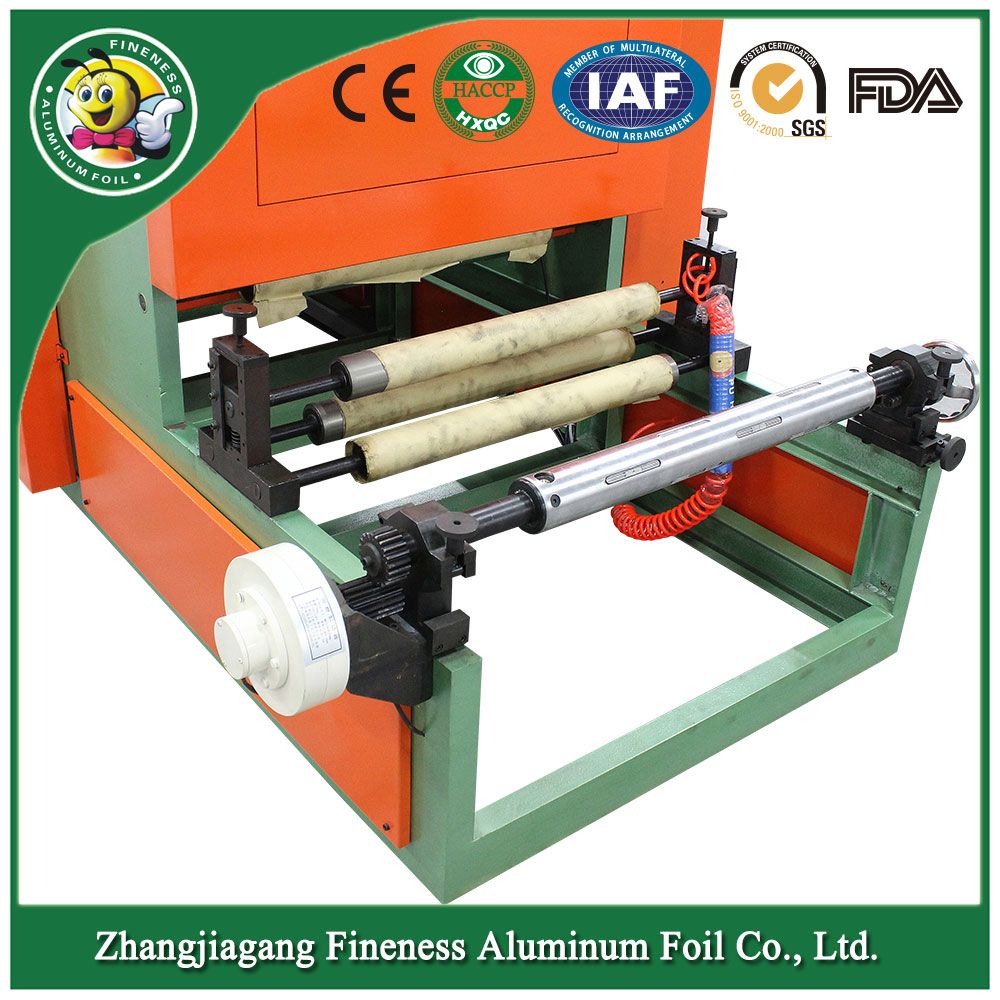

HAFA-850
Main Technical parameters:
| Thickness of Raw Material) | 0.009-0.025 | Air Pressure | 0.5Mpa |
| Width of Raw Material | 250-600mm | Overal Dimension | 4000*1550*1750mm |
| Maximun Unwinding Diameter | φ600mm | Total Power | approx 4.5KW |
| Inner Diameter of Raw Material Roll Core | φ75mm,φ150mm | Total Weight | approx 1700Kg |
| Inner Diameter of Finished Product Roll Core | φ25mm,φ30mm,φ38 mm | Production Efficiency | 2-3m/s |
| Cutting Length of Roll | 3-300m | Decoil Centering Stroke | +/-20mm |
Machine Packing List
1. Aluminum Foil Rewinding And Cutting Machine: 1 Unit
2. (Accessories):
Inner Hexagon Spanner: 1 Piece
Screw Wrench: 1 Piece
Chuck Wrench: 1 Piece
Blade Adapter: 1 Piece
Squirrel-cage Top Tube Plate: 1 Set
Inflatable Mouth: 1 Piece
Gasket Ring:30 pieces: 10 pieces per item)
Top-head: φ30; φ35mm :1 set respectively
After-sales Service Provided:Engineers available to service machinery overseas
we can do machine as follows:
1. Aluminum Foil Container Machine
2. Aluminum Foil Roll Machine
3. Slitter & Rewinder
4. Cross Cutting Machine
5. Aluminum Foil Scrap Baler
6. Automatic Carton Sealer
7. Aluminum Flexible Duct Machine
8. Aluminum Container Mould.
All our machine have passed CE Certification,and SGS inspection .we accord JB/T 10641-2006 of China's machinery industry standard to manufacter machine.
our factory have passed HACCP,ISO9001:2000.Our client from Itlay,Germany,Greece,Egypt,Syria. Brazil, Chile ...
we make mould for two size of wallboards . Aluminium foil rewinding machine of wallboard is used by wrought iron, so it can use more than 30 years without deformation ,some supplier use A3 board .it can easily out of shape in one or two years .our machine length is 4000mm ,some suppliers will just 3600mm, that is say you need one more operator to operate the machine. You need pay extra cost for work force .
After-sales Service Provided:Engineers available to service machinery overseas
We use SIEMENS Touch screen working panel , it can use more than 15 yeas without any problem .Even if it out of work, you can easily to change the working panel, as you know when your machine is working busy,but working panel is broken,even if we sent to your country ,it will waste mroe than 7 days,
but we use SIEMENS,you can buy in your country very easily.
And also solve the problem very quickly .We can guarantee the Touch screen working panel for 5 yeas .
Our PLC use Mitsubishi made in Japan . some supplier use Yangmin or XINJIE of made in China . that is say if it's broken ,you only can buy from your supplier, at that time ,thay may charge you high cost of PLC ,The worse is that Yangmin is wrotten by Chinaese ,without English . yourproblem will go with you again ,but if we give you Mitsubishi ,you can buy easily from yourcountry . your enginner will easy to know how to adjust it .
Technical Parameters:
o Thickness of raw material:0.009mm-0.03mm
o Raw material width:100-600mm
o Maximum unwinding diameter:Φ600mm
o Inner diameter of raw material roll core:Φ75mm ,Φ152mm
o Inner diameter of finished product roll core:Φ25mm,Φ30mm and Φ38mm
o Cutting length of roll:3m-600m
o Production efficiency:Calculation with 5m of roll cutting length, 5-30 rolls/min
o Magnetic powder brake:25N.M
o Magnetic powder clutch:25N.M
o Complete machine power:4.5KW
o Overall dimension:4,000mm×1,400mm×1,820mm
o Complete machine weight:About 1,800kg
| Packaging Detail: | Each Roll with bubble packing , 4 or 6 rolls per wooden carton , |
| Delivery Detail: | 10 days after confirm sample |
We have much experience in this line. We have exported to Italy, Greece, Russia, the Middle East, etc. we have passed ISO9001:2000, Haccp, AAA. Our aluminum foil related products have passed FDA, SGS, TUV. Our machines passed CE.With advanced equipments, superior quality administers and toping working team, we can offer our customers high quality products and the finest services. We are looking forward to establishing long-term business relations with clients
If you have another question, pls feel free to contact us as below:
Tel: 86- 0512-58793994
Zhangjiagang Fineness Aluminum Foil Co., Ltd. & Zhangjiagang Fitlife Machinery Co., Ltd is a company dedicated in the research, development, production and sale of aluminium foil related products. We have 27 years experience in aluminum foil and machiine line. Such as aluminium foil for food packing, hairdressing foil, silicone oil, barbecue paper, aluminum foil jumbo roll, aluminum foil container, Aluminum foil rewinding machine, and manual aluminium foil cutting machine, aluminum foil container production line, with the pace of globalization, the company spares no effort in becoming a first-class supplier of such products.
We are Aiming at producing high quality products, the company has passed the Certificate of ISO9001: 2000, FDA, SGS, TUV, CE and performs with adherence to the requirement of such system.
Household aluminium foil widely used in food freshening, baking, pan trying and cleaning in aviation and hotel, silicone oil, barbecue paper, with the length ranging from 1 to 600 meters, width from 100 to 600 millimeters, thickness from 8.5 to 28 microns, have a variety of appliances, such as cuisine, freezing, baking, and storage. Industrial aluminium foil jumbo roll used in electronic, cigarette, food packing industry etc.
Aviation food packaging foil all kinds of color and design is available, and we can coat, emboss, slit according to clients' demand. Aluminium foil container is used in family banquet and the package of food-related industries such as airline snack, western-style pastry baking, with the shape and size favored by the customer.
