| Prod Model: |
TSY-37FA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Marble |
| Application: |
Machinery & Hardware |
| Automation: |
Automatic |
| Type: |
Diamond Wire Saw Machine |
| Source Voltage: |
by Customs Requests |
Product Description

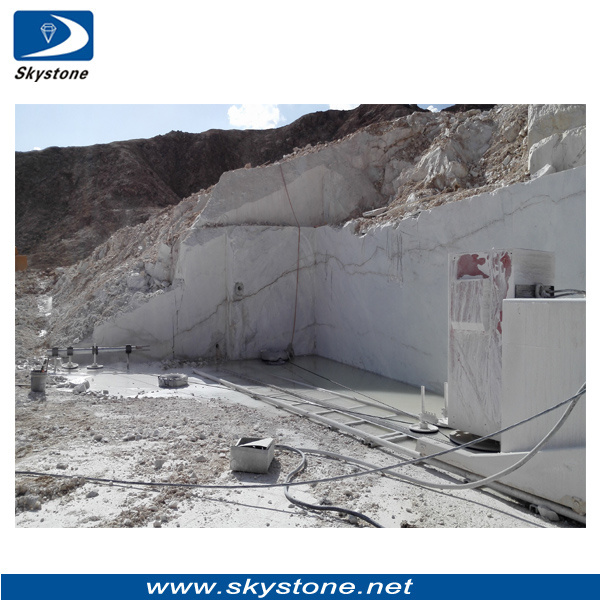

Technical Parameter(For granite and marble quarry)
Total power: 40kw
Main motor power: 37kw
Travel motor power: 0.75kw
Rotary cutting head motor power: 1.5kw
Shifting cutting head motor power: 0.75kw
Cutting head rotation: 360
Cutting head shifting distance: 480mm
Lateral movement of cutting head: 1800mm
Length of rails: 2m or 3m
Main motor rotate speed: 0-980r/min(by inverter)
Line speed of drive flywheel: 0-40m/s
The speed of machine travelling: 0-120m/h(by inverter)
Allowable variations in working temperature: -15C to +40C
Power supply requirements: AC380+_10%@50Hz
Dimension of the machine: L=1925, W=1240, H=1430
Weight: 2.1T
Main motor power | 37-55-75kw |
| Total power | 40-58.75-78.75kw |
| Wire tension and cutting current | automatic controled by PLC and inveter |
| Diameter main flywheel | 800mm |
| Lateral movement of cutting head | 1.8 or 2 m |
| Cutting head rotation | 360 |
| Linear wire speed | 0-40 m/s |
| length of rails | 3m*3 |
| Traveling speed | 0-150m/h |
| Workind condition | humidity < 95% (without dew) |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
