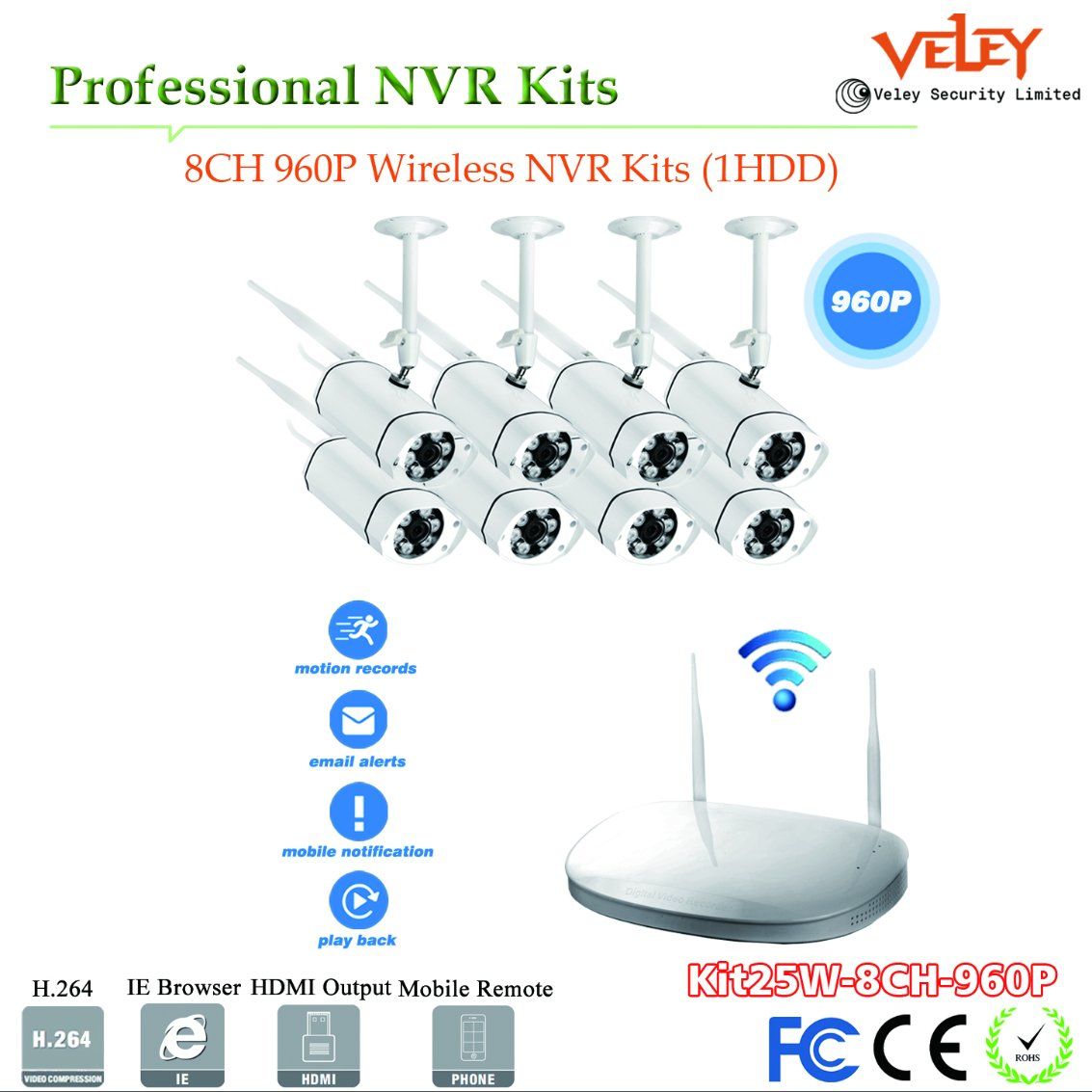

Quick Installation 8CH WiFi Camera Wireless NVR Kits Home Security
| Price: |
US $ 200-220/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Kit25W-8CH-960P |
| Network Interface: |
1 RJ45 10m/100m,2 WiFi Connector |
| Video Resolution: |
8CH D1/960h720p/960p/1080P |
| USB Interface: |
1 USB2.0 |
| SATA: |
1 SATA Interfaces |
| Size: |
258*210*42mm |
| Weight: |
6kg/Set (Without HDD) |
Product Description
Features:1. this Wireless Security Camera System (NVR)Built-in HI3520D Processor and Embedded Linux Operating System,high-performance and high stability
2. The NVR recorder automatic connection with IP camera by wifi, without any complicated settings and save installation cost
3. Plug and play, QR code,mobile phone app (iPhone, Android smartphones) are included, very easy remote network surveillance
4. Free DDNS :www.e-seenet.com,http://www.dvr163.com/ no need DDNS setting,PC remote
5 Support video preview/recording/playback/backup
6. recording what happen when Motion Detection,can palyback the video recorder on your phone This is a new HD Wireless Security Camera System, using the latest high performance HI3520D and HI3518 chip ,Wireless camera with 1/3" 1.3 megapixel CMOS sensor and P2P remote solution without any complicated settings, very easy to use anytime & anywhere with your mobile devices(smartphones, tablet PCs, laptops) for remote network monitoring. It is IP66 waterproof and it can be used in various kinds of surveillance scenes, such as home, office, supermarket, garden, etc.Inner Included:1 x 8-Channel 1080P NVR
8 x 960P Bullet IP Cameras
8 x Power Supply (12V-1000mA) for Cameras
1 x Power Supply (12V-2000mA) for NVR
1 x 3.3 Feet Network Cable
1 x Mouse
1 x Screw Bag
1 x User Manual
Carton Size:35*35*30cm,Weight:about 4KG | 1080P Wireless NVR Specification |
| system | HI3520D Processor and Embedded Linux Operating System |
| Video input | 8ch D1/960H720P/960P/1080P |
| HDMI Output | 1ch,Resolution:1024x768, 1280x1024,1366x768, 1440x900, 1920x1080 |
| VGA Output | 1ch,Resolution:1024x768, 1280x1024,1366x768, 1440x900, 1920x1080 |
| Resolution | D1/960H/720P/960P/1080P |
| Playback | 8ch |
| Recording | Manual,time,motion dection,alarm |
| Storage | 1 SATA |
| Storage capacity | (MAX) 4TB for each HDD |
| Network interface | 1 RJ45 10M/100M,2 WIFI connector |
| USB interface | 1 USB2.0 |
| Power consumption | ≤5W |
| Power | DC12V |
| working temperature | -10ºC--+55ºC |
| Dimension(mm) | 258*210*42mm |
| Working humidity | 10%--90%RH |
| 8*960P Camera Specification |
| Technical Parameters | Model | 960P IP Camera |
| Sensor | 1/4"HI3518 Progressive Scan Sensor |
| Signal System | PAL/NTSC |
| Resolution | 1280 * 960 16 : 9 High Defination |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux |
| Shutter | 1/25s to 1/25,000s |
| Lens | 3.6mm |
| OSD | Date Time & Title |
| White Balance | Auto |
| Day&Night | Auto / Color / BW 6pcs Array LED |
| 3D-DNR | Auto |
| Mirror/Flip | On / Off |
| smart stream | Dual-stream:
1280x960@15fps
640x360@15fps |
| S/N | > 39.1 Db |
| Interface | RJ45 / WIFI 802.11b/g/n |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10ºC to +50ºC / 30% to 80% RH |
| Working Temperature/Humidity | -20ºC to +60ºC / 20% to 90% RH |
| Power Input | DC12V-1A |
| Power consumption | ≤6W |
| Size | 66*180mm |
| Weight | 500g |
| Level of Protection | IP66 |
Veley Security is a professional CCTV products manufacturer, integrated designing-producing-selling different CCD AHD cameras, HD IP cameras, DVRs and NVRs recorder in China.
We have high quality management team, R&D department and more than 150 skillful workers in a workplace of approximately. 16000 sq. M. We insist on quality first. Product quality are guaranteed by perfect processing, testing and ageing treatment.
Veley products are mainly exported to Europe\America\Southeast Asia\Middle East\Australia and South Africa international market. Our Main products are including HD 4-IN-1 AHD cameras, Starligth AHD camerasH. 265/H. 264 IP camera, 5-in-1 XVRs and H. 265/H. 264 4-8-16-24-32CH-128CH NVRs.
All of our products are approval with CE, FCC, RoHS. We constantly design and develop new products to meet home and international market. VELEY provides satisfying OEM&ODM service for customers around the world and establishes long-term partnership with our clients.
