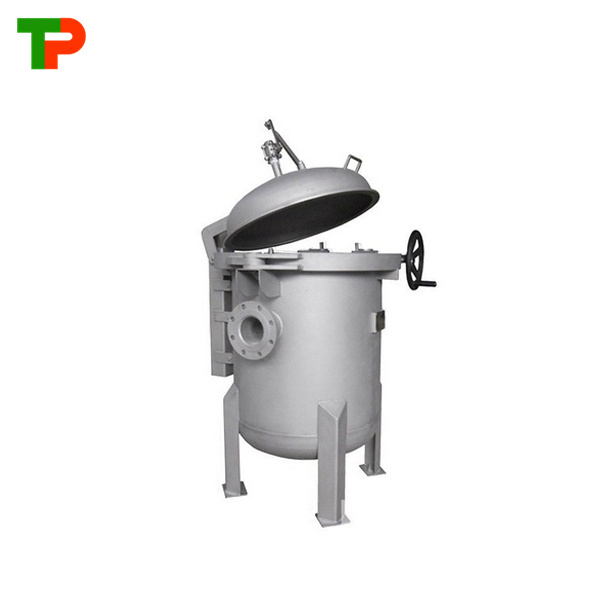

Quick-Opening Multi-Bag Water Filter
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Usage: |
Chemical Industry |
| Motive Force: |
Pressure |
| Type: |
Industrial Filter |
| Certification: |
ISO9001 |
Product Description

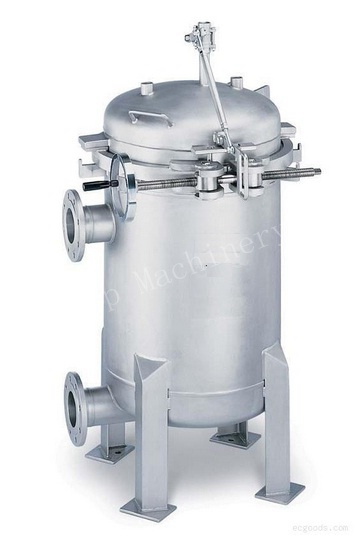

TPBQ Series quick-opening multi-bag filter Product IntroductionTPBQseries quick-open multi-bag filter(TPBQ filter for short)is particularly designed for end users caring about the operation efficience, safety and durability. It is very suitable for the filtration of high contaminant liquid, frequent filter bag change-out applications, or 24 hour continuous production which requires quick filter switching and cleaning. TPBQfilter is an excellent solution to greatly improve the filtration operation efficiency. It makes the filter change-out quicker and greatly reduces the labour intensity.
Main Features
- V-shape heavy duty quick-open clamp cover
- Open and close the filter within 20 seconds, change the filter bags immediately.
- Operate at the still position, no need to walk around the filter and fasten bolts and nuts symmetrically
- Interlock safety design makes sure the filter opened only after vented and pressure relieved
- Weight balance device allows the cover ti be stopped at any possible opening angle with on finger
- Open the cover vertically, save the footprint and installation cost
- Special wrench tool for easy bag fixing and change-out
- Shortest filter offline time and, improve the production and reduce the operation cost
- Quality o-ring elastomer rubber, good sealing and long service life
- Made of quality stainless steel 304 and 316L, good chemical corrosion resistance
- Five types of inlet and outlet layout optional for easy pipeline design and installatio
| Model | TPBQ2 | TPBQ3 | TPBQ4 | TPBQ6 | TPBQ8 | TPBQ12 |
Design pressure
MPa | 1.0 | 1.0 | 1.0 | 1.0 | 0.7 | 0.7 |
Design temperatureºC
| 0-250 |
Filter bag size
Mm | Φ178x813/Φ178x720 |
flowrate
M3/h | 48 | 72 | 96 | 144 | 192 | 288 |
| Filter bag quantity | 2 | 3 | 4 | 6 | 8 | 12 |
Filter area
m2 | 1./2 | 1.5/3 | 2/4 | 3/6 | 4/8 | 6/12 |
Filter Rating
μm | 1-2000 |
| Housing material | 304/316L |
| Seal material | NBR/EPDM/VITO/PTFE |
| Stand connecting | flange |
| Inlet/outlet | DN80/100 | DN100/125 | DN100/125 | DN125/150 | DN150/200 | DN200/250 |
note:
1.the design temperature is also determined by the seal material and the filter bag material
2.the typical flow rate for the clean filter at 10 micron, consider the filtration degree, viscosity and contaminant content when filtering the different liquid.
|
Top Industry (Chengdu) Co., Ltd., established in 2002, is located in Chengdu, Sichuan Province, China, which passed the ISO9000 in 2008, As mother company, invested and joint venture 5 companies to be TOP GROUP, Kono Machinery (Changzhou) Co., Ltd, Yucheng(Chengdu) Machinery Co., Ltd, Dahua(Kunshan) Machinery Co., Ltd., Nantong Ruiya Co., Ltd. And Sente (Suzhou) Machinery Co., Ltd. Our TOP Group are very professional manufacturers being engaged in for the turn-key project for the complete equipment of wood based panel. Our main machinery is particle board production line, MDF production line, and auxiliary equipment, secondary processing equipment matched with the PB and MDF production line.
We can provide our customer a complete of wood based panel project turn-key engineering service, including project consultation, feasibility analysis, process design, equipment manufacturing, machinery installation and commissioning and workers training, etc. After over decade of development, we focus on the research and development the high-tech & complete set machinery product, which have exported to Russian, Italy, Romania, Slovakia, Serbia, Iran, Vietnam, India, Africa, Canadian, USA and other countries.
We also have our representative offices overseas for providing after-sale service, such as in Slovakia, Romania, Iran, Vietnam, Canada, Brazil and India. Our idea is"The Customer is the first"It means"saving money for our customer, providing high-quality machinery/products for our customer, five star service for our customer. '
Kono Machinery (Changzhou) Co., Ltd is specialized in manufacturing economical short cycle pressing machines for furniture and flooring industry, providing various sizes of press, such as 4*8 feet, 6*8 feet, 6*9 feet, 6*12 feet, 7*9 feet and so on.
Yucheng(Chengdu) Machinery Co., Ltd is focus on the manufacturing of 4*8 feet particle board production line equipment.
Dahua(Kunshan) Machinery Co., Ltd. is engaged in the manufacturing of large-format particle board and MDF production line equipment, such as 6*8 feet, 6*9 feet, 6*12 feet, 7*9 feet and so on.
Nantong Ruiya Co., Ltd. is specialized in the manufacturing of impregnation line equipment for furniture, laminate flooring and HPL industry, including one- step and two-step impregnation line, the width varies from 4 feet to 8 feet.
Sente (Suzhou) Machinery Co., Ltd. is mainly engaged in the manufacturing of automatic short cycle press line and HPL press production line for furniture, flooring and decoration industry, providing various sizes according to customer requirements, such as 4*8 feet, 6*8 feet, 6*9 feet, 6*12 feet, 7*9 feet and so on.
Our TOP Group is looking forward to your visitation!
