Raw Synthetic Diamond

Name: Raw Synthetic Diamond
Brand: tool-buy.com
SKU: 814936845
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 2-260carat
Min Order:	5carat
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Chenguang Machinery & Electric Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	cs
Name:	6mm Large Size Mono Crystal Diamond for Dresser Cu
Diamond Size:	1.0mm-6mm
Color:	Fancy Yellow Dark Yellow Diamond
Diamond Type:	Hpht Diamond Synthetic Diamond Man Made Diamond
Classification Of Diamond:	Man Made Diamond
Synthesis Of Cubic Boron Nitride Method:	High Pressure High Temperature

Product Description

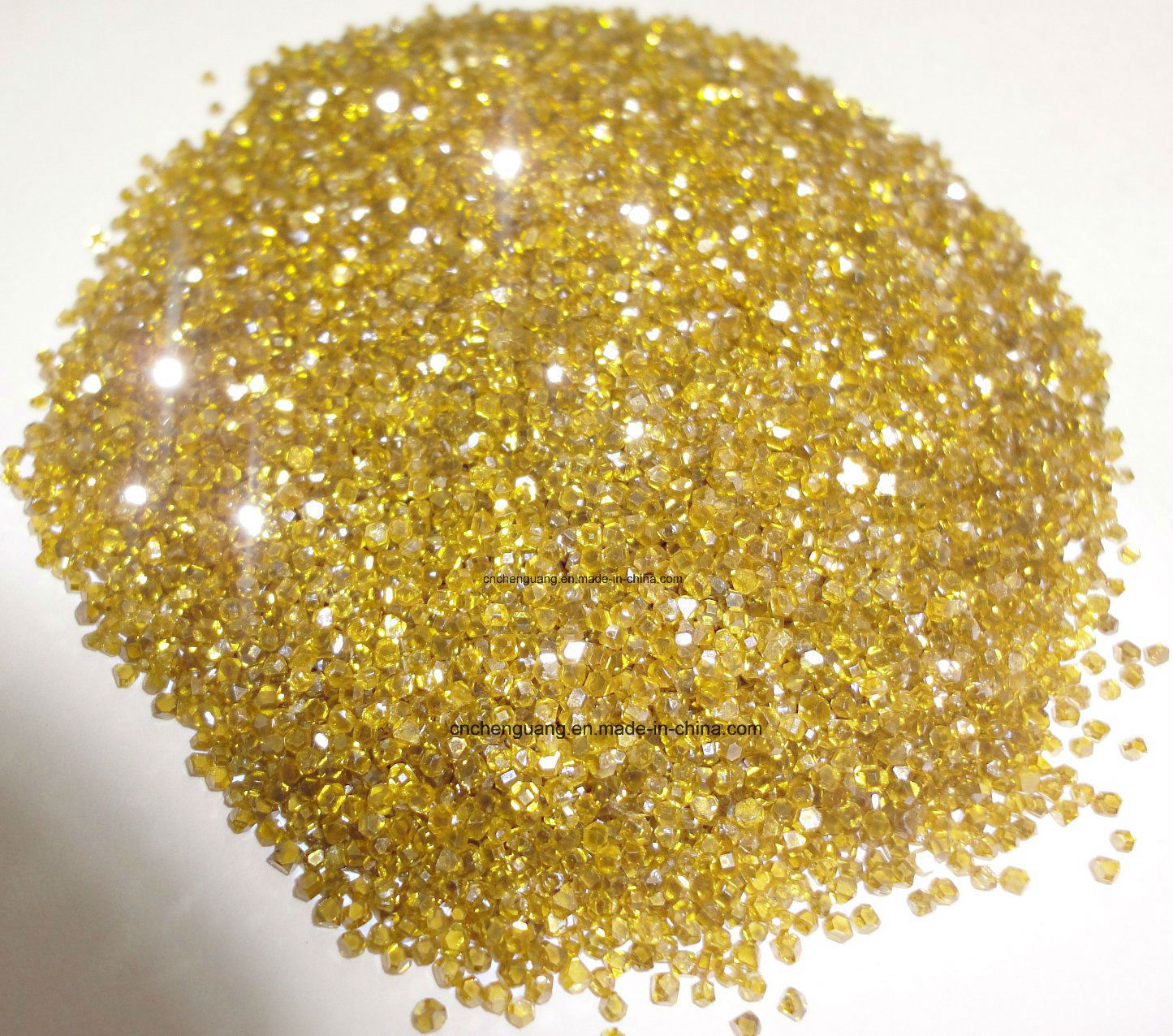

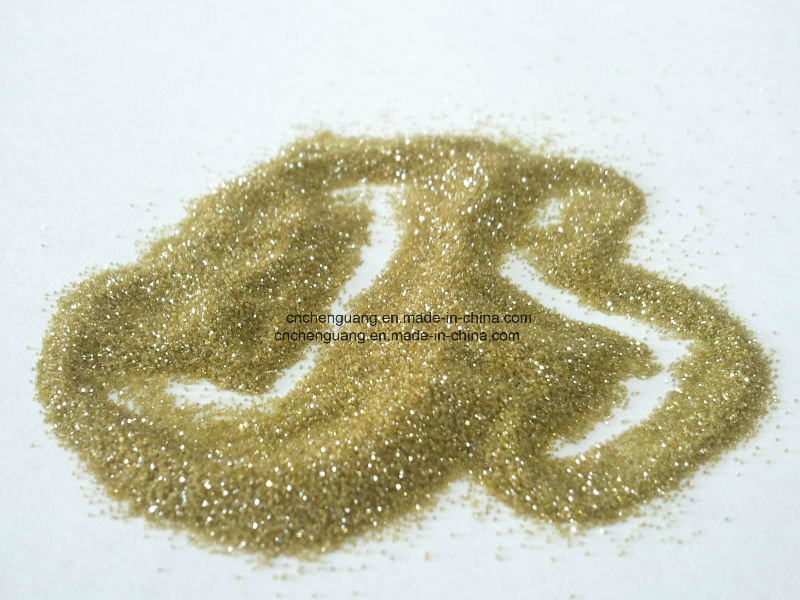

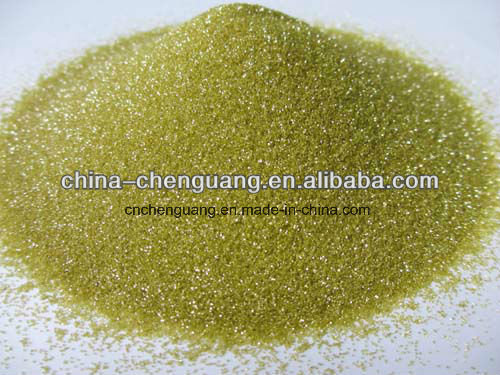

1.Sythetic diamond grit :

16/18(D1180),18/20 (D1001),20/25 (D851),25/30 (D711),30/35 (D601),35/40 (D501)
40/45 (D425), 45/50 (D356), 50/60 (D301), 60/70 (D251),70/80 (D213), 80/100 (D181)
100/120 (D151),120/140 (D126),140/170 (D107),170/200 (D91),200/230 (D76)
230/270 (D64),270/325 (D54), 325/400 (D46)

2.RVD diamond crushing material:

100/120 230/270
120/140 270/325
140/170 325/400
170/200 400/500
200/230 500/600

3.Diamond micro powder:

For polishing: 0-0.5,0-1,0.5-1,0.5-1.5,0-2, 1-2,1-3,2-4,2.5-5,3-6
For Lapping ; 4-8, 5-10,6-12,8-16,10-20
For Grinding : 12-22, 20-30,22-36, 36-54

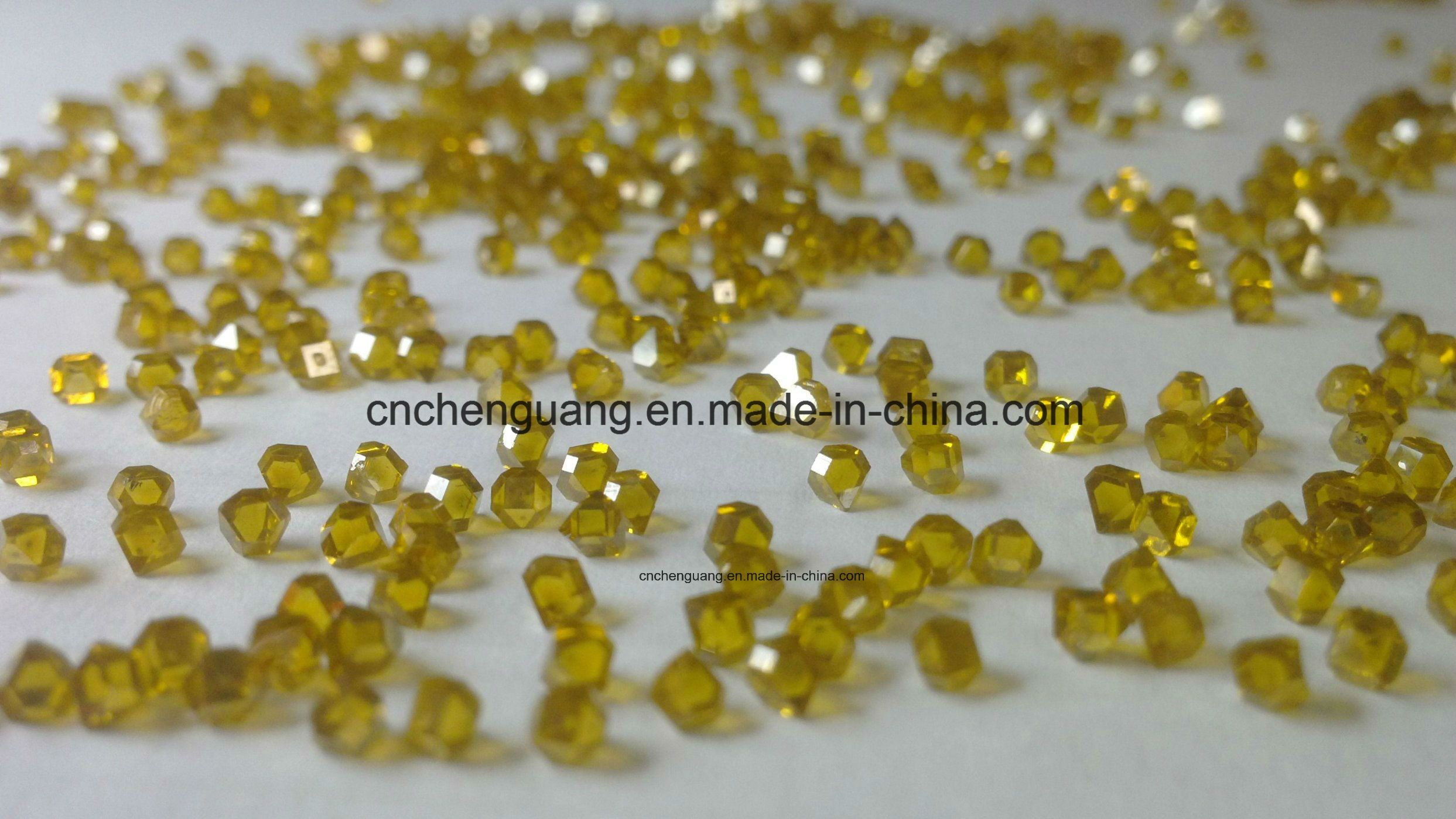

4. Larger size synthetic diamonf for tools, jewellery 1mm-5mm:
crystals : 1mm to 3mm,

plates : 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm

Our grade of synthetic industrial diamond

JSSD/JSMD/JSBD 9907

1. Complete cubo-octahedron, regular crystal shape,

2. Nearly no impurities,

3. Good shock resistance and thermal stability.

4. The difference between TI and TTI within two points, and the wear resistance have reached the same level as the corresponding products of international leading company.

Applied to high quality cutting tool, high quality geological drill, engineering drill, wire saw and electroplated abrasive wheel to process the express train spare parts.

JSSD/JSMD/JSBD 9908

1. Shape is complete and regular cubo-octahedron

2. High purity

3. Very high strength, toughness , thermal stability and very high impact resistance;

Applied to make tools for sawing hard stone, such as wire saw, stripe saw, gang saw, large saw blade etc. For all kinds of concrete, geological drilling, engineering drilling, and all varieties of diamond dressing tools application as well.

JSSD/JSMD/JSBD 9909

1. Shape is mainly cubo-octahedron and complete,

2. Medium strength.

Applied to making resin bond or metal bond tools to cut, drill, grind and polish non-ferrous materials like refractory, concrete, glass,

Chenguang machinery & Electric Equipment Co. Ltd specialized in development, production, and marketing of ultra-hard materials.

We started to provide high quality synthetic diamond to domestic diamond tool manufacturers since1993. We utilize a wide range of advanced production equipment and test instrumentation in an environment using strict quality control procedures for all our products. As a diamond supplier; We provide a wide range of diamond products and solutions for many well-known Chinese enterprises. Among these enterprises are more than 20 well-known enterprises who have enjoyed at least 10 years with us; We are proud to mention that our products are routinely exported worldwide since 2010, the stable quality and professional service is well appraised by huge users.

Our main superhard matierial products include: Synthetic diamond, Diamond saw blade, Diamond Drill bit, welcome friends from home and abroad to cooperate with us and create a brilliant future.
