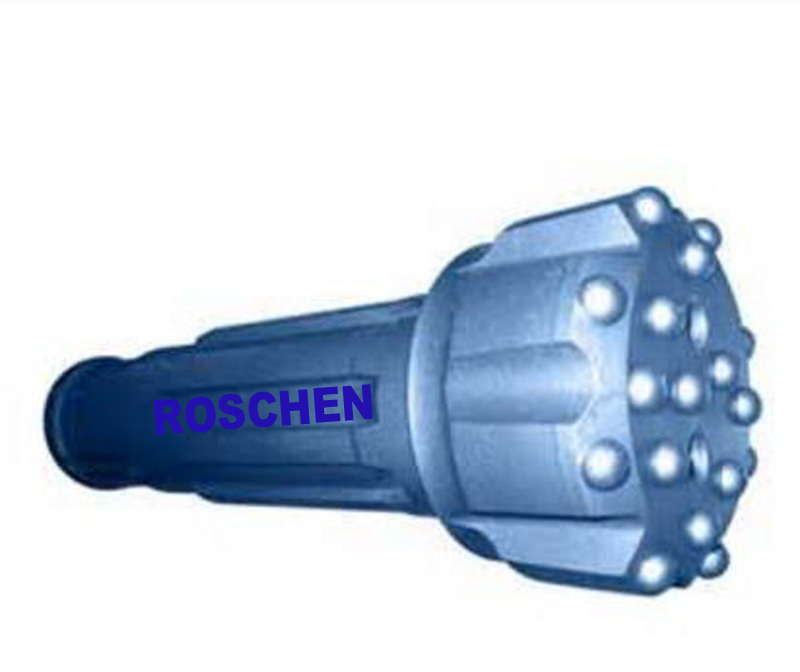

RC Drill Bits

Prod Model:	RC40
Name:	Rerverse Circulation Hammer Bits
Model:	Rerverse Circulation Drilling
Use:	Ore Mining, Geothermal, Water Well Drilling
Application:	Coal Mining, Ore Mining, Mineral Core Drilling
Thread Connection:	Remet and Metzke Thread Available
Size:	3", 3.5", 4", 4.5", 5", 6", 8", 10", 12"
Machine:	Hydraulic Crawler Drill Rig
Materials:	High Carbon Steel
Style:	Air Hammer Bit
Tools:	Reverse Circulation Hammer Bits

Product Description

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).

We have rich experience in this field of DTH hammers and bits for 60 years.

Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.





Product specifications: RE004 RC Bits

Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight(kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
114	4 1/2	8x14	6x14	35	2	112	11.5	RE004-114
118	4 5/8	8x14	6x14	35	2	116	11.7	RE004-118
121	4 3/4	8x14	6x14	35	2	119	12	RE004-121
127	5	8x14	8x14	35	2	125	12.4	RE004-127

Other ROSCHEN RC hammer bit technical data:

ROSCHEN Reverse Circulation Bits Specifications
RE531 RC bits
ROSCHEN Code:   ROS RC 30
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
86	3 3/8	6x12	4x12	35	2	84	4.2	RE531-86
89	3 1/2	8x12	8x12	35	2	87	4.3	RE531-89
95	3 3/4	8x12	8x12	35	2	93	4.6	RE531-95
102	4	8x12	8x12	35	2	100	4.9	RE531-102
RE004 RC bits
ROSCHEN Code:   ROS RC 40
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
114	4 1/2	8x14	6x14	35	2	112	11.5	RE004-114
118	4 5/8	8x14	6x14	35	2	116	11.7	RE004-118
121	4 3/4	8x14	6x14	35	2	119	12	RE004-121
127	5	8x14	8x14	35	2	125	12.4	RE004-127
RE542
ROSCHEN Code:   ROS RC 50
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
121	4 3/4	8x14	6x14	35	2	119	10.6	RE542-121
124	4 7/8	8x14	8x13	35	2	122	10.8	RE542-124
127	5	8x14	8x14	35	2	125	11	RE542-127
130	5 1/8	8x14	10x14	35	2	128	11.3	RE542-130
RE543
ROSCHEN Code:   ROS RC 50
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
124	4 7/8	8x14	8X13	35	2	122	10.8	RE543-124
127	5	8x14	8X14	35	2	125	11	RE543-127
130	5 1/8	8x14	10X14	35	2	128	11.3	RE543-130
133	5 1/4	8x16	10X14	35	2	131	11.8	RE543-133
RE545
ROSCHEN Code:   ROS RC 50
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
124	4 7/8	8x14	8X13	35	2	122	13.3	RE545-124
127	5	8x14	8X14	35	2	125	13.5	RE545-127
133	5 1/4	8x16	10X14	35	2	131	13.8	RE545-133
136	5 3/8	8x16	6x16+3x14	35	2	134	14.2	RE545-136
PR40 RC bit
ROSCHEN Code:   ROS RC 50
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
124	4 7/8	8x14	8X13	35	2	122	14.3	PR40-124
127	5	8x14	8X14	35	2	125	14.7	PR40-127
133	5 1/4	8x16	10X14	35	2	131	15.2	PR40-133
138	5 4/9	8x16	6x16+3x14	35	2	136	15.8	PR40-138
PR52 RC bit
ROSCHEN Code:   ROS RC 55
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
133	5 1/4	8x16	10x14	35	2	131	11.2	PR52-133
136	5 3/8	8x16	6x16+3x14	35	2	134	11.5	PR52-136
140	5 1/2	8x16	6x16+3x14	35	2	138	11.9	PR52-140
143	5 5/8	8x16	6x16+3x14	35	2	141	12.3	PR52-143
RE547 RC bit
ROSCHEN Code:   ROS RC 55
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
136	5 3/8	8x16	6x16+3x14	35	2	134	15.1	RE547-136
140	5 1/2	8x16	6x16+3x14	35	2	138	15.5	RE547-140
143	5 5/8	8x16	6x16+3x14	35	2	141	15.8	RE547-143
146	5 3/4	8x16	6x16+3x14	35	2	144	16.3	RE547-146
PR54
ROSCHEN Code:   ROS RC 55
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
136	5 3/8	8x16	6x16+3x14	35	2	134	18.2	PR54-136
140	5 1/2	8x16	6x16+3x14	35	2	138	18.5	PR54-140
143	5 5/8	8x16	6x16+3x14	35	2	141	18.8	PR54-143
146	5 3/4	8x16	6x16+3x14	35	2	144	19.2	PR54-146
Notes:
Metzke, Remet thread is available!
Any special size of Reverse Circulation bits will be available by requests.

Shank can be available:

Specification:
1). 4'' RC Bits:Diameter (104mm-127mm); Shank type: RE004/RE004R;
RE542
2). 5'' RC Bits:Diameter(113mm-146mm) ; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
3). 6'' RC Bits: Diameter(152-190mm); Shank type: RC62/RC62R;
4). 8'' RC Bits: Diameter(190-250mm); Shank type: RC82/RC82R;
5). 10'' RC Bits: Diameter(250-370mm); Shank type: RC100/RC100R.
Other size can be upon to customer's requirements




We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

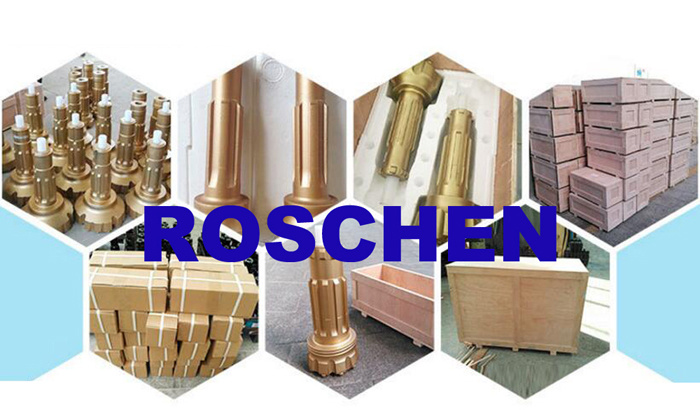

Product photos



Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.


Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.



Production time:

Generally need 15-25 days


Transportation:
By air, By Express or By sea according to your requests.










FAQ


Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
