| Price: | US $ 180-1500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | FY-RC |
|---|---|
| Max Pressure: | 700bar |
| Stroke: | 16-362mm |
| Color: | Yellow |
| Capacity: | 5-100ton |
| Weight: | 1.0-72.6kg |
| Product Name: | RC Series Single Acting Hydraulic Cylinder |
| Maximum Stroke: | 362mm |
| Certificate: | Ce, ISO9001:2008 |
| Effective Area(Cm2): | 6.5-133.3 |
| Shaft Diameter: | 25.4mm-104.9mm |
| Material: | Steel |
| Structure: | Piston Cylinder |
| Power: | Hydraulic |
| Standard: | Standard |
| Pressure Direction: | Single-acting Cylinder |
| Usage: | Lifting, Supporting and Jacking |

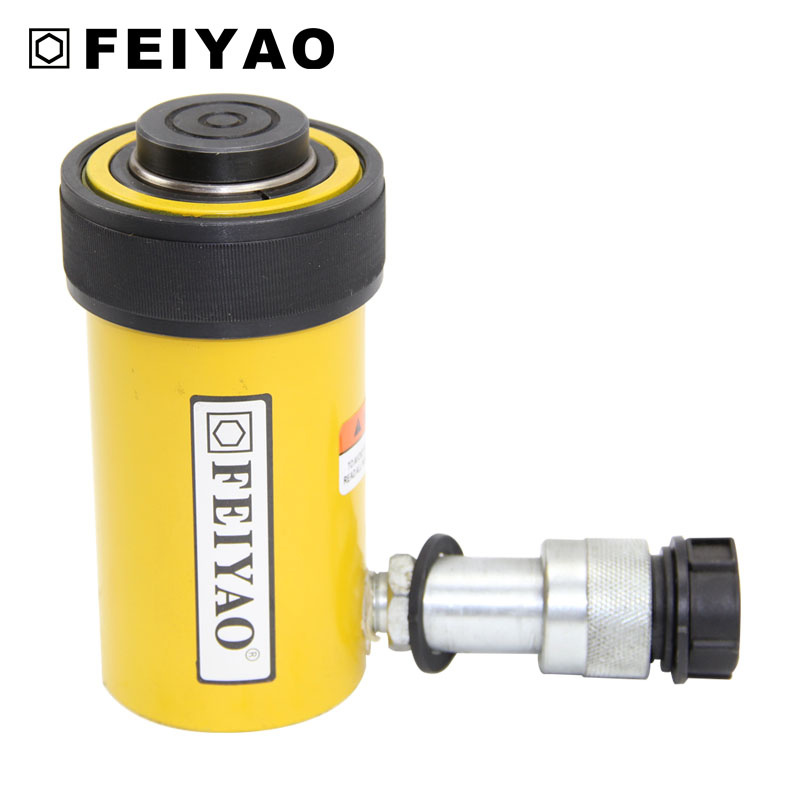

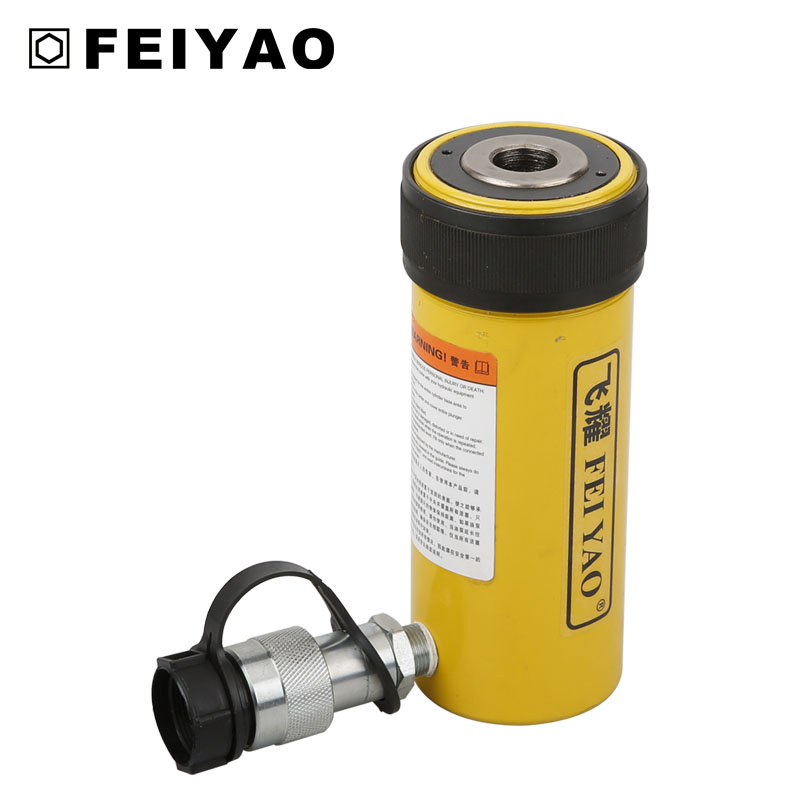

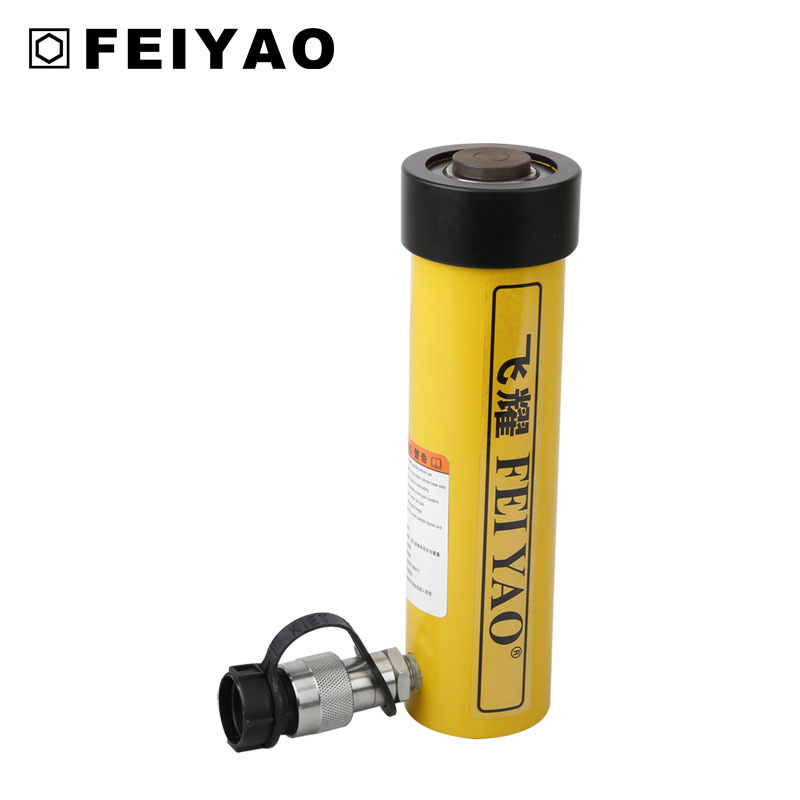

RC series single acting hydraulic cylinder
Features:
1. Heavy-duty return spring for last retraction
2. External access to fasteners requires only standard shop tools for simplified maintenance
3. Plunger wiper reduces contamination, extending cylinder life
4. Base and plunger made from high-strengh alloy steel for durability
5. Collar threads, plunger threads and base mounting holes enable easy fixturing on most models
6. Baked enamel finish for increased corrosion resistance
7. Design allows cylinder to be used in all positions
8. CR-400 coupler and dust cap included on all models
Parameter information
| Model Number | Capacity @ 700bar | Stroke | Effective Area | Oil Capacity | Collapsed Height | Out Diameter | Weight |
| ton(KN) | mm | cm2 | cm3 | mm | mm | kg | |
| FY-RC-50 | 5(45) | 16 | 6.5 | 10 | 41 | 59 | 1.0 |
| FY-RC-51 | 25 | 6.5 | 16 | 110 | 38 | 1.0 | |
| FY-RC-53 | 76 | 6.5 | 49 | 165 | 38 | 1.5 | |
| FY-RC-55 | 127 | 6.5 | 81 | 216 | 38 | 1.9 | |
| FY-RC-57 | 178 | 6.5 | 114 | 273 | 38 | 2.4 | |
| FY-RC-59 | 232 | 6.5 | 148 | 324 | 38 | 2.8 | |
| FY-RC-101 | 10(101) | 25 | 14.5 | 36 | 90 | 57 | 1.8 |
| FY-RC-102 | 54 | 14.5 | 78 | 121 | 57 | 2.3 | |
| FY-RC-104 | 105 | 14.5 | 151 | 171 | 57 | 3.3 | |
| FY-RC-106 | 156 | 14.5 | 225 | 248 | 57 | 4.4 | |
| FY-RC-108 | 203 | 14.5 | 292 | 298 | 57 | 5.4 | |
| FY-RC-1010 | 257 | 14.5 | 370 | 349 | 57 | 6.4 | |
| FY-RC-1012 | 305 | 14.5 | 439 | 400 | 57 | 6.8 | |
| FY-RC-1014 | 356 | 14.5 | 513 | 451 | 57 | 8.2 | |
| FY-RC-151 | 15(142) | 25 | 20.3 | 51 | 124 | 70 | 3.3 |
| FY-RC-152 | 51 | 20.3 | 104 | 149 | 70 | 4.1 | |
| FY-RC-154 | 102 | 20.3 | 207 | 200 | 70 | 5.0 | |
| FY-RC-156 | 152 | 20.3 | 309 | 272 | 70 | 6.8 | |
| FY-RC-158 | 203 | 20.3 | 412 | 322 | 70 | 8.2 | |
| FY-RC-1510 | 254 | 20.3 | 516 | 373 | 70 | 9.5 | |
| FY-RC-1512 | 305 | 20.3 | 619 | 424 | 70 | 10.9 | |
| FY-RC-1514 | 356 | 20.3 | 723 | 475 | 70 | 11.8 | |
| FY-RC-251 | 25(232) | 25 | 33.2 | 83 | 140 | 86 | 5.9 |
| FY-RC-252 | 51 | 33.2 | 169 | 165 | 86 | 6.4 | |
| FY-RC-254 | 102 | 33.2 | 339 | 216 | 86 | 8.2 | |
| FY-RC-256 | 159 | 33.2 | 528 | 273 | 86 | 10.0 | |
| FY-RC-258 | 210 | 33.2 | 697 | 324 | 86 | 12.3 | |
| FY-RC-2510 | 260 | 33.2 | 863 | 375 | 86 | 14.1 | |
| FY-RC-2512 | 311 | 33.2 | 1033 | 425 | 86 | 16.3 | |
| FY-RC-2514 | 362 | 33.2 | 1202 | 476 | 86 | 17.7 | |
| FY-RC-308 | 30(295) | 210 | 42.1 | 880 | 387 | 102 | 18.1 |
| FY-RC-502 | 50(498) | 51 | 71.2 | 364 | 176 | 127 | 15.0 |
| FY-RC-504 | 102 | 71.2 | 727 | 227 | 127 | 19.1 | |
| FY-RC-506 | 159 | 71.2 | 1134 | 283 | 127 | 23.2 | |
| FY-RC-5013 | 337 | 71.2 | 2403 | 461 | 127 | 37.7 | |
| FY-RC-756 | 75(718) | 156 | 102.6 | 1601 | 286 | 146 | 29.5 |
| FY-RC-7513 | 334 | 102.6 | 3427 | 492 | 146 | 59.0 | |
| FY-RC-1006 | 100(933) | 168 | 133.3 | 2239 | 357 | 178 | 59 |
| FY-RC-10010 | 260 | 133.3 | 3466 | 449 | 178 | 72.6 |
Brief introduction of FEIYAO

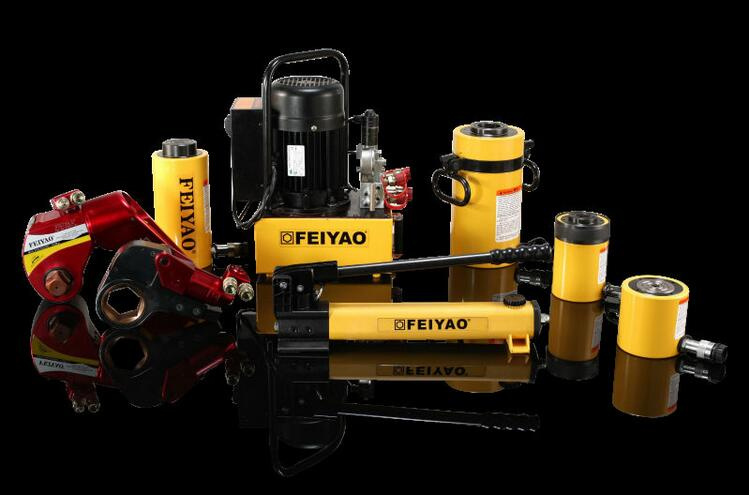

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.

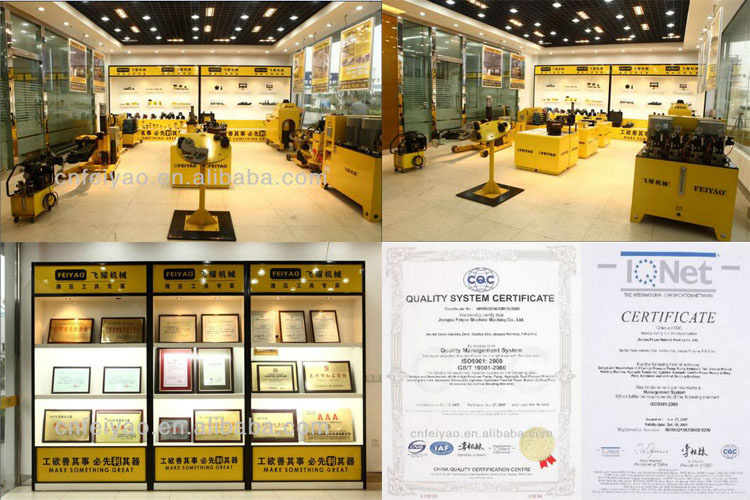

Showroom & Certification

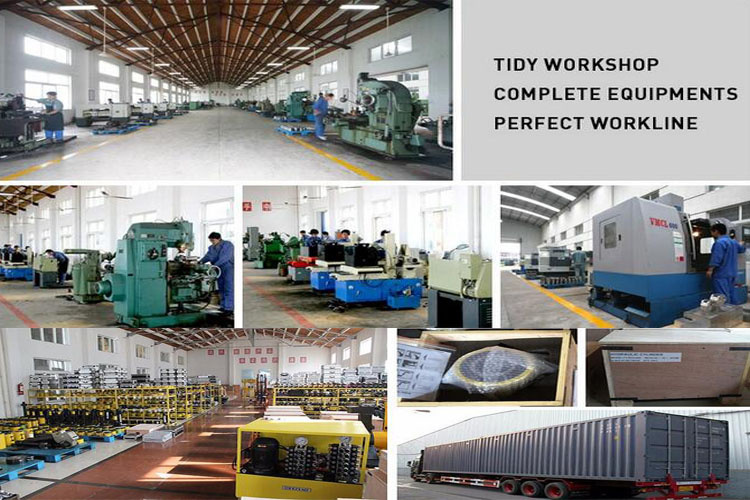

Factory Show & Packaging&shipping
Quality Control & warehouse
For more information please visit our website:www.fyhydraulic.cn
We are professional manufacturer, offer you competitive price.
If you have any questions about these products , please contact us ,we will try our best to help you !
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
Packaging Details
1. Outside packaging: standard export wooden packing;
2. Inner packaging: stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: by sea transportation. Goods will arrive in 30~45 days, according to the diatance.

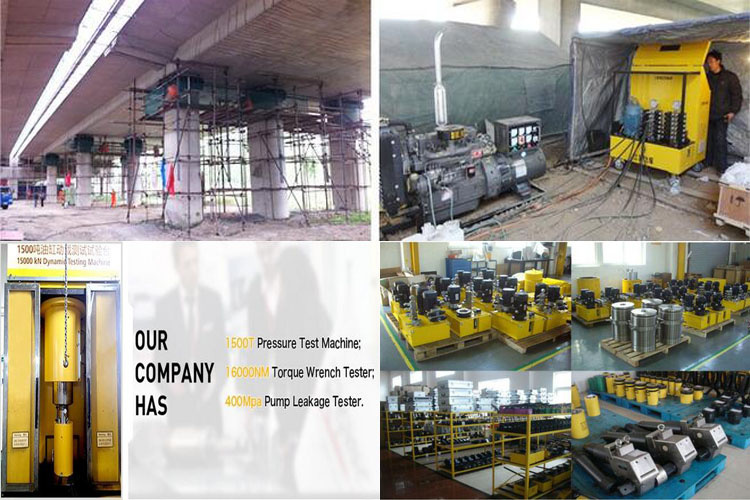

Product Application
