Product Description

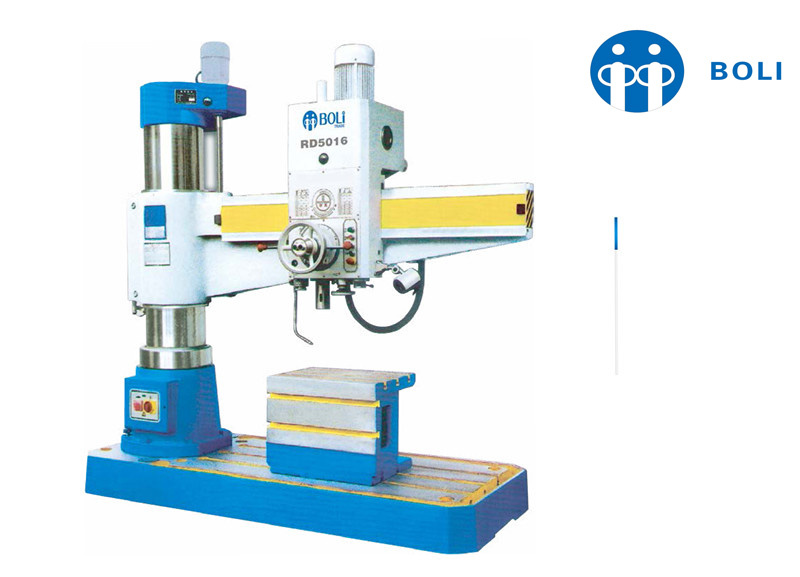

RD3210/RD4010/RD5016/RD5020/RD6320/RD8025 Radial Drilling Machine
· Protection design for limitary satety is utilized in all transmission section.
· All controls centralized on the headstock for easy operation and change.
· Main parts are made by machine center with high precison and efficiency.
· Integrating technology for casting parts is excellent, ensuring high quality of material for basic parts.
· Spindle parts are made by special high quality steel, heat treatment to be made by first class equipments,ensuring high strength and durabililty.
· Ground gears inside, ensuring high precision and low noise.
Standard Accessories:
> Rise block
> Taper sleeve
> Tool releasing wrench
> Drift
> Eyelet bolts
> Box work table
Optional Accessories:
> Quick instead chuck
> Tapping chuck
> Angle work table
Technical Parameters:
| Model No. | Unit | RD3210/RD4010 | RD5016/RD5020 | RD6320 | RD8025 |
| max. drilling capacity | mm | 32/40(1.26"/1.57") | 50(1.97") | 63(2.48") | 80(3.15") |
| distance from spindle to column | mm | 300~1000(11.81"~39.37") | 350~1600/350~2000(13.78"~63.00"/13.78"~78.74") | 450~2050(17.72"~80.71") | 500~2050(19.69"~80.71") |
| diameter of column | mm | 240(9.45") | 350(13.78") | 450(17.72") | 550(21.65") |
| spindle taper | | MT4 | MT5 | MT5 | MT6 |
| spindle travel | mm | 280(11.02") | 315(12.40") | 400(15.75") | 450(17.72") |
| spindle speed range | mm | 32~2500(1.26"~98.43") | 25~2000(0.98"~78.74") | 200~1600(7.87"~63.00") | 16~1250(0.63"~49.21") |
| spindle speed steps | steps | 16 | 16 | 16 | 16 |
| range of spindle feed | mm | 0.10~1.25 | 0.04~3.2 | 0.04~3.2 | 0.04~3.2 |
| step of spindle speed | steps | 8 | 16 | 16 | 16 |
| distance from spindle nose to table | mm | 220~1000(8.66"~39.37") | 320~1220(12.60"~48.03") | 400~1600(15.75"~63.00") | 550~2000(21.65"~78.74") |
| dimension of worktable | mm | 600×450×450(23.62"×17.72"×17.72") | 630×500×500(24.80"×19.69"×19.69") | 950×630×500(37.40"×24.80"×17.72") | 1000×800×560(39.37"×31.50"×22.04") |
| dimension of base | mm | 1710×800×160(67.32"×31.50"×6.30") | 2400×1000×200(94.49"×39.37"×7.87") | 2900×1250×250(114.17"×49.21"×9.84") | 3530×1400×300(139.98"×55.12"×11.81") |
| packing size | mm | 1870×970×2200 | 2600×1120×2600 | 3470×1470×2350 | 4160×1650×2480/3820×1630×1700 |
| power of main motor | kw | 2.2 | 5.5 | 5.5 | 7.5 |
| N.W./G.W. | kg | 1600/2000 | 3500/3900 | 7000/8000 | 11000/15000 |
