| Prod Model: |
HLYD043 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone Cutting, Drilling, Engineering Material |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Drill |
| Diameter: |
23mm to 400mm |
Product Description

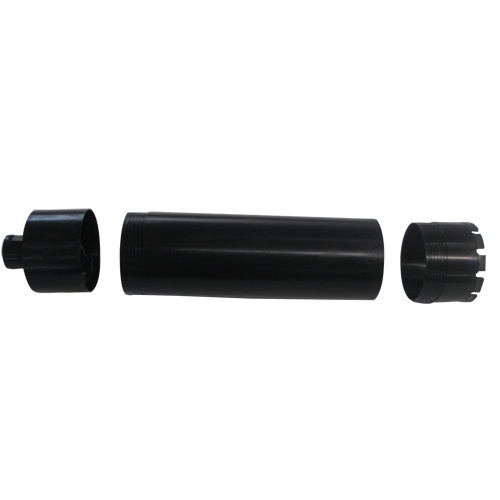

Re-tip Core Bits
Three-part core bits joined up with bit body, core barrel and adapter.
Applications: Reinforced concrete, cured concrete, concrete brick/wall/block/bridge/highway, masonry, abrasive materials, stones and refractory materials, construction and engineering industry etc;
You can purchase Bit one time and retipping it many time with only new segments.
Products characters:
Diameter: 23mm 400mm
Especially suitable for hand-operated machines
High diamond concentration
Fast drilling speed and smooth surface of coring
Stable and aggressive performance
Long working lifespan
High quality and competitive prices
Diamond core drill bits are rotary bits that are specifically designed to drill through construction material. Diamond core drill bits differ from other drill bits because they consist of a steel casing that has diamonds embedded on the cutting edge of the bit. Diamonds are one of the hardest substances known to man, and they work very well to cut through harder materials that would destroy a metal-only drill bit.
The main working parts of Diamond core drill bits - drilling segments are made of Cobalt-based formula, and superior grade diamond to match, the quality is at least twice better than normally used Iron base formula by other most producers.
Core Bits to be used with: Core Rigs
CE: ISO: 9001: 2000
MOQ: 5-10PCS
Packing: Neutral packing
Delivery time: 2-3weeks
| Diameter | Working length | Segment thickness | Segment height |
| 1" | 15" | 0.167" | 0.335" |
| 1.25" | 15" | 0.167" | 0.335" |
| 1.5" | 15" | 0.167" | 0.335" |
| 2" | 15.5" | 0.167" | 0.335" |
| 2.5" | 15.5" | 0.187" | 0.335" |
| 3" | 15.5" | 0.187" | 0.335" |
| 3.5" | 15.5" | 0.187" | 0.335" |
| 4" | 16" | 0.197" | 0.335" |
| 5" | 16.5" | 0.197" | 0.335" |
| 6" | 16.5" | 0.197" | 0.335" |
| 7" | 16.5" | 0.236" | 0.335" |
| 8" | 16.5" | 0.236" | 0.335" |
| 9" | 16.5" | 0.236" | 0.335" |
| 10" | 16.5" | 0.236" | 0.335" |
| 12" | 16.5" | 0.236" | 0.335" |
| 14" | 16.5" | 0.236" | 0.335" |
| 16" | 16.5" | 0.236" | 0.335" |
