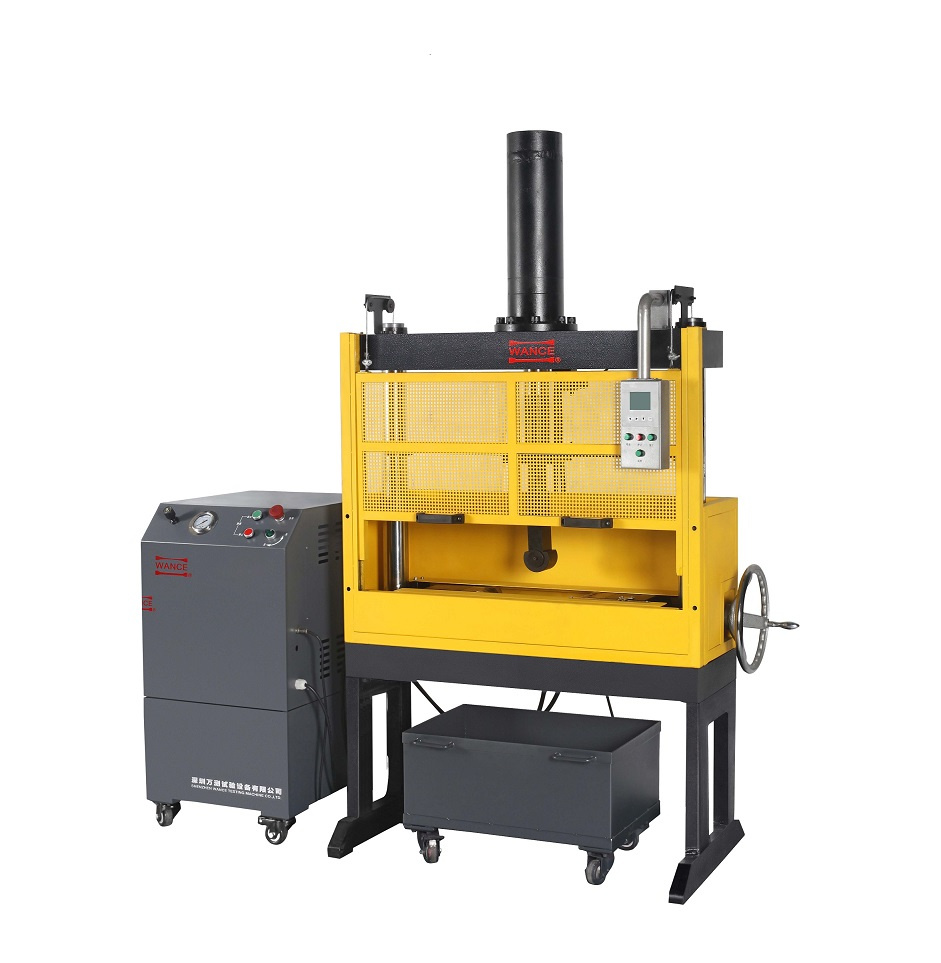

Rebar Bending Testing Machine (HBT165C) Bend Testing Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HBT165C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Pushing Force: |
160kn |
| Vertical Cylinder Max Travel: |
500mm |
| Vertical Cylinder Speed Without Specimen: |
0.5~4mm/S |
| Support Roller Diameter: |
43mm |
| Span: |
10~340mm |
| Mandrel Diameter: |
6~200mm |
| Maximum Bending Angle: |
180 Degree |
| Round Specimen Diameter: |
φ6~40mm |
| Flat Specimen Thickness: |
(6~40)*50mm |
| Type: |
Bending Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description
Rebar Bending Testing Machine (HBT165C) Bend Testing Machine This type of testing machine is designed to perform bending test on metallic materials, like rod steel, plate steel, polygonal cross-section materials and threaded steel.
Bidirectional hydraulic loading, easy to bend specimen with diameter less than 40mm to 180° .
Hand wheel drives bidirectional screw lead to adjust the support span; The support roller is self-lock; Using a wrench to lock a roll is not needed any more; Plug-in type bending indenter is simple to change.
Testing speed adjusting device, displacement device, and Speed display device, fully complying with Clause 6.3 of ISO 7438: 2005: "In case of dispute, a testing rate of (1 ± 0, 2) mm/s shall be used". It can also real-time display bending angle and facilitate for various angle tests.
Parameters| Max pushing force(KN) | 160kN |
| Master cylinder max travel(mm) | 300mm |
| Master cylinder no load pushing speed | 0.5-4mm/s(Stepless regulation)
Adjustable to 1±0.2mm/s for ISO |
| Subsidiary cylinder max force(kN) | 60kN |
| Subsidiary cylinder max travel(mm) | 30mm |
| Support roller diameter(mm) | 120mm |
| Distance between the rollers(mm) | 10-340mm(stepless) |
| Diameter of bending pressure head | 6-200mm(can be customized) |
| Round specimen diameter(mm) | φ6~φ40 mm |
| Flat specimen thickness(mm) | (6~40)x50 mm |
| Max. bending angle | 180° |
| Power consumption(kW) | 2.2 kW(380v50Hz) |
| Main dimension(mm) | 1450×680×1050mm |
| Weight (kg) | 600kg |
Wance group, a company with all technical elites from testing machine industry, is determining to help customers build confidence and provide rapid and cost-saving design, development and production.
Wance group is founded by Shanghai wance testing machine Co., Ltd. And shenzhen wance testing machine Co., Ltd. Team members include both the industry's top engineers and excellent management personnel from two big cities, with great geographical advantages. Within a decade, we strive to build wance into the top one in China and the top three in global testing machine industries.
Wance group is a high-tech enterprise integrating with R&D, manufacturing, sales, services, and professional mechanical testing solutions providing.
We have the best technology and products in China of electromechanical universal testing machine, servo-hydraulic universal testing machine, and automatic pendulum impact testing machine, fatigue testing machine and load calibration testing machine, also we have the top manufacturing technology of high performance and high precision pendulum impact and drop weight impact transducers.
Our products, services, and solutions are widely used in R&D, quality analysis and quality control field, covering testing equipment, testing technology and transfer system of a quantitative value. Customers cover aero-space, mechanical manufacture, vehicle, ship, construction, biological materials, college, universities, research institutes, national quality inspection institutes, export and import inspection institutes. We are keeping tight cooperation with all factories, research institutes, and quality inspection organizations, and providing high quality products and services along with customer uptime demands.
From small melt flow indexer to big 50000j drop weight impact testing machine, wance group relies on years of industrial expertise and creative technical team, delivering the greatest test support and confidence to customers across a wide range of fields. Wance group is committed to accelerate the innovation of test technology and test equipment, to support research projects, to motivate enterprises in brand development and improvement, and products selling in global market.
We are committed to provide complete products and solutions deeply and widely. Wance will be your primary and reliable partner!
