| Price: | US $ 2000-20000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | KET-DBZ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

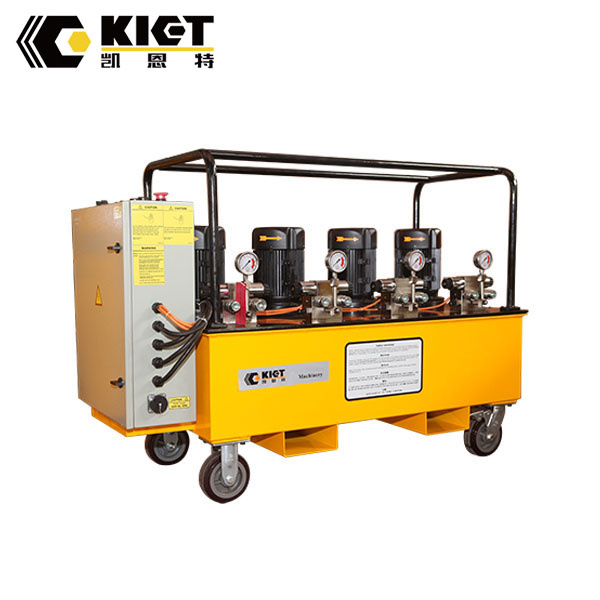

| Product Name: | Special Electric Hydraulic Pump |
| OEM: | Yes |
| Warranty: | 1 Year |
| Working Pressure: | 70MPa |
| Weight: | 104-2048kg |
| Color: | Can Be Customized |
| Delivery Time: | 5-15 Days After Receiving Payment |
| Oil Capacity(L): | 51-1594 |
| Flow(L/Min): | 3-144 |
| Motor Power(Kw): | 3-(4*30) |
| Structure: | Axial Plunger Pump |
| Cylinder Number: | Multi Cylinder |
| Drive Mode: | Hydraulic Driven Reciprocating Pump |
| Pump Shaft Position: | Vertical |
| Type: | Radial |
| Power: | Hydraulic |
| Model | Working Pressure MPa | Flow L/min | Motor Power KW | Motor Speed min | Oil Tank Capacity L | Oil Tank Dimensions mm | Dimensions mm | Weight kg | ||||
| Length | Width | Height | Length | Width | Height | |||||||
| KET-DBZ-300 | 31.5 | 3 | 3 | 1470 | 51 | 500 | 400 | 300 | 570 | 460 | 650 | 104 |
| KET-DBZ-400 | 31.5 | 4 | 4 | 1470 | 51 | 500 | 400 | 300 | 570 | 460 | 660 | 106 |
| KET-DBZ-550 | 31.5 | 5 | 5.5 | 1470 | 164 | 750 | 550 | 470 | 790 | 640 | 850 | 226 |
| KET-DBZ-750 | 31.5 | 6 | 7.5 | 1480 | 164 | 750 | 550 | 470 | 790 | 640 | 890 | 236 |
| KET-DBZ-1110 | 31.5 | 15 | 11 | 1480 | 191 | 800 | 600 | 470 | 840 | 700 | 950 | 294 |
| KET-DBZ-2200 | 31.5 | 30 | 11x2 | 1480 | 433 | 1200 | 850 | 500 | 1240 | 950 | 980 | 596 |
| KET-DBZ-1800 | 31.5 | 24 | 18.5 | 1480 | 291 | 1000 | 700 | 490 | 1040 | 830 | 1050 | 398 |
| KET-DBZ-700 | 31.5 | 48 | 18.5x2 | 1480 | 433 | 1200 | 850 | 500 | 1220 | 950 | 1060 | 684 |
| KET-DBZ-5400 | 31.5 | 72 | 18.5x3 | 1480 | 850 | 2000 | 1000 | 500 | 2000 | 1130 | 1220 | 1214 |
| KET-DBZ-7200 | 31.5 | 96 | 18.5x4 | 1480 | 1226 | 2500 | 1200 | 520 | 2500 | 1340 | 1190 | 1610 |
| KET-DBZ^OOO | 31.5 | 36 | 30 | 1480 | 450 | 1200 | 850 | 520 | 1230 | 950 | 1220 | 622 |
| KET-DBZ-6000 | 31.5 | 72 | 30x2 | 1480 | 850 | 1200 | 1000 | 500 | 2000 | 1130 | 1200 | 872 |
| KET-DBZ-9000 | 31.5 | 108 | 30x3 | 1480 | 850 | 2000 | 1000 | 500 | 2000 | 950 | 1200 | 1496 |
| KET-DBZ-12000 | 31.5 | 144 | 30x4 | 1480 | 1594 | 2500 | 1500 | 500 | 2530 | 1600 | 1200 | 2048 |
Our Services
KIET provides one year guarantee for all the hydraulic tools. We promise if there is any dysfunction of the hydraulic tools during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Company Information
Jiangsu Canete Machinery Manufacturing Co., Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);

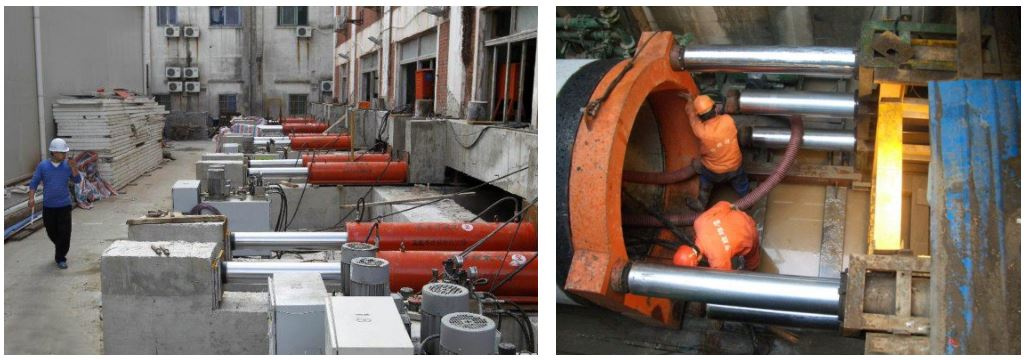

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)

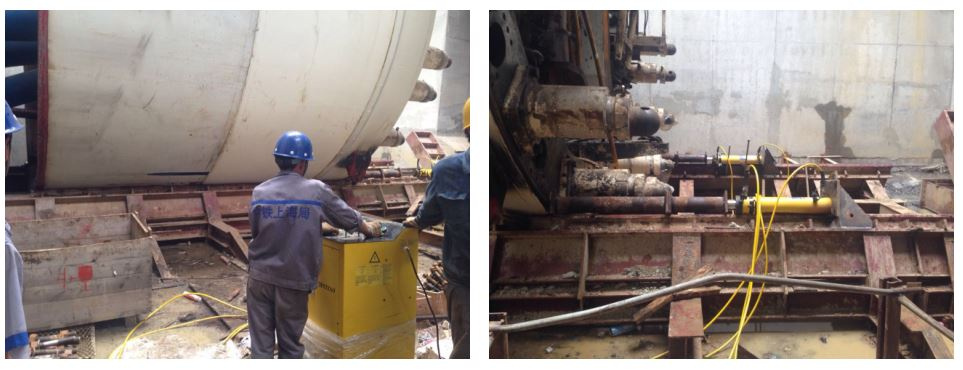

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
FAQ
Q1: How can contact sales?
A1: Please call: +86-523-81569666 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 100 days. If it is customized, not our standard products, it will take
20-45 days to produce.
Cooperation Terms
1) Our warranty: We guarantee our product for 1 year.
2) Delivery time: 7-20 days after deposit received and all details have been confirmed.
3) Payment Terms: 30% T/T, Balance before shipment
4) MOQ: 1 pcs.
Contact Information
Tel:+86-523-81569666
Web: http://www.chinakiet.com/EN/
Welcome to visit our factory!
We make sure will quote best price for u after receiving your inquiry!
