| Prod Model: |
Vortex-repair clamp |
| Markets: |
Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe |
| Tensile Strength: |
Min 420 N/mm² |
| Material: |
Iron |
| Connection: |
Bolt |
Product Description

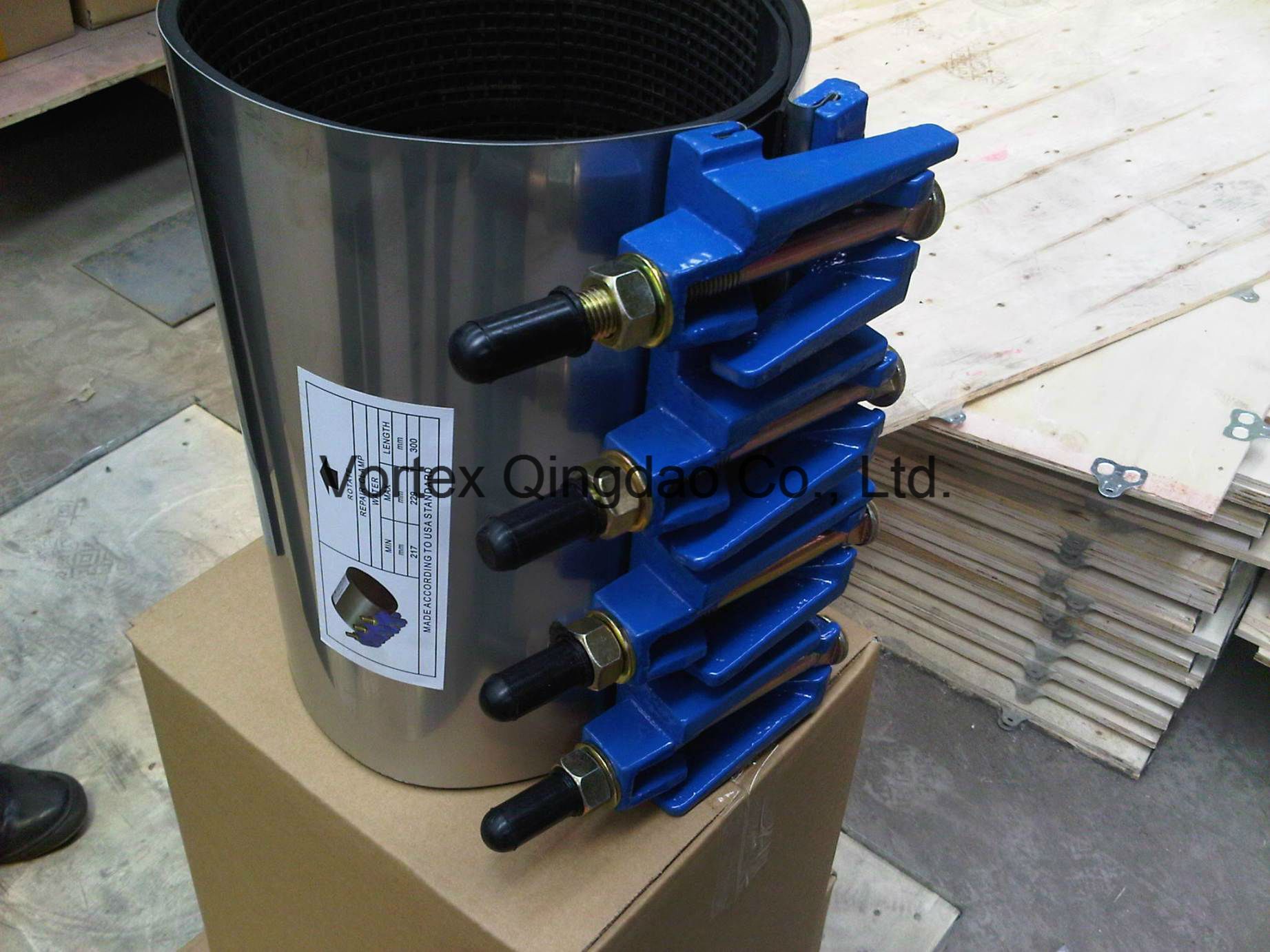

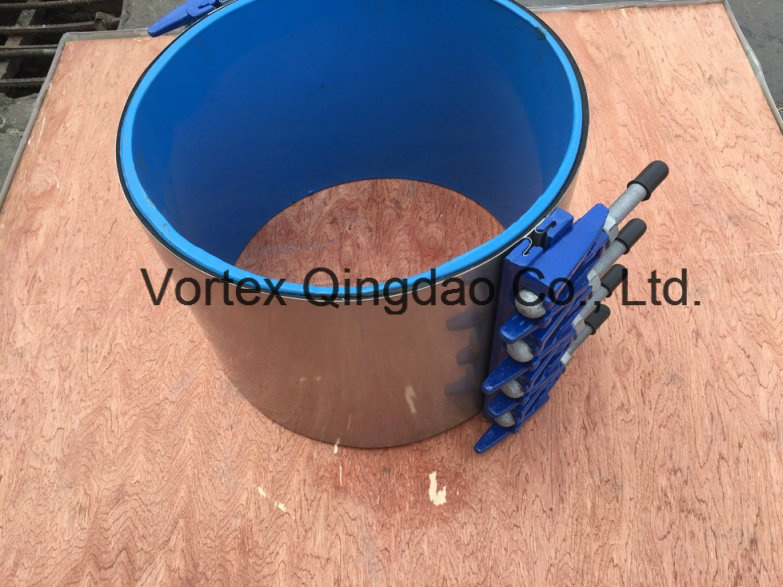

Full stainless steel repair clamp
The stainless steel repair clamp made by vortex are high quality and reasonable price.
All Stainless Steel Repair Clamp combines the corrosion resistant characteristics of stainless steel and the sealing capabilities of rubber to provide a strong, dependable and versatile repair clamp.
Specifications:
Band: Stainless Steel 304.
Bolts and Nuts: Stainless Steel 304.
Lugs: 304 heavy gauge Stainless Steel, welded to clamp sidebar.
Sidebars: 304 heavy gauge Stainless Steel Tungsten Inert Gas welded to form a strong, permanent fusion with the repair clamp band.
Lifter Bar: Type 304 heavy gauge Stainless Steel. Lip curve hold bolts in position while tightening and serves as a bearing surface for nuts.
Gasket: EPDM or NBR
Dimentions: From 2" to 44"
| MATERIALS COMPOSTION |
| ITEMS | NAME | MTERIALS |
| 1 | BOLT | SSS304/201 |
| 2 | LUG PLATE | SSS304/201 |
| 3 | COUNTER PLTE | SSS304/201 |
| 4 | WASHER | SSS304/201 |
| 5 | NUT | SSS304/201 |
| 6 | GASKET | EPDM/SBR |
| 7 | SIDE BAR | SSS304/201 |
| 8 | BAND | SSS304 2B/201 |
VORTEX Qingdao Co., Ltd., as a big and professional manufactural factory based in Qingdao city Of China, we have three foundries, and our main products are ductile casting iron products water-supplying pipeline field, typical products as below.
Our typical products are as below:
Ductile iron pipe and fitting (Size from DN80 to DN2000),
**** Ductile iron pipe K9/K8/K7/ C class, Socket bend, flanged bend, socket and flanged tee, flanged socket, flange taper, socket taper, blank flange, welding flange, bellmouth.
**** Welding flanged pipe, we have Automatic welding equipment to produce welding flanged pipes and one of best stable welding quality in China.
****Our Articulated pipe system developed to provide shallow water abrasion and impact protection for submarine cables.
**** Pipe joint, including Flanged adapters, Couplings, Dismantling joints, Clamp, and stainless steel repair Clamp, all like Viking Johnson design joint with EPDM gasket rubber rings.
**** PVC pipe fittings from DN50----DN630.
**** Loose flange fittings from DN80----DN600.
****Gate valve, Check valve, Butterfly valve, Air valve, Angel valve, Fire hydrant, Extension spindle,
All of them are according to ISO2531/EN545/EN598/AWWA C110/C153. (PN10/PN16/PN25/PN40)
Furthermore, we can supply pipe fittings with Rilsan Nylon power coating(black color) and epoxy resin AKZOL powder coating, so far we are the few supplier of Rilsan Nylon coated fittings.
