| Prod Model: |
HT-20 |
| Type: |
Leeb Hardness Tester |
| Measuring Range: |
HLD |
| Standard: |
GB/T |
| Calibrating Method: |
Steel Anvil |
| Application: |
Mortar |
Product Description

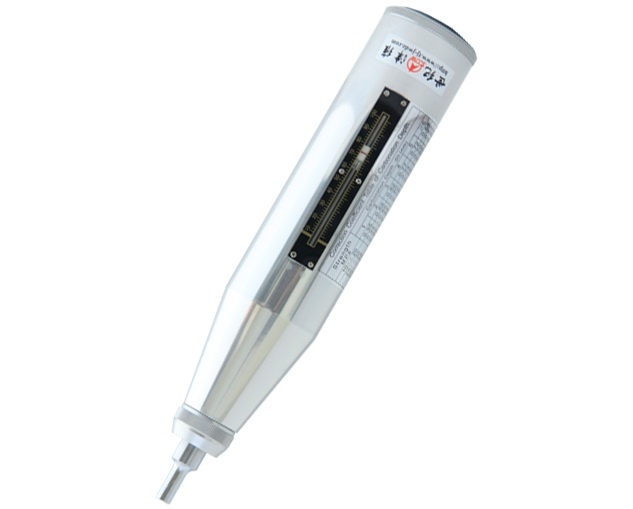

Resiliometer Mortar Test Hammer Rebound Resiliometer (HT-20)This instrument is specially used in testing the compressive strength of mortar in building brick component.
Features:
1)Center rod use imported materials, high precision, wear proof.2)Shell made from super hard aluminum, perfectly protect instrument from damage on site work, and prolong use life.;
3)Pointer slider is outside ring structure, easy to adjust friction, and assure the equal friction between pointer slider and axis, so that assure the accuracy of instrument. Compare with other brand similar product, it's better accuracy, longer use life.
Specifications:1)Test range: 1.0~25Mpa
2)Standard impact energy: 0.196J(0.02kgf.m)
3)Length of spring stretch: 75± 0.3mm
4)The static friction of pointer slider: 0.65N± 0.15N
5)Radius of spherical tip: 25mm± 1.0mm
6)Average rebound values on steel anvil: 74±2
7)Size: Φ54χ268mm
8)Weight: ≈1KG
Product:
Our company named Nanjing Longjun Survey Instrument Co., Ltd., changed from Nanjing Longteng Survey Instrument Co., Ltd.
We began survey instrument business since 2002. Our goods have been exported to Peru, Switzland, Miami, Turkey, UAE, Egypt, Thailand, Singapore, Philippine, United Kingdom...
As the agent of FOIF and Sokkia and Hi-Target in JiangSu province for survey instruments, we can give you the best price and best service.
We supply you with Gnss RTK, auto level, theodolite, total station, 3D scanner, rotary laser, tripod, prism, prism pole, prism group and so on. At the basis of Foif total station, we can accept OEM.
Our warranty policy is as followed.
For instruments(total station, thedolite, GNSS, auto level), we offer one year warranty, for accessories(prism, pole, tripod, leveling staff), we offer six months warranty from the day you get the products.
For product within the warranty period, please send us photos to show the problem. And then we will decide to send you parts or you send the instrument back to us to repair. We will be responsible for the double-run freight. Please make sure to contact us first instead of sending the damaged parts direct to us.
For problem out of the warranty period or warranty lialility, we will judge the problem and quote for you. You need to pay double-run freight and the maintenace cost.
