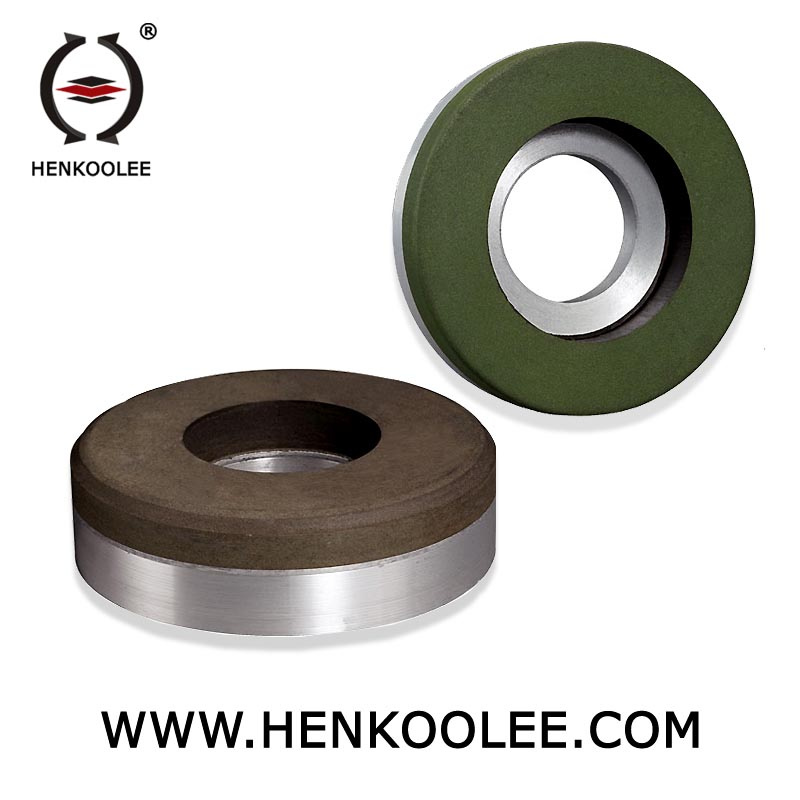

Resin-Bond Diamond Dry-Grinding Wheel (Working Layer With Flume)

Resin-Bond Diamond Dry-Grinding Wheel (Working Layer With Flume)
Price: US $ 20-30/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P
Prod Model: HKL213
Working Conditions: Dry
Used For: Glaze Wall Tiles
Material: Diamond
Types: Cutting Wheel
Working Style: Tool Grinding
Abrasive: Resin and Diamond
Shapes: Round

Product Description

DRY SQUARING WHEEL AND CHAMFERING WHEEL
The advantage of these products is to make squaring and chamfering without water on ceramic tiles edges,which can achieve the same effect as traditional wet squaring and chamfering way.By the traditional wet squaring and chamfering way. By the traditional wet mode, the tiles body will absorb water and some water will be still remained after drying, so ceramic tiles may become mildew and dyed when storing and transportation. But by dry squaring and chamfering mode,it can prevent effectively above mentioned quality problems, moreover the drying equipments and process become unnecessary, so the power consumption can be lowered, labor cost, drying equipments and related field can be saved.
These products are suibable for make dry squaring and chamfering on glaze wall tiles. Our dry squaring and chamfering wheels are approved for their high grinding and cutting efficiency, excellent effect and stabile performance.

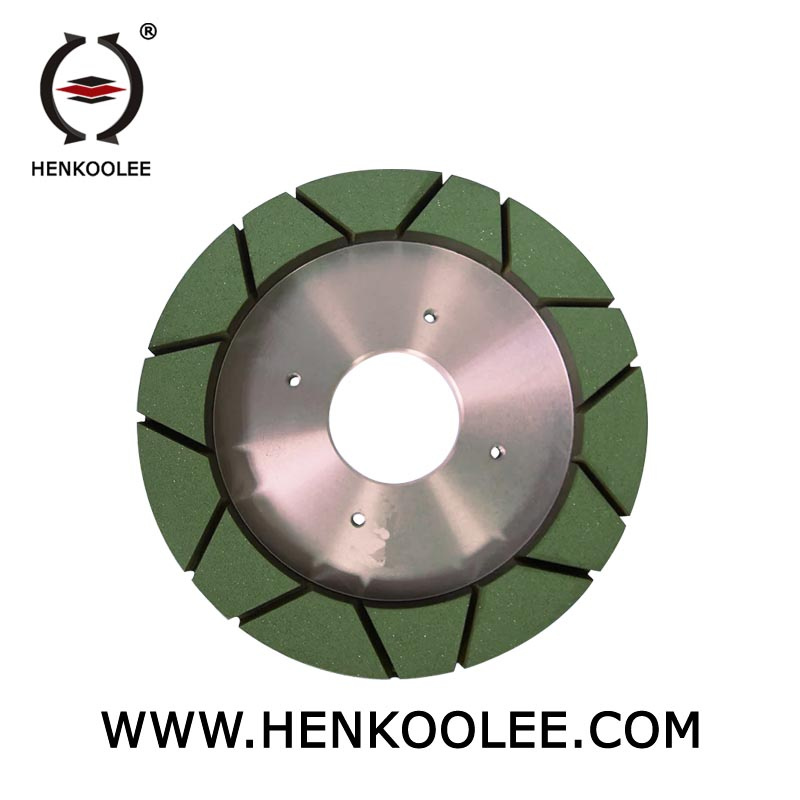

RESIN-BOND DIAMOND DRY-SQUARING WHEEL
Dry squaring wheel & chamfering wheel is applicable for make dry squaring & chamfering on glaze wall tiles in dry squaring & chamfering line. These products are approved for their high grinding and powerful cutting efficiency, stable performance and long working lifetime etc.

Why Choose Our HENKOOLEE?
1. A leading factory of diamond tools industry in China
2. Approved the best quality with very competitive price
3. Good sharpness, stable performance, high cutting efficiency and long lifespan
4. Strict quality control system, accept inspection by 3rd party, as ISO9001, ISO14001 and OHSAS18001 systems.
5. We have very experienced R&D engineers and we have strong ability to do ODM projects.
6. Custom design can be meet upon request, small trial order is available in any time, We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
7. Easy communication,HENKOOLEE professional sales team will always answer you in time, besides, friendly and helpful after sales service is always there for you.

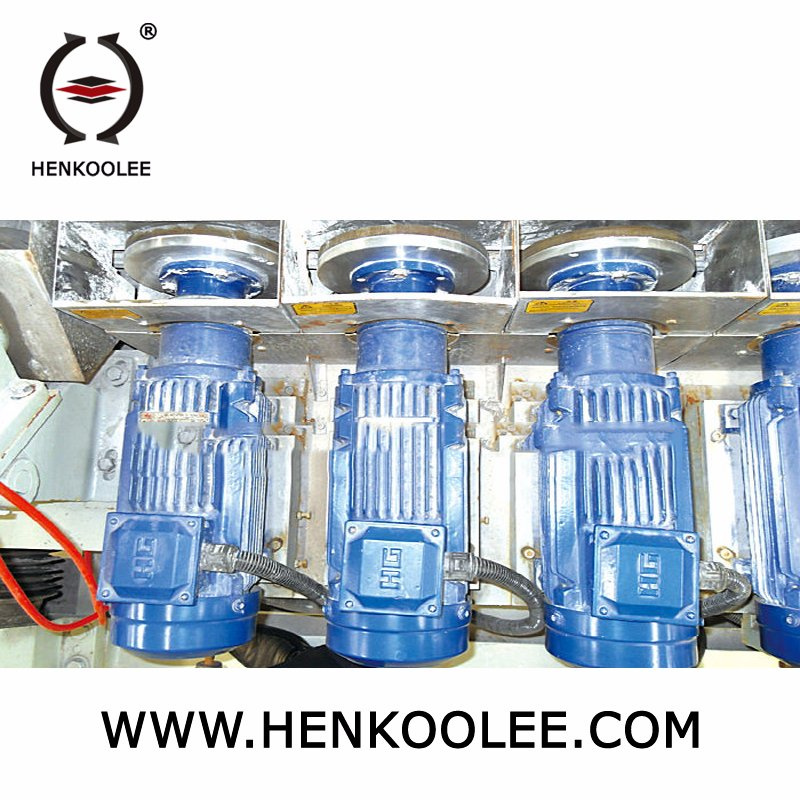

APPLICATION

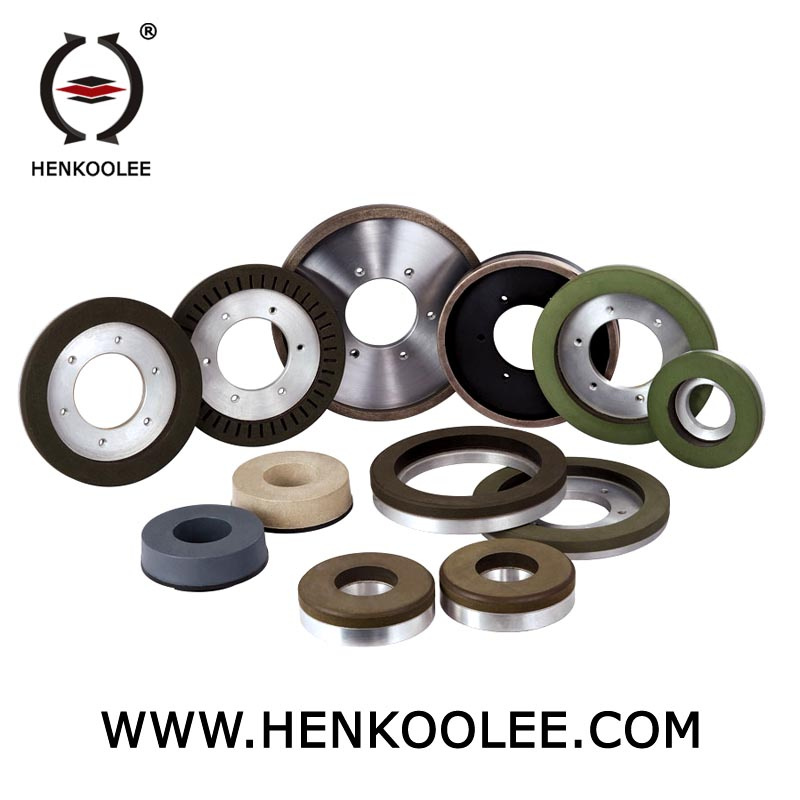

MODEL,SPECIFICATIONS AND PARAMETER

DESCRIPTIONDIMENSION
(MM)
DxWxH
GRITUSER FOR

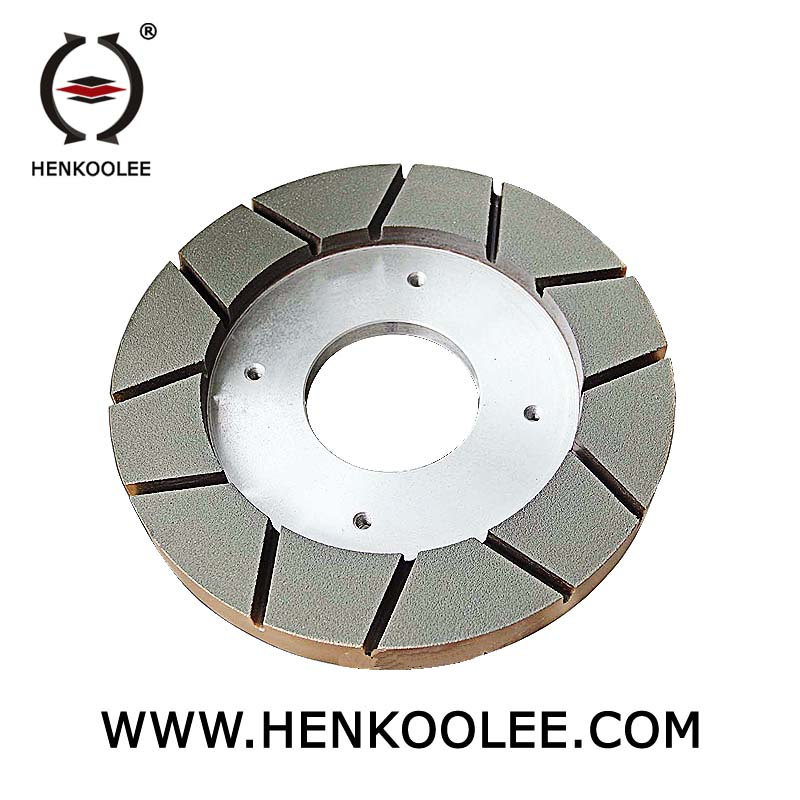

SEGMENTED METAL-BOND DIAMOND DRY-SQUARING WHEELΦ200x8X12
Φ250x8X12
Φ300x10x14


D301(50#)
D251(60#)
D212(70#)
ROUGH GRINDING
CONTINUOUS RIM METAL-BOND DIAMOND DRY-SQUARING WHEELΦ150x6X12
Φ200x10X12
Φ250x10X12
Φ300x12X15
Φ300x30X10
D181(80#)
D151(100#)
MEDIUM AND FINE GRINDING
CONTINUOUS RIM RESIN-BOND DIAMOND DRY-SQUARING WHEELΦ200x25x15
Φ250x40x15
Φ300x40x15
D181(80#)
D151(100#)
D126(120#)
FINE GRINDING
RESIN-BOND DIAMOND DRY-CHAMFERING WHEEL
(ROTATION LEFT/RIGHT)
Y3/Φ125
Φ130x30x20
D76(200#)
D64(240#)
D54(270#)
CHAMFERING
RESIN-BOND SILCON CARBIDE DRY-CHAMFERING WHEEL
(ROTATION LEFT/RIGHT)
Y3/Φ125D107(150#)
D91(180#)
D64(240#)
CHAMFERING
RESIN-BOND DIAMOND DRY-CHAMFERING WHEEL
(ALUMINUM BODY)
Φ130x30x20
Φ130x40x20
D76(200#)
D64(240#)
D54(270#)
CHAMFERING
REMARK:Other specifications are available on requirement.






Procedure


HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.

Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.

Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
