| Prod Model: |
DZP series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hammer Type: |
Resonance-Free Frequency Modulation Vibratory Pile |
| Type: |
Vibratory Pile Hammer |
| Pile Hammer Type: |
Vibratory Hammer |
Product Description

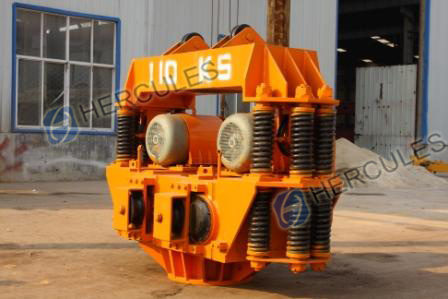

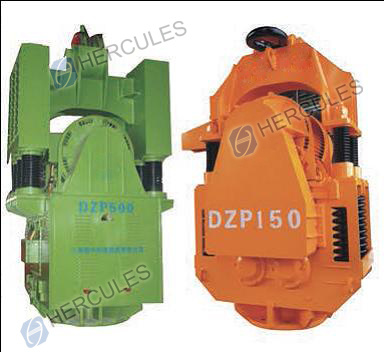

DZP series resonance-free frequency modulation vibratory pile hammer
Pile hammer, vibratory hammer, vibrating hammer, vibrating piling hammer
DZP series resonance-free frequency modulation vibratory pile hammer is developed by our company. It is a new series product with well-function, easy to operate and accord with piling working requirement.
Technical Feature:
1. Equipped with shock-resistant frequency conversion motor with self-owned intellectual property rights to extend the service life.
2. The control system is equipped with frequency and energy converters in order to bring about frequency stepless regulation and resonance-free phenomenon at the time of starting and stopping.
Model
Item | Unit | DZP
45 | DZP
60 | DZP
90 | DZP
90KS | DZP
120 | DZP
120KS | DZP
180 | DZP
240 | DZP
240KS | DZP
300 | DZP
500 |
| Motor Power | KW | 45 | 60 | 90 | 45×2 | 120 | 60×2 | 180 | 240 | 120×2 | 300 | 500 |
Still Eccentric
Moment | Kg.m | 25 | 37 | 47 | 52 | 71 | 71 | 250 | 300 | 142 | 400 | 580 |
Max Vibration
Frequency | r/min | 1150 | 1100 | 1050 | 1000 | 1000 | 1000 | 660 | 690 | 1000 | 660 | 680 |
| Exciting Force | T | 37 | 50 | 58 | 58 | 80 | 80 | 121 | 162 | 160 | 195 | 300 |
| No-load Amplitude | Mm | 8.9 | 9.8 | 10.2 | 9.7 | 8.3 | 8.3 | 25.7 | 21.7 | 8.3 | 19 | 20.5 |
| No-load Acceleration | G | 13 | 13.5 | 12.1 | 10.8 | 9.3 | 9.3 | 12.8 | 11.1 | 9.3 | 9.3 | 10.6 |
| Permited Pressing Force | T | 10 | 10 | 16 | 16 | 25 | 25 | / | / | 40 | / | / |
| Permited Extracting Force | T | 20 | 20 | 25 | 25 | 40 | 40 | 60 | 80 | 80 | 120 | 120 |
| Vibratory Mass | T | 2.8 | 3.74 | 4.56 | 5.37 | 5.2 | 8.61 | 9.7 | 14.3 | 17.2 | 21 | 28.3 |
| Total Weight | T | 3.82 | 5.1 | 6.16 | 7.19 | 7.16 | 11.78 | 12.8 | 19.1 | 21.5 | 27.2 | 35.9 |
| Overall Size | Length | mm | 1190 | 1370 | 1523 | 2390 | 1720 | 3120 | 1980 | 2190 | 3585 | 2320 | 2580 |
| Width | mm | 1100 | 1250 | 1250 | 1420 | 1310 | 1690 | 1500 | 1730 | 1746 | 1963 | 2241 |
| Height | mm | 2340 | 2395 | 2330 | 2060 | 2640 | 2450 | 3570 | 4040 | 3470 | 4580 | 5185 |
Xuzhou Hercules Machine Manufacture Co., Ltd. is ISO9001 quality management system certification enterprise, the certified supplier by SGS, the high-tech private enterprise in Jiangsu province, Jiangsu province AAA grade Credit enterprise; Jiangsu province AAA grade Quality, Integrity Services enterprise and the company also was "Xuzhou Piling Machinery (Hercules) Engineering Research Centers".
Hercules piling machinery was awarded the title of Jiangsu High-tech Products. Our company has 20 state grade patents and new practical patents. Our machine had become the new benchmark for quality piling machinery!
Our main products include Long Auger Drilling Rigs (drilling diameter: Φ 300-Φ 1500mm, drilling Depth: 10m-35m), Diesel Hammer Pile Drivers (4T-10T), Rail Type and Electric Crawler Wick Drain Drivers, Percussion Drilling Rigs (drilling diameter: Φ 800-Φ 3000mm). Especially the machine Multi-function Pile Drivers integrated with expansion pile, compaction pile, gravel pile, pilling rig and prefabricated pipe pile, which favored by the users and lead the sale. We can also make the machinery and the components according to the customers' Requirement.
