| Prod Model: |
ball nose end mill |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
R0.5-R10mm |
| Helix: |
30 Degree |
| Length: |
50-100mm |
| Coating: |
Tisin |
| HRC: |
55 |
| Cutting Flutes: |
2 |
| Sample: |
Available |
| OEM: |
Accept |
Product Description

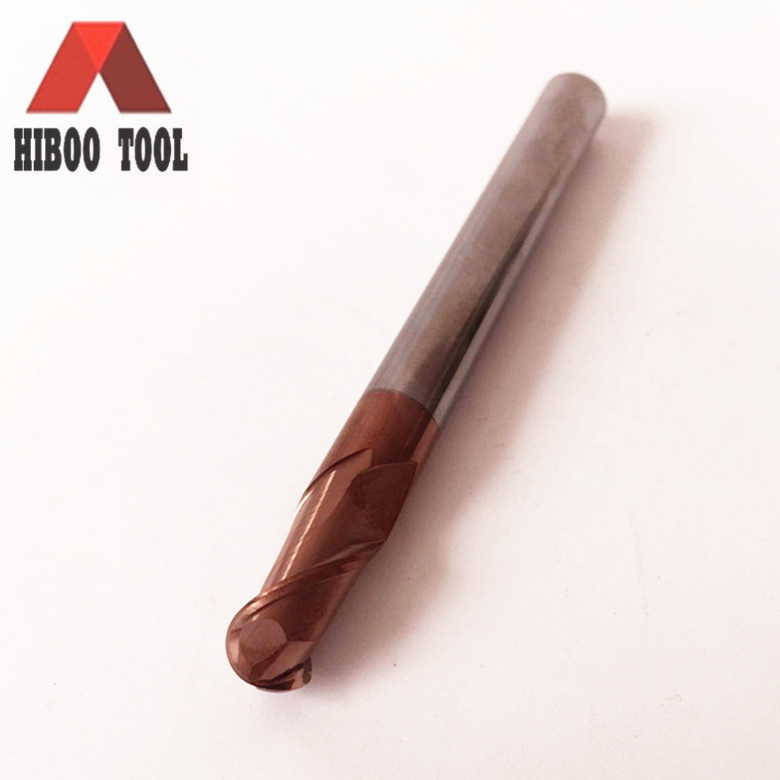

HRC55 carbide ball nose end mills
1. HRC55 Raw Material , There are other quality for your choosen
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 | Sandvik H10F |
Grain Size:0.7um
Co:10 %
Flexural strength:3320N/mm2 | Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2 | Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2 | Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2 |
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.
| AlTiN | TiAIN | TiSiN | Nano |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. The following Specification for your refer, We also provide the OEM or ODM service
(Order No)
| Cutting
| Shank
| Flute
| A.0.l
|
d
| D
| l
| L
|
R0.5×2×4D× 50L × 2F
| 1
| 4
| 2
| 50
|
R0.75×3×4D× 50L × 2F
| 1.5
| 4
| 3
| 50
|
R1.0×4×4D× 50L × 2F
| 2
| 4
| 4
| 50
|
R1.25×5×4D× 50L × 2F
| 2.5
| 4
| 5
| 50
|
R1.5×6×4D× 50L × 2F
| 3
| 4
| 6
| 50
|
R1.75×7×4D× 50L × 2F
| 3.5
| 4
| 7
| 50
|
R2.0×8×4D× 50L × 2F
| 4
| 4
| 8
| 50
|
R2.5×10×6D× 50L × 2F
| 5
| 6
| 10
| 50
|
R3.0×12×6D× 50L × 2F
| 6
| 6
| 12
| 50
|
R3.5×14×8D× 60L × 2F
| 7
| 8
| 14
| 60
|
R4.0×16×8D× 60L × 2F
| 8
| 8
| 16
| 60
|
R4.5×18×10D× 75L × 2F
| 9
| 10
| 18
| 75
|
R5.0×20×10D× 75L × 2F
| 10
| 10
| 20
| 75
|
R5.5×22×12D× 75L × 2F
| 11
| 12
| 22
| 75
|
R6.0×24×12D× 75L × 2F
| 12
| 12
| 24
| 75
|
R7.0×28×14D× 100L × 2F
| 14
| 14
| 28
| 100
|
R8.0×32×16D× 100L × 2F
| 16
| 16
| 32
| 100
|
R9.0×36×18D× 100L × 2F
| 18
| 18
| 36
| 100
|
R10×40×20D× 100L × 2F
| 20
| 20
| 40
| 100
|
6. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
7.Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
8. Payment Term
T/T ,Western Union , MoneyGram,L/C
9.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 20000 products are available
For your suggestions or complaints,We will handle them Soonest
We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.
Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.
Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.
We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
