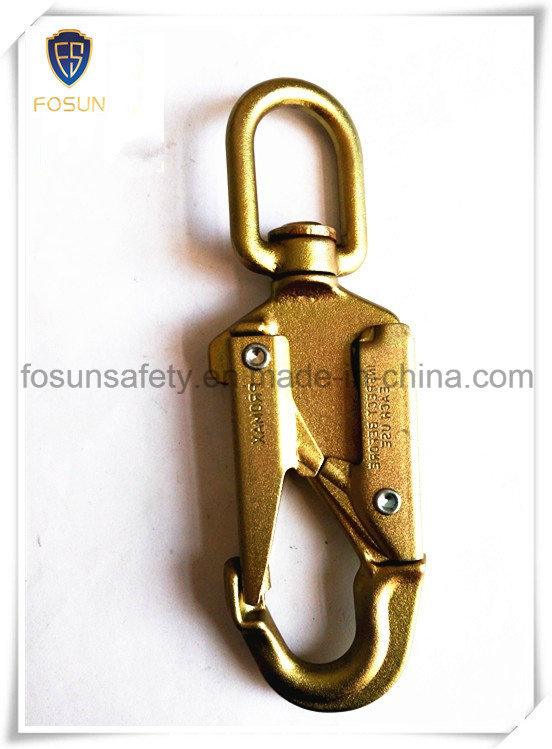

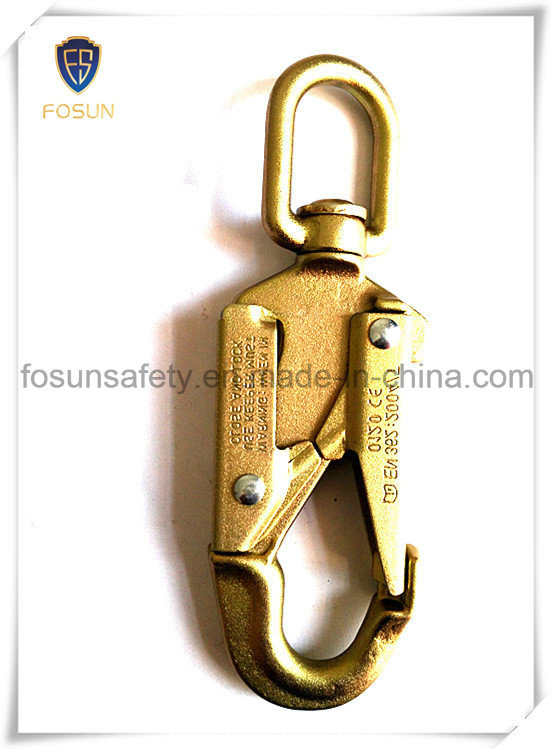

Revolve Protective Safety Closure Forged Steel Snap Hook
| Price: |
US $ 3.65-3.81/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Forged Swivel Snap hook G7350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Open Gate: |
19mm |
| Min Tensil Strength: |
22kn/5000lbs |
| Minor Axis: |
16kn |
| Major Axis: |
22kn |
| Finish: |
White/Yellow Plating |
| Material: |
Metal |
| Type: |
Hook |
| Brand: |
Fosun/as Your Request |
Product Description
Specifications:

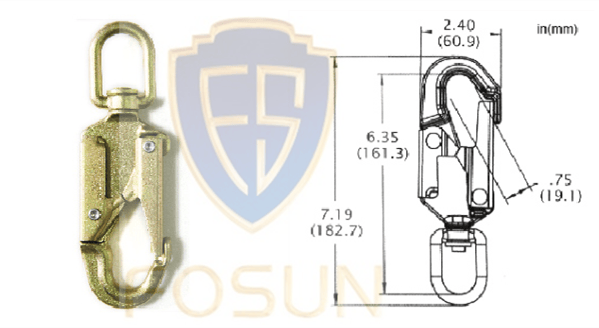

G7350 3/4"Snap Hook
Drop Forged Steel
100% proof loaded to 3600 lbs(16kN)
Min tensile strength 5000 lbs(22.2kN)
Min gate strength 3600 lbs(16kN)
Min side load strength 3600 lbs(16kN)
Meets Or Exceeds:
ANSI/ASSE Z359.12-2009
CSA Z259.12-11
EN362-2004
Finished:White/Yollow Plating
Weight:393gmOur Advantage
1,10 years of rich experience in forging and production.2,Using high quality materials, first-class equipment, 3,Stable products supply, good quality control and advanced technology.4, Mark as customer's request, like customer's Company LOGO5,Competitive factory price.6,Free samples, you only pay the shipment charge.7,Strict inspection before shipping.8,Welcome customer's designs, OEM and ODM items.9,On time delivery. 10,Good warranty and after-sales service.MINIMUM REQUIREMENTS AS OUTLINED FOR HOOKS AND CARABINERS PER STANDARD| Standard | CSA Z259.12-01 | CSA Z259.12-11 | ANSI Z359.12-1999 | ANSI/ASSE Z359.1-2009 | EN 362:2004 | NFPA 1983-2006 |
| Major Axis | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 4500 lbs(20kN) | *** |
| Gate Face | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | N/A |
| Side Load | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | N/A |
| Minor Axis | N/A | 3600 lbs(16kN)* | N/A | 3600 lbs(16kN)* | ** | *** |
* New Standard required Minor Axis Loading for connectors with non-integral eyes.
** EN:Basic Connectot 1575 lbs(7kN);Multi Use Connector 3378 lbs(15kN).
*** NFPA:Light Use...Major Axis gate closed 6069 lbs(23kN);Major Axis gate open 1574 lbs(7kN)
General Use...Major Axis gate closed 8922 lbs (39.7kN); Major Axis gate open 2473 lbs(11kN);Minor Axis 2473 lbs(11kN) |
