| Prod Model: |
australian type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Qingdao Sailrigging |
| Origin Place: |
China |
| Type: |
Bow Shackle |
| Mini Order: |
100 Pieces |
| Shackle Material: |
45# |
| Package: |
According to The Customer |
| Name: |
Bow Shackle |
| Others Surface Treatment: |
Galvanised, Hot Galvanised, Nature... |
| Material: |
Steel |
| Usage: |
Lifting and Tensing The Chains |
| Shape: |
Bow Shape |
| Color: |
Red, Orange |
Product Description

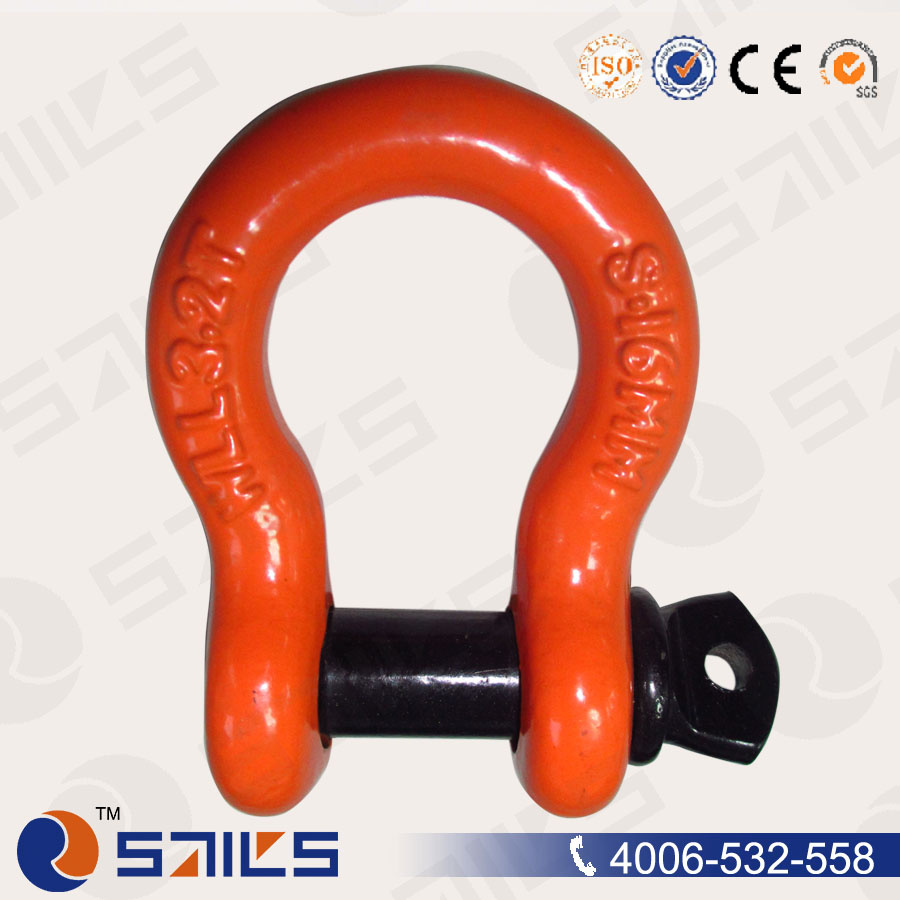

Model No.:Rigging Hardware Lifting Bow Australian Type Shackle
Material: 45#
Surface: Galvanized
Size: All kinds of size
Packing: Carton and iron pallet, gunny bag+ iron pallet, carton+ wooden pallet
Advantageous Service.
1. Customers' special need is welcomed, from mold to samples within 10 days.
2. With 10 years' exporting experience, all inquiries responded within 12 hours.
3. Exported to over 50 countries, products test reports provided on request.
4. ISO, CE Certificated, product quality strictly controlled by QC depart.
5. No MOQ limit, Timely delivery, High quality and competitive prices.
6. Our Creed: Better because of Specialization.
Our Main Products.
Our main produce include shackles, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope clips, swivels, snap hooks, stainless steel riggings etc.
| Nominal | Working | Dimensions | Weight Each |
| size | load | (in.) | (lbs.) |
| (in.) | limit |
|
|
| (tons) | A | B | C | D | E | F | G | H | L | M | P | G-209 |
|
| S-209 |
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.14 | 0.19 | 0.06 |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.43 | 0.25 | 0.1 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.71 | 0.31 | 0.19 |
| 3/8 | l | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.02 | 0.38 | 0.31 |
| 7/16 | l1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.37 | 0.44 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 0.5 | 0.72 |
| 5/8 | 31/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 | 3.34 | 0.69 | 1.37 |
| 3/4 | 43/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 | 3.97 | 0.81 | 2.35 |
| 7/8 | 61/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 | 4.5 | 0.97 | 3.62 |
| l | 81/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.13 | 1.06 | 5.03 |
| l1/8 | 91/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.71 | 1.25 | 7.41 |
| l1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 | 6.25 | 1.38 | 9.5 |
| l3/8 | 131/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.83 | 1.5 | 13.53 |
| l1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 | 7.33 | 1.62 | 17.2 |
| l3/4 | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 | 9.06 | 2.25 | 27.78 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.35 | 2.4 | 45 |
| 21/2 | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13 | 3.13 | 85.75 |
Qingdao Sail Rigging Co., Ltd. is a high technology enterprise which has modern management level and ability of manufacturing medium and high grade rigging. We are mainly engaged in the R&D, manufacture and sale of rigging products. We focus on the production of rigging for nearly 30 years. Main products of Qingdao Sail Rigging Co., Ltd. Include shackles, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope clips, thimbles, anchors, snap hooks and stainless steel riggings. We can also take up processing business according to the drawings, samples and materials provided by customers. Various sizes and categories are also available. Our factory is about 2000 square meters. We have advanced production machinery, such as Friction Type Forging machine, Sand Blasting machine, Thread machine and Punching machine. Testing Machinery includes Hardness Tester, C/S Analyzer and Elemental Analyzer. Six production lines are working. The production capacity is 300 tons per month.
Sail Rigging determined to ensure the quality of raw materials and guarantee the production process in strict monitoring. The company has passed many certification authority, such as ISO, CE, SGS, BV, etc. We have senior management personnel and technicians, professional sales and after sale service team, advanced production facilities, rich experience in production management, strong technical force, scientific testing methods and reliable quality assurance. We can meet your requirements exactly. Our experienced sales teams are very nice and friendly. They are good at English, Japanese and Korean. We will have a pleasant cooperation and supply you high quality products.
With our commitment to supply high-quality products, competitive prices and prompt deliveries, we have won the trust of customers at home and abroad, particularly in the USA, Europe, Africa, Australia, Asia. Sail Rigging sincerely welcome the friends from all over the world come to negotiate business. On the basis of equality and mutual benefit, make the developing cooperation and invest, develop the international rigging market jointly.
