| Prod Model: |
Din 148 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body: |
C15 |
| Thread: |
C15 |
| Surface: |
Electric Galvanized |
| Technology: |
Drop Forged |
| Specification: |
Diameter of Thread |
| Size: |
M5-M36 |
| Material: |
C15 |
| Type: |
Eye and Hook |
Product Description

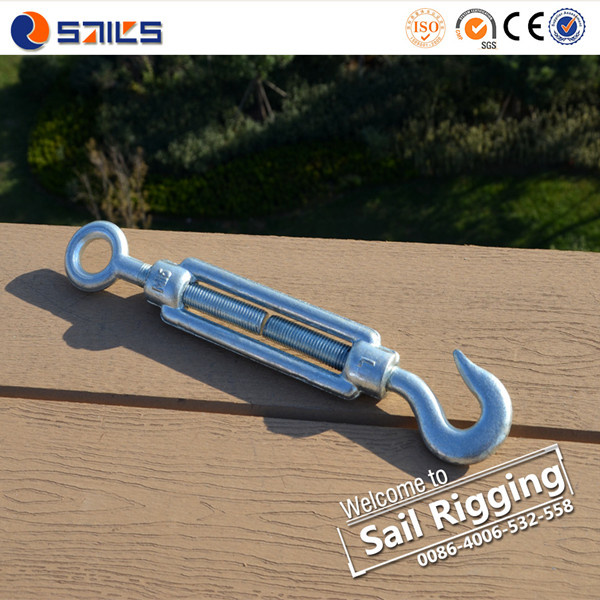

Rigging Hardware O-C Type DIN1480 Turnbuckle
I Type of turnbuckle:
US Type Turnbuckle
DIN 1480 Turnbuckle
JIS Type Frame Turnbuckle
Turnbuckle Commercial Type
Korean Turnbuckle
II Main Features:
Turnbuckle usually Forged, Free forged and Casting.
The surface of turnbuckle original color, galvanised, hot galvanised.
The main material of Turnbuckle is steel 45#, Q235 and turnbuckle commercial type and Korean turnbuckle 's body is malleable steel.
Turnbuckle are used in lifting field and usually used for tensing chains.
III Advantages:
High quality products:
Good quality raw material;
Advanced International production process;
Professional quality inspection.
Factory Audit:
We have our own factory and we have specially manufactured rigging hardware for many years.
Best service:
Experienced and friendly staff offer great service to you.
| Dimension | Permissible Load | weight kg/100pcs |
|
| D mm(inch) | 11 | m | 12 | b | di | da | i |
| kg | N | mm | mm | mm | mm | mm | mm | mm |
| M6 | 230 | 2250 | 7.8 | 110 | 10 | 60 | 53 | 10 | 20 | 4.5 |
| M8 | 418 | 4100 | 14.8 | 110 | 14 | 60 | 55 | 12 | 26 | 6.5 |
| M10 | 663 | 6500 | 29.4 | 125 | 20 | 65 | 60 | 14 | 30.5 | 8 |
| M12 | 948 | 9300 | 36.3 | 125 | 21 | 75 | 70 | 18 | 37.5 | 10.5 |
| M16 | 1804 | 17700 | 91 | 170 | 27 | 100 | 90 | 22 | 48 | 13 |
| M20 | 2752 | 27000 | 156 | 200 | 34 | 115 | 100 | 25 | 51 | 20 |
| M24 | 3996 | 39200 | 325 | 255 | 39 | 140 | 130 | 28 | 66 | 27 |
| M30 | 6371 | 62500 | 415 | 255 | 45 | 145 | 130 | 35 | 83 | 31 |
| M32 | 6585 | 64600 | 595 | 295 | 55 | 160 | 150 | 36.5 | 88 | 33 |
| M36 | 9276 | 91000 | 745 | 295 | 55 | 160 | 150 | 44 | 104 | 40 |
| M38 | 9572 | 93900 | 1076 | 330 | 63 | 185 | 170 | 42 | 104 | 39 |
Qingdao Sail Rigging Co., Ltd. is a high technology enterprise which has modern management level and ability of manufacturing medium and high grade rigging. We are mainly engaged in the R&D, manufacture and sale of rigging products. We focus on the production of rigging for nearly 30 years. Main products of Qingdao Sail Rigging Co., Ltd. Include shackles, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope clips, thimbles, anchors, snap hooks and stainless steel riggings. We can also take up processing business according to the drawings, samples and materials provided by customers. Various sizes and categories are also available. Our factory is about 2000 square meters. We have advanced production machinery, such as Friction Type Forging machine, Sand Blasting machine, Thread machine and Punching machine. Testing Machinery includes Hardness Tester, C/S Analyzer and Elemental Analyzer. Six production lines are working. The production capacity is 300 tons per month.
Sail Rigging determined to ensure the quality of raw materials and guarantee the production process in strict monitoring. The company has passed many certification authority, such as ISO, CE, SGS, BV, etc. We have senior management personnel and technicians, professional sales and after sale service team, advanced production facilities, rich experience in production management, strong technical force, scientific testing methods and reliable quality assurance. We can meet your requirements exactly. Our experienced sales teams are very nice and friendly. They are good at English, Japanese and Korean. We will have a pleasant cooperation and supply you high quality products.
With our commitment to supply high-quality products, competitive prices and prompt deliveries, we have won the trust of customers at home and abroad, particularly in the USA, Europe, Africa, Australia, Asia. Sail Rigging sincerely welcome the friends from all over the world come to negotiate business. On the basis of equality and mutual benefit, make the developing cooperation and invest, develop the international rigging market jointly.
