Rigging Hardware of European Type Bow Shackle

Prod Model:	5mm-60mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
European Bow Shackle:	5mm-50mm
Rigging Hardware:	5mm-50mm
JIS Bow Shackle:	5mm-50mm
Us Type Drop Forged Bow Shackle:	5mm-50mm
Trawling Shackle:	6mm-60mm
Stainless Steel Bow Shackle:	5mm-50mm
Material:	Carbon Steel,Aloy Steel, Stainless Steel
Shape:	Bow Type
Usage:	Rigging Hardware, Marine Hardware
Color:	Any Colour According Customers Request

Product Description

Manufacture & Export :

Δ 1. Product Description:

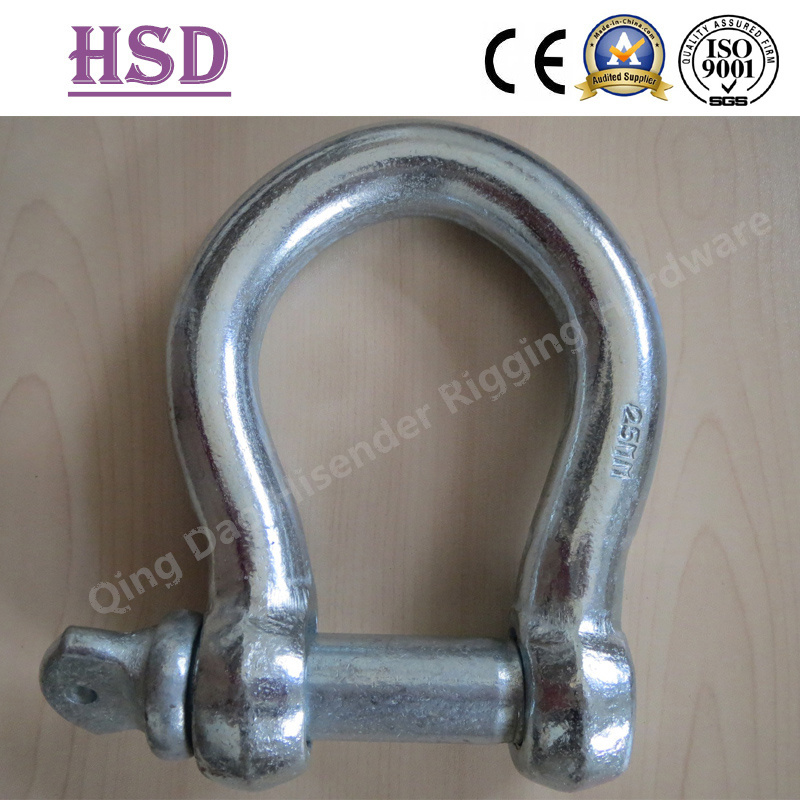

European Type Large Dee Shackle


Δ Professional Manufacturer & Exporter of kinds of shackles From 2002.

Product Name	European Type Large bow Shackle
Material	carbon steel, 45# steel
Surface	E.Galvanized
Technology	free forged
Size	From 3mm-50mm
Standard	Europan bow Type
Use For	Chain and Wire Rope Accessories
Technology:	free  Forged
Function	For Lifting Industry

1. Your inquiry will be replied within 12 hours;
2. Timely delivery time;
3.BV and SGS Assessed Factory
European type bow shackle
1. Size: 5mm to 50mm
2. Material: Q235
3. Surface: Electro-galvanized, HDG
4. Process: Drop forged
5. MOQ: 100 pieces
6. Delivery Time: Within 30 days
7. Package: Gunny bags/cartons/customized
8. Payment: T/T, L/C, Western Union
9. High quality, Competitive price and good service
10. Customers' special need is welcomed
11. Shackle Products: Bow shackle g209&g2130, d shackle g210&g2150
12. Other Products: Wire rope clips, turnbuckles, thimbles and forged parts

SWL(kg)	D(mm)	d(mm)	a(mm)	c(mm)	r(mm)	d(mm)	Approx 100 pcs/WT(kg)
80	5	5	10	19	8	11	1.9
100	6	6	13	25	10	14	3.4
200	8	8	16	32	12	18	7
320	10	10	19	38	16	20	13
520	12	12	25	51	19	26	26
800	16	16	32	64	28	33	50
1100	20	20	38	76	33	40	80
1500	22	22	44	89	37	50	130
2100	25	25	51	100	40	57	200
3000	28	28	57	115	47	68	310
3500	32	32	64	127	52	73	430
5000	38	38	76	152	63	85	700
7000	45	45	90	180	75	96	1250
8000	50	50	102	200	78	108	1750

Δ 2.Qing Dao Hisender Rigging  main products  include shackles,

clips, turnbuckles, load binders,hooks, eye bolts and nuts, wire

rope, chains, snap hooks, stainless steel and solid brass riggings etc.


Δ 3 . Rigging Hardware Shackle Other Type:


Screw Pin Anchor Shackle G-209

Round Pin Shackle G-213

Screw Pin Chain Shackle G-210

Round PIn Chain Shackle G-215

Bolt Type Anchor Shackle G-2130

Bolt Type Chain Shackle G-2150

Euro Type Large Dee Shackle Same Size Diameter Pin With Body

Euro Type Large Bow Shackle Same Size Diameter Pin With Body

Trawling Shackle With Square Head Screw Pin

Drop Forged Dee Shackle Italy Type

Grade 80 Dee Shackle With Bolt


Δ4. Mainly export to :


Europeancountries,USA,Canada,Australia, Japan,Korea,Singapore ,Dubai

India, Dubai and many other countries.



Δ 5. Capacity :

We have our own factory and we can control every step ourseves .


Δ 6.Samples:

Free samples can be posted if needed for check and test .



Δ 7. FAQ

a. Where is your location?


We are located in Qingdao City of China and are closed to

Airport. It takes 30 minuts by car from Liuting Airport our company.



b.Is OEM available?

Yes, OEM is available. We have professional designer to help

your brand promotion.



c. How can I get a sample to check quality?

After price confirmation, you can require for samples for check .



d. Are the products tested before shipping?

    Yes, all of our products were  qualified before shipping.


e. What's your quality guarantee?

We have different kinds of products which can meet different quality standard.

Hisender QC department will teset products before shipping.

Have 100% quality guarantee and will be responsible for any quality problem.


f. How about the delivery time?

Depend on  products and the quantity.

But generally 50-80Ton is about one month.



g. What's benefit will you bring?

   Your client satisfied on the quality.

   Your client continued orders.

You can get good reputation from your market and obtain more orders.




Δ 8. Advantages:


· China Leading Producing Technology

· Big Production Ability

· Fast Delivery

· Super High Quality

· Competitive Price

·  Production&  Export Experience From 2002

· Excellent Sale and After-sale Service

· OEM Available

Rich experience for international business, prompt delivery,

quality control, small orders are acceptable.


Δ 9. Quality Assurance:

A.Have own factory and we can control every step by ourselves .

B. ISO 9001: 2008 international quality system certification .

C.High-qualityworkers.First-class advancedequipment, good

   quality control,   advanced technology.

D.Providing various kinds of packaging according to customers

    requirements, conventional   packaging is sack and the tray.


Δ 10. Service Assurance :

1.Reliable quality

Excellent hardware product processing enterprise.Focus on Hardware

Producing from2002,supplying high quality hardware products to customers.

2.Competitive price

Can produce various kinds of products according to your request on

materials, technology, delivery etc. so the prices are different.

Little Profit, Long-term and Stable cooperation

Hope our little profit Win stable and long term cooperation.



3.Prompt delivery

Near to Qing Dao Port and Liuting International airport ,very convenient

for transportation.


4.Good reputation

If there is Quality Problem , we will bear full responsibility.

All charge in our side.


5.Free Samples for provided if needed .


6.Accepting Designated Inspections from customer if needed .


7.All questions can be reply within 4 hours timely by professionalsales.



Qing Dao Hisender Rigging Hardware With excellent geographical

location, exquisite technology,Professional skills, enthusiasm for the

service that shows the world its eternal vitality.

After many years of innovation and development, our company

specialized in hardware rigging products .

With the honest management, the unique creativity and sincere

service, we gets each customer's great appreciation.

Qing Dao Hisender Rigging Hardware will go on developing the new

designs, improving the production technology.

Sincerely welcome every friends to visit, wish a common development,

a successful cooperation and mutual benefit.


Good Reputation is much more Important than Golden.


QingDao Hisender Rigging Hardware is the best choice!
