| Prod Model: |
RM4011 |
| Power Type: |
Electric |
| Type: |
Core Drilling Rig |
| Condition: |
New |
Product Description

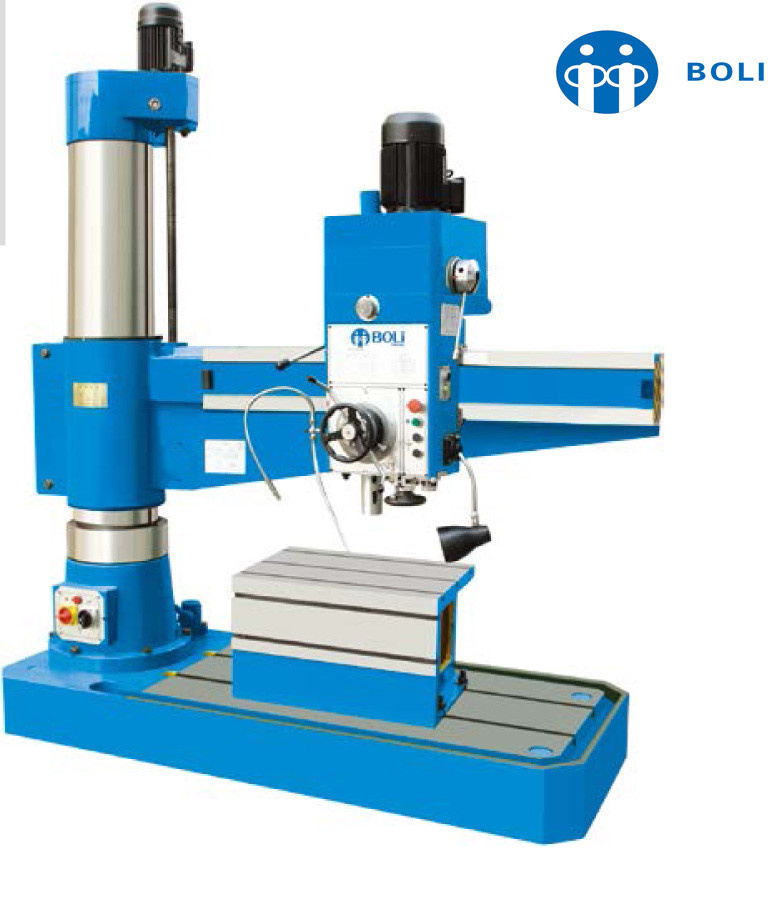

RM4011 Radial Drilling Machine
· Mechanical driven
· Mechanical clamping
· Mechanical changing speed
· Up & down by power
· Auto feeding
Standard Accessories:
> Rise block
> Taper sleeve
> Tool releasing wrench
> Drift
> Eyelet bolts
> Box work table
Optional Accessories:
> Quick instead chuck
> Tapping chuck
> Angle work table
Technical Parameters:
| Model No. | Unit | RM4011 | RM4014 | RM5016 |
| max drilling capacity | mm | 40(1.57") | 40(1.57") | 50(1.97") |
| distance between spindle surface to work table | mm | 260~1050(10.24"~41.34") | 260~1150(10.24"~41.34") | 260~1150(10.24"~41.34") |
| distance between spindle center to column center | mm | 360~1100(14.17"~43.31") | 360~1400(14.17"~55.19") | 360~1600(14.17"~63.00") |
| spindle travel | mm | 200(7.87") | 200(7.87") | 220(7.87") |
| spindle taper | | MT4 | MT4 | MT5 |
| spindle speed range | r.p.m. | 75,130,240,380,660,1200 | 75,130,240,380,660,1200 | 78,135,240,350,590,1100 |
| spindle steps | steps | 6 | 6 | 6 |
| spindle feed range | r.p.m. | 0.10~0.25 | 0.10~0.25 | 0.10-0.56 |
| spindle feed steps | steps | 3 | 3 | 6 |
| spindle rotary angel | ° | 360 | 360 | 360 |
| main motor power | kw | 2.2 | 2.2 | 4 |
| up & down motor power | kw | 0.75 | 1.5 | 1.5 |
| packing size | mm | 1500×705×2200 | 1800×810×2300 | 2170×950×2450 |
| G.W. | kg | 1600 | 2200 | 2800 |
Our company supplies different kinds of machines. High quality and favorable price. We're pleased to
Get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality
First, service first, continuous improvement and innovation to meet the customers" For the
Management and " Zero defect, zero complaints" As the quality objective. We have a good sales and
Design team for satisfy customer's inquire, all equipment must use higher standard for produce the
Machine. Before leave the manufacture, we have professional engineer will arrive
The factory for check each machine, confirm the quality, after get the engineer's
Agreement we will export the machine to customer
