| Price: | US $ 4000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | CTHB50 |
|---|---|
| Body Weight Incl.Chisel: | 479kg |
| Total Weight: | 1007kg |
| Size (L*W*H): | 2345*440*570mm |
| Hydraulic Oil Flow: | 80-110L/Min |
| Blow Frequency: | 150-170BMP |
| Chisel Diameter: | 100mm |
| Suit Excavator: | 10-15ton |
| Color: | Any Color Could Do, Normal Yellow, Blue |
| MOQ: | 1 Set |
| Payment: | Tt LC |
| Certification: | CE |
| Condition: | New |
| Type: | Hydraulic Breaker |
| MODEL NO . | CTHB50 BOX TYPE | =SOOSAN SB50 |
| BODY WEIGHT INCLUDE CHISEL | 479 | KG |
| TOTAL WEIGHT | 1007 | KG |
| SIZE (L*W*H) | 2345*440*570 | MM |
| HYDRAULIC OIL FLOW | 80-110 | L/MIN |
| HYDRAULIC PRESSURE | 150-170 | KG/CM2 |
| BLOW FREQUENCY | 350-700 | BMP |
| CHISEL DIAMETER | 100 | MM |
| SUIT EXCAVATOR | 10-15 | TON |
|
| suit excavator | Body weight (include chisel) | Total weight | Size (L*W*H) | Hydraulic oil flow | Hydraulic pressure | Blow frequency | Hose diameter | ||
| mm | excavator weight (ton) | kg | kg | mm | l/min | kg/cm2 | bmp | inch | |||
| CTHB10 (SB10) | 40 | 0.8-2.5 | 1/2 | ||||||||
| CTHB20 (SB20) | 45 | 1.2-3.0 | 71 | 129 | 1331*260*295 | 20-30 | 90-120 | 700-1200 | 1/2 | ||
| CTHB30 (SB30) | 53 | 2.5-4.5 | 89 | 155 | 1417-350*305 | 25-50 | 90-120 | 600-1100 | 1/2 | ||
| CTHB40 (SB40) | 68 | 4--7 | 156 | 361 | 1660*328*486 | 40-70 | 110-140 | 500-900 | 1/2 | ||
| CTHB43 (SB43) | 75 | 6--9 | 214 | 450 | 1712*328*486 | 50-90 | 120-150 | 400-800 | 1/2 | ||
| CTHB45 (SB45) | 85 | 7--14 | 282 | 733 | 2074*438*570 | 60-100 | 130-160 | 400-800 | 1/2 | ||
| CTHB50 (SB50) | 100 | 10--15 | 479 | 1007 | 2345*440*570 | 80-110 | 150-170 | 350-700 | 3/4 | ||
| CTHB70 (SB70) | 135 | 18--26 | 850 | 1898 | 2847*560*710 | 130-150 | 160-180 | 400-800 | 1 | ||
| CTHB81 (SB81) | 140 | 18--26 | 920 | 2004 | 2793*560*710 | 120-180 | 160-180 | 350-500 | 1 | ||
| CTHB81A (SB81A) | 140 | 18--26 | 956 | 2042 | 2793*560*710 | 120-180 | 160-180 | 350-500 | 1 | ||
| CTHB100 (SB100) | 150 | 27--35 | 1092 | 2457 | 3002*640*760 | 150-190 | 160-180 | 350-700 | 1 | ||
| CTHB121 (SB121) | 155 | 28-35 | 1313 | 2968 | 3075*640*760 | 180-240 | 160-180 | 300-450 | 1 | ||
| CTHB131 (SB131) | 165 | 30-45 | 1442 | 2916 | 3337*654*840 | 200-260 | 160*180 | 250*400 | 1.1/4 | ||
| CTHB140 (SB140) | 165F | 30-45 | 1590 | 3116 | 3337*654*840 | 200-270 | 160-180 | 250-380 | 1.1/4 | ||
| CTHB151 (SB151) | 175 | 35-50 | 1925 | 3906 | 3723*670*920 | 210-290 | 160-180 | 200-350 | 1.1/4 |

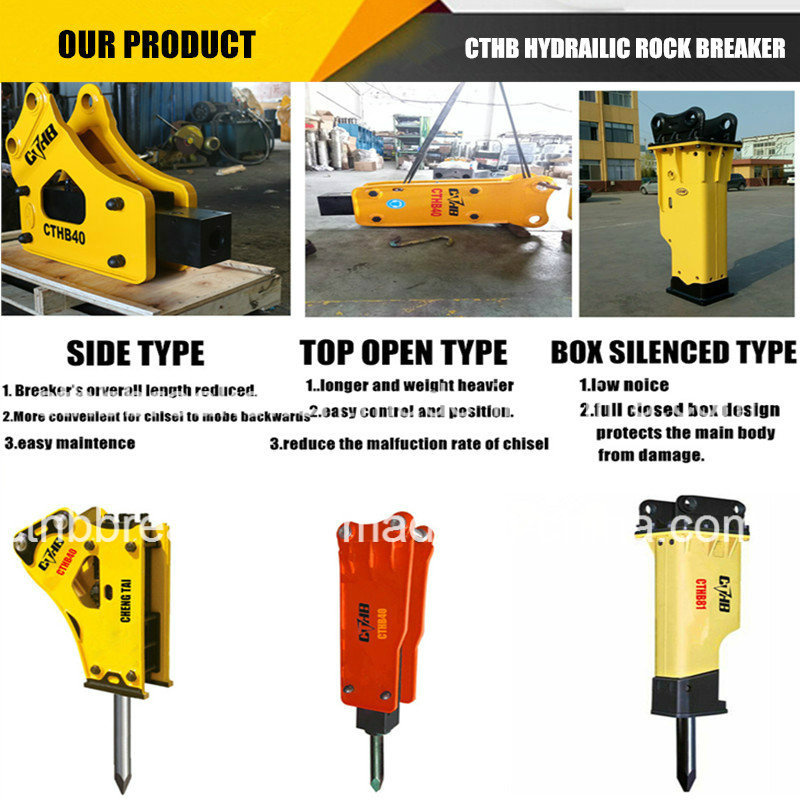

(1) Easy control, friendly used and easy position make it more convenient to excavator work.
(2) Top type outside bracket can highed up easily.
(3) the total length of breaker is higher than side type and box type, it is used for breaking high builidng or roof or something tall.
(4) The outside bracket for top breaker and Side breaker are easily for maintence.
(1) T/T payment at sight-30% of payment in advance, and 70% of payment before shipment.
OR LC at sight

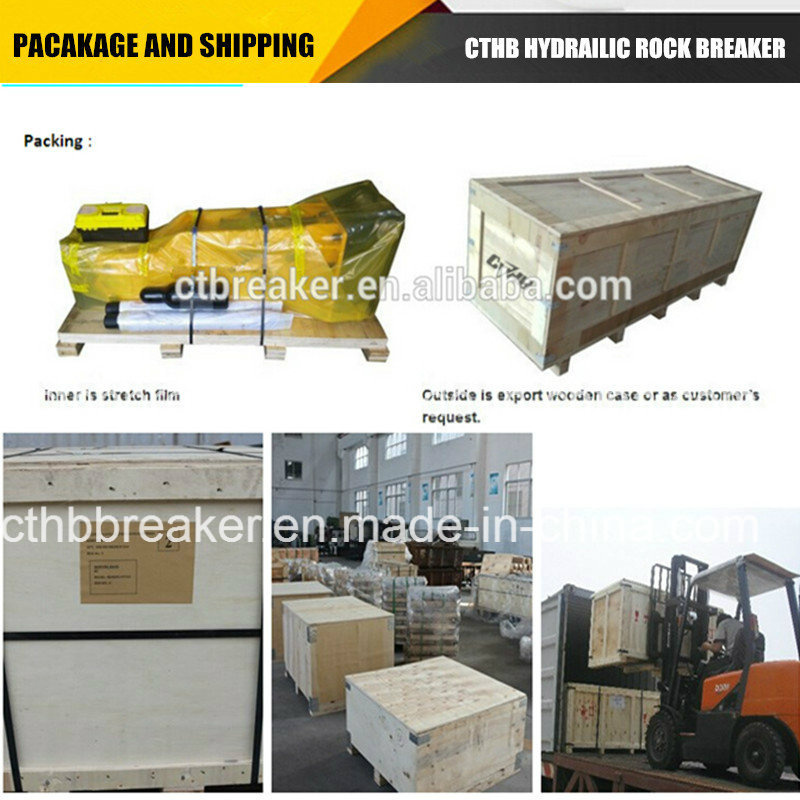

1.Inner is stretch film, outside is export wooden case or as customer's request
2.Delivery time:Usually 3-7days (1-5sets) after down payment.
3..We can arrange ocean or air transportation according to your request from any port of China.

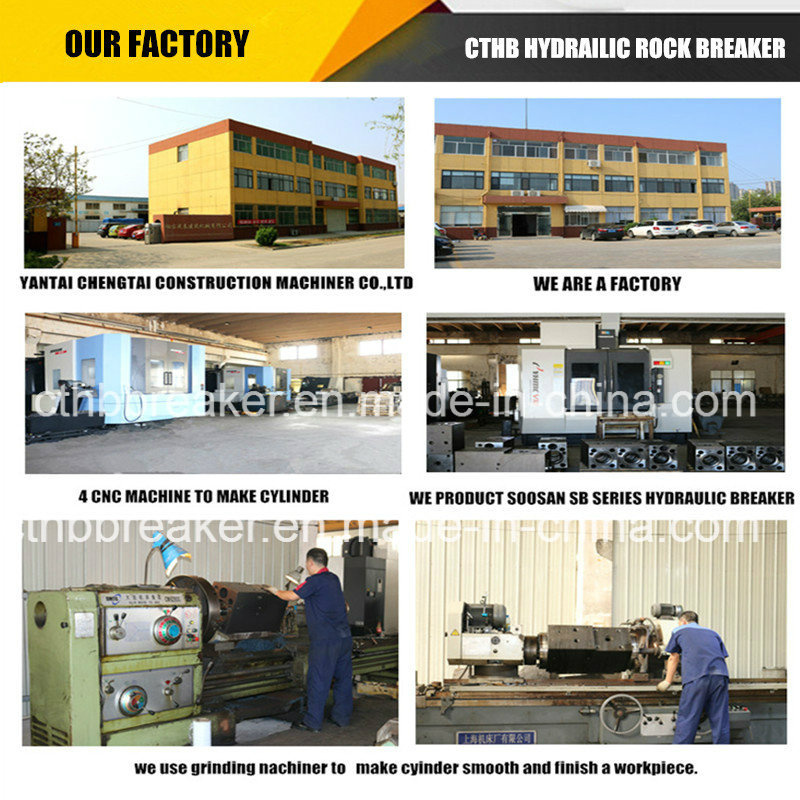

5.Company and our product
1.7Days*24Hours after-sales service
2.Your inquiry will be replied in 24 hours
3.Our customer-oriented sales and technical team are always at your service
4.OEM Service available
5.Warranty:12 months warranty for hydraulic breaker
12 months or (1500 hrs): Cylinder,Piston,Valve, Back head
(2) 06 month or (1000 hrs): Front head
(3) 03 month or (500 hrs): Front bush, Brackets
(4) 01 month or (100 hrs): Chisel Pin, Accumulator
Note: All the warranty covered from Invoice Date/ Hrs which ever is earlier and must for proper maintenance only
FAQ
1.What color can you produce ?
Yellow.If you need special, please advise.
2.How about the delivery time ?
Within 7-10 working days after receiving T/T payment.
3.What's the MOQ and payment ?
MOQ is 1 set.
T/T, L/C, Escrow, west union is accepted. and other terms can also be negotiated.
4.Are you a manufacture?
Yes, our factory in yantai ,shandong ,china
5.Can you produce according to customers' design?
Sure,we are professional manufacturer,OEM is available.
6.Which country have you exported?
America,Brazil,Mexico,Canada, Australia, Peru,Spain,Egypt,Pakistan, South Africa,etc.
7.How to buy my wanted products quickly?
Show me the model or the weight of your excavator, and we can give you best solution.
If you want to know the ocean freight,please also suggest your nearest port.
8.How about the package?
Standard wooden cases, or as customers' demands.
9.How about your service?
7Days *24Hours hot line and email service.
Well-Retrained and experience staffs will answer all your questions within 12 hours
