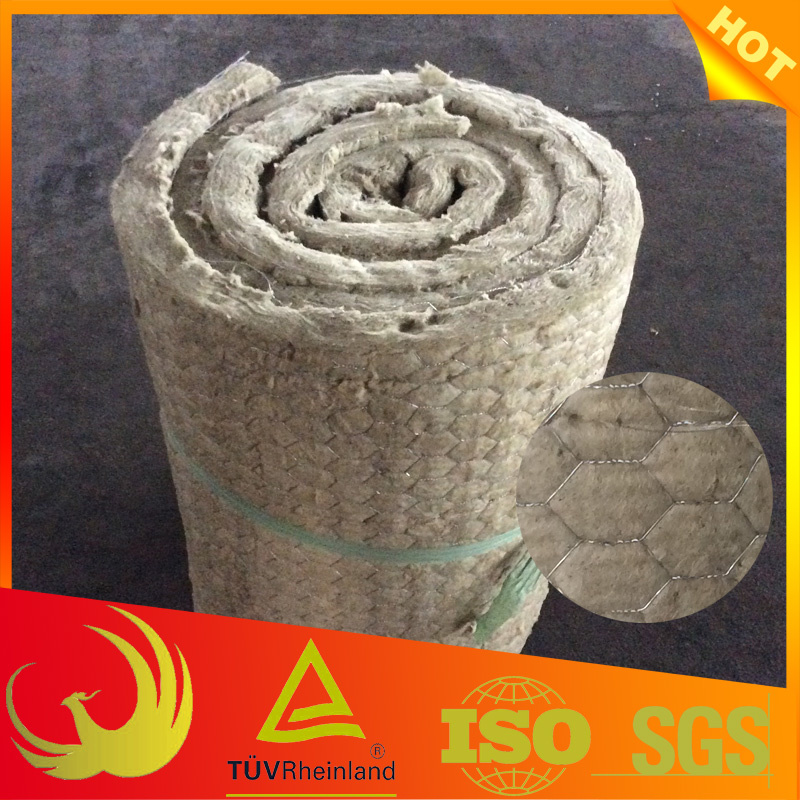

Rock-Wool Blanket Heat Insulation Chicken Wire Mesh
| Price: |
US $ 500-53540HC |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
140HC |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thermal Conductivity: |
Less Than 0.044W/Mk |
| Shot Content: |
Less Than 10% |
| Average Fiber Diameter: |
Less Than 7.0um |
| Burning Behavior: |
Incombustible Class A1 |
| Organic Content: |
Less Than 4.0% |
| Sound Absorption Coefficient: |
More Than 0.6 |
| Heat Load Temperature: |
Around 650 Degrees |
| Material: |
Basalt |
| Refractoriness: |
200-450??C |
| Surface Treatment: |
Glazed Tiles |
| Diameter: |
30mm-100mm |
| Apparent Density: |
60kg/M3-100kg/M3 |
| Usage: |
Industry Insulation, Exterior Tiles, Interior Tile |
| Color: |
Grey |
Product Description

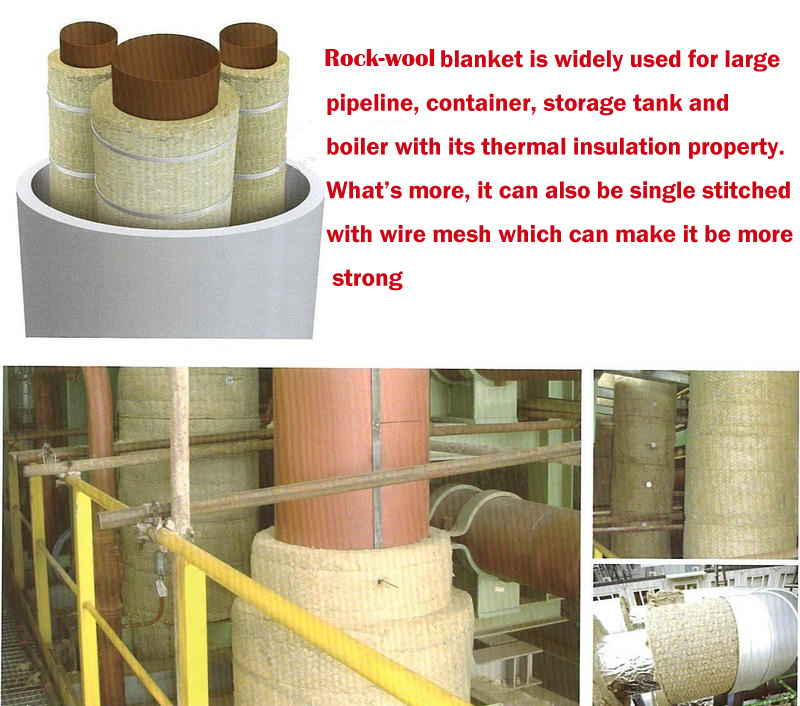

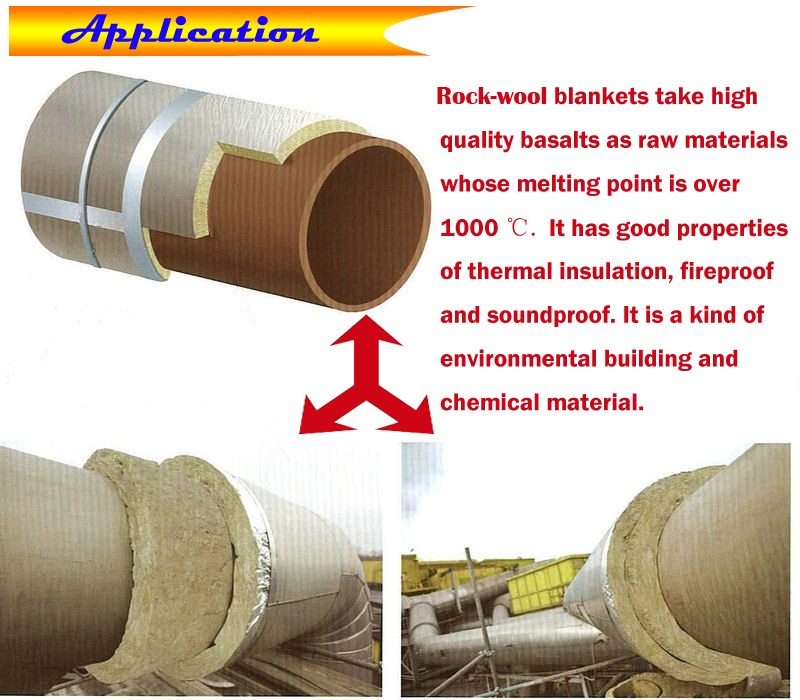

1, the introduction of rock wool blanketRock wool blanket uses high-quality basalt as raw material whose melting point is above 1000 ºC and has good effects on heat insulation and sound absorption. Rock wool blanket has good properties of fire resistance, pest proof, corrosion resistance, stable chemical property and do not contain asbestos. It is green environmental production and do no harm to human bodies. 2, the features of rock wool blanket2,1 Fireproof PerformancePhenix rock-wool products take basalt and dolomites as raw materials with the melting point of over 1000 degrees centigrades. It will not release any poisonous smoke and can effectively cut off the spread of flam when fire occues.2,2 Thermal Insulation PerformancePhenix rock-wool products has low thermal conductivity and excellent heat insulation performance because of its low shot content and spindly fibers. It can effectively reduce the heat loss of buildings to achieve energy-saving and emission-reduction.2,3 Waterproof Performancerock-wool products are waterproof, anti-aging and have good performance of long-term stability.2,4 Acoustic InsulationThe theory of acoustic insulation is that the fibers is porous and connected, it can not only stop the spread of sound waves but also absorb them. The acoustic insulation performance has been widely recognized all over the word. And the density is lower, the performance is better.3, the package of rock wool blanket4, the application of rock wool blanket Rock wool blanket is suitable for the large pipeline, container, storage tank and boiler of thermal insulation. It can also be single -stitched with wire mesh which can make it be more fixed and strong and can not be damaged.5, the specification of rock wool blanket | SN | Length
(+10/-5mm) | Width
(+10/-5mm) | Thickness
(+10/-3mm) | Density
(±15% kg/m3) |
| 1 | 3000~5000 | 600 or 630 | 30 | 80~100 |
| 2 | 3000~5000 | 600 or 630 | 40 | 70~100 |
| 3 | 3000~5000 | 600 or 630 | 50 | 60~100 |
| 4 | 3000~5000 | 600 or 630 | 60 | 50~100 |
| 5 | 3000~5000 | 600 or 630 | 70 | 50~79 |
| 6 | 3000 | 600 or 630 | 70 | 80~100 |
| 7 | 3000 | 600 or 630 | 80 | 40~90 |
| 8 | 3000 | 600 or 630 | 90 | 40~90 |
| 9 | 3000 | 600 or 630 | 100 | 40~90 |
| 10 | 3000 | 600 or 630 | 110 | 40~70 |
| When the thickness is 80mm-110mm and the density is 81kg/m3-90kg/m3, the rock wool blanket must have to be stitched with wire mesh. Otherwise, it will be broke when packed. |
6, the technical parameters of rock wool blanket | SN | Properties | Unit | Standard
Requirement | Test Result | Judge |
| 1 | Density | kg/m3 | ≥40 | ≥40 | Qualified |
| 2 | Shot Content
(grant size:≥0.25mm) | % | ≤10 | 6.3 | Qualified |
| 3 | Average Fiber Diameter | μm | ≤7.0 | 5.0 | Qualified |
| 4 | Thermal Conductivity
(70degrees) | W/m·k | ≤0.044 | 0.042 | Qualified |
| 5 | Organic Content | % | ≤4.0 | 2.9 | Qualified |
| 6 | Burning Behavior | - | Incombustible
Class A1 | Incombustible
Class A1 | Qualified |
| 7 | Sound Absorption Coefficient | - | ≥0.6 | 0.72 | Qualified |
| 8 | Heat Load Contraction
Temperature | degrees | ≥600 | 650 | Qualified |
We are a professional manufacturer, we have more than 3 years of experience in manufacturing and exporting.

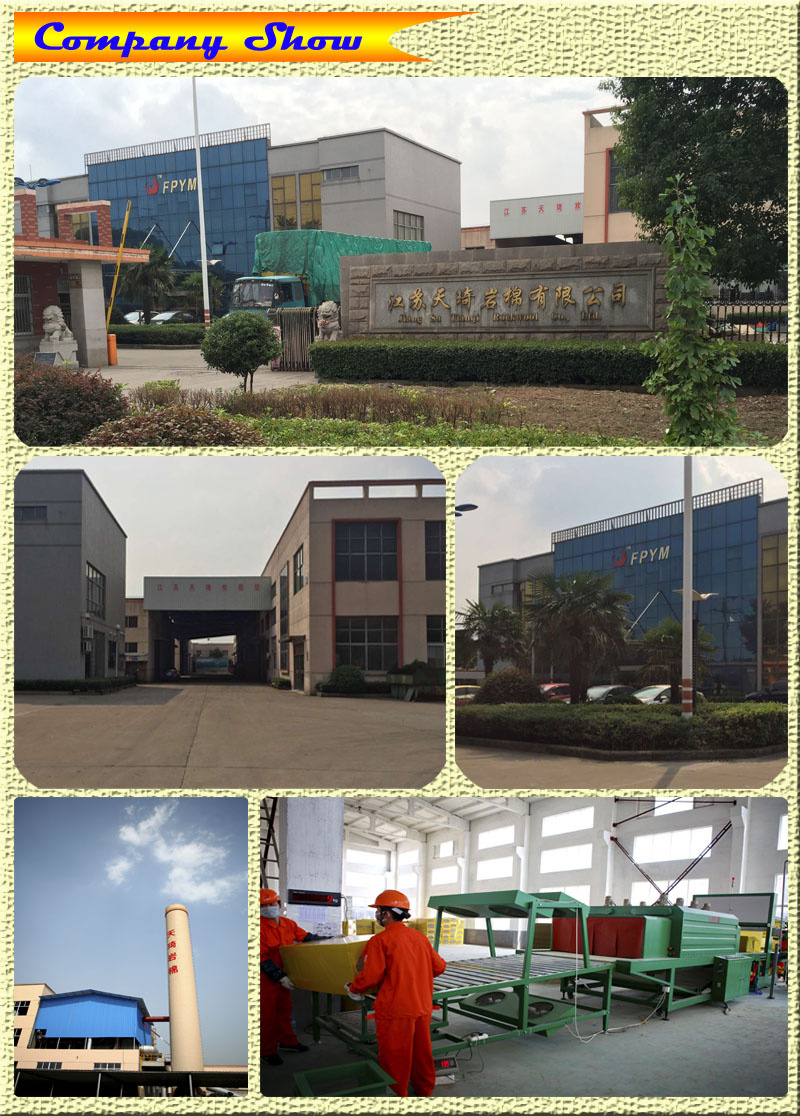

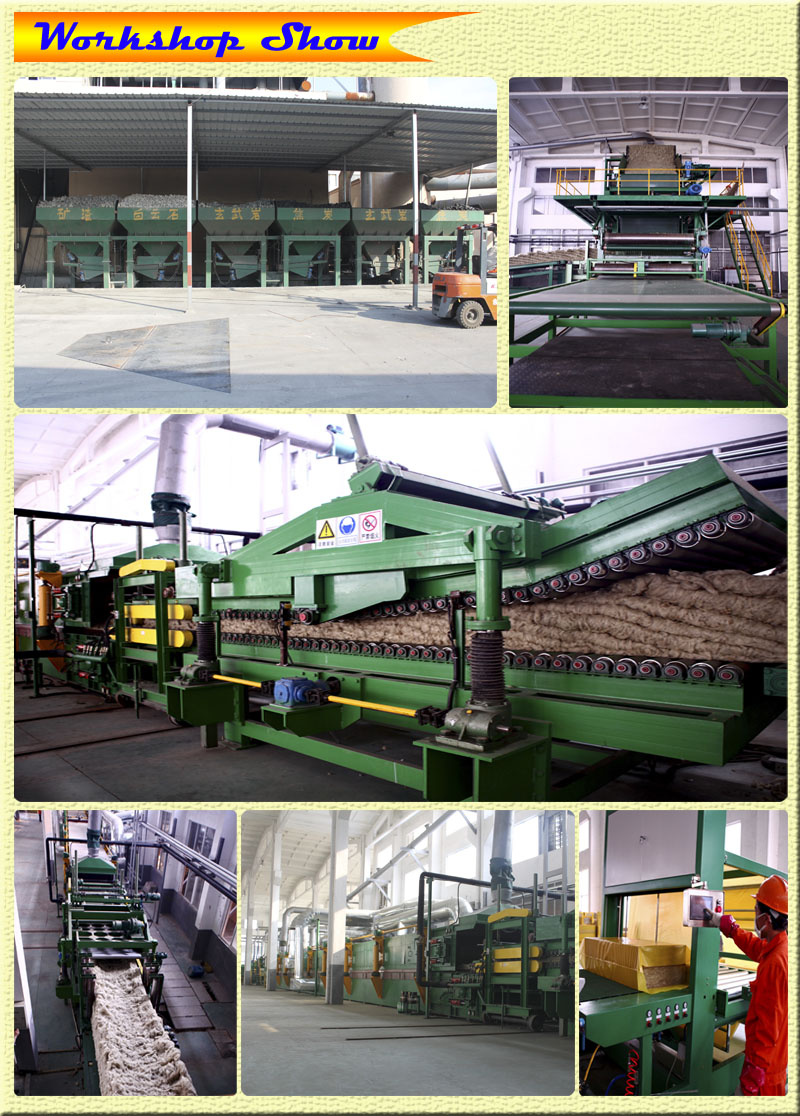

Jiangsu Tianqi Rockwool Co., Ltd. Was established in June 2011 and covers an area of 27, 500 square meters. It is located at No. 128 HengFu Road, HengShanQiao Town, ChangZhou City, JiangSu Province, China, which is in the Hengshanqiao exit of Shanghai -Jiangsu highway with convenient transport. Our company is specialized in manufacturing all kinds of high-quality rockwool products and it has the most advanced external wall thermal insulation rockwool production line. Annual production capability reaches 25, 000 tons for high-quality rockwool boards.
High-quality natural rocks such as basalt and dolomite are used as the main raw materials. Our company is capable of supplying rockwool products including external thermal insulation rock wool board, high-strength rockwool roof board, rockwool sandwich board, curtain wall with rockwool board, rockwool fire barrier strip and rockwool blanket.
It is equipped with complete inspection and testing equipment. The company not only has complete and scientific quality management system, but also has a professional and dedicated service tem.
