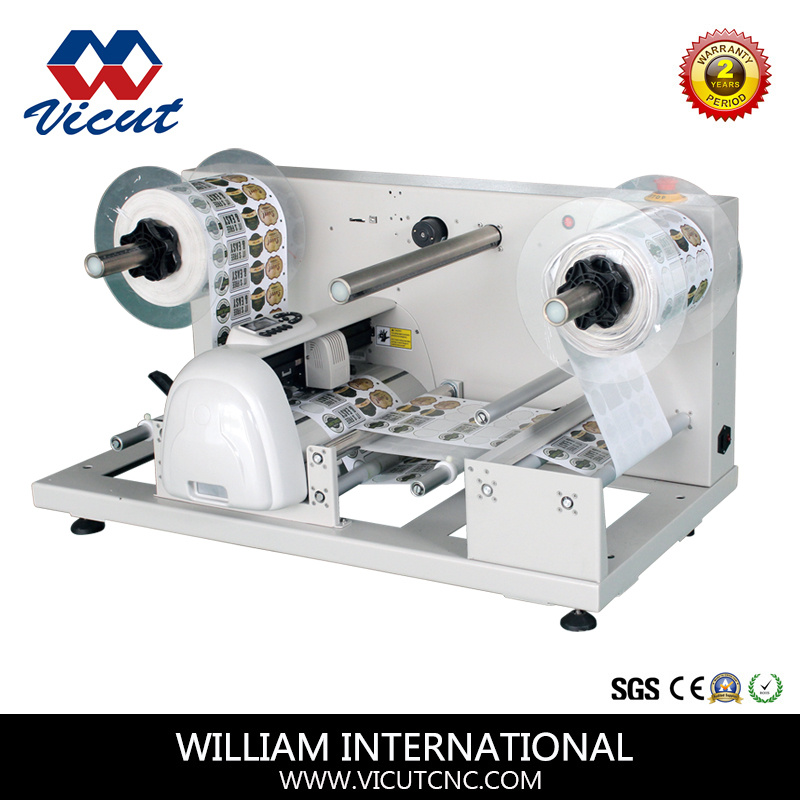

Roll Label Cutting Machine Red Light Label Cutter Vct-Lcr
| Price: |
US $ 5400/Piece |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
VCT-LCR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Power: |
25W |
| Max Cutting Length: |
300mm |
| Max Cutting Width: |
200mm |
| Max Down Force: |
750g (3G/Step) |
| CPU: |
64 Bit DSP 32m Flash |
| Repeating Precision: |
0.082mm |
| Noise: |
Noiset 35 dB or Less |
| Ambient Temperature: |
5 - 35 Centigrade |
| Max Cutting Straight-Line Speed: |
960mm/Min |
| Packing Size: |
114X70X80cm |
| Classification: |
Single-blade Cutter |
| Driven Type: |
Manual |
| Blade Material: |
Stainless Steel |
| Computerized: |
Computerized |
Product Description
Roll Label Cutting Machine Red Light Roll Label Cutter
Features:1. It can be compatible with any roll to roll label printer. 2. It can realize contour cutting automatically with the assistance of red light positioning system. This system can sense the printed mark point to realize accurate cutting.3.User-friendly designed operating software "label studio" can easily make file for printing and cutting by one step and help you save materials when massive production.4. Label Studio software: designed by Australia DragonCut Company, combined the functions of making layout for printing and cutting. The distance between each label can be adjusted easily, avoiding material waste. You can use it make file in PDF to be printed on any roll to roll label printers.5. It also can sense different media's light-reflection to adjust sense sensitivity by itself to upgrade the cutting precision.6. With auto feeding system and waste-removal system, can realize label making automatically with high efficiency.7. This machine is featured as fast and precise cutting for kinds of different labels, very suitable for small production. Application:Field: advertising industry, decoration industry, packing industry etc.Material:
stickers, glossy paper, PET, PP, PVC, PC, Wall Paper etc.
Technical Parameters:| Machine Model | Roll Label Cutter VCT-LCR |
| Max. media feeding size | 16" (406mm) |
| Max. cutting width | 12"(305mm) |
| Max. cutting length for one time | 6" (300mm) |
| Max. cutting straight-line speed | 37.8" /s (960mm/s) |
| Max. cutting curve-line speed | 23.6"/s (600mm/s) |
| Motor power | 25watt |
| Max. down force | 750g (3g/step) |
| CPU | 64 BIT DSP 32M Flash |
| Repeating precision | 0.082mm |
| Noise | 35 DB OR LESS |
| Compatible software | Label Studio from DragonCut |
| Software functions | 1) Automatic offset sensor;
2) automatic inductive value;
3) control identification mark. |
| Ambient temperature | 5 - 35 degrees |
| Support File Format | HPGL commands |
| Packing size | 38.6"x28"x18.1" (980x710x460mm) |
| G.W / N.W | 110/75kgs (154.3lb/121.3lb) |
| Packing size | 114*70*80cm |
Our Value and Obligation:1) Do business with integrity. No cheating and deception.
2) We are committed to offer high quality products.
3) We are committed to provide professional and efficient premium services.
4) If you are or will be a distributor, we are willing to help you develop new markets, enhance performance.
5) If you are the end user, we will help you choose the right products and offer life-time technical support.
Quality Control:1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.
Warranty:- Two years warranty for the whole machine; Lifetime Maintenance.
- Within warranty period, any damage happens due to machine quality problems; VICUT will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
- If any part damaged is not in warranty period, VICUT will repair it for free.
- Customer has to pay the International Express cost.
- Warranty time starts after goods arrival in customer's location.
After-sale Service:1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.
2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, or team-view, etc.
3. Offer free training for operation & maintenance of equipment in our factory.
4. Offer On-Site paid service for machine installation and technical training. Customer need to pay visa application cost, air ticket cost, local hotel & food cost, and service cost is 80USD per day.
5. We will make return visit non-scheduled, in order to make assessment for after-sale service technician, make sure our service more and more better.
Company Introdution:WILLIAM INTERNATIONAL is a Chinese manufacturer of CNC router, label cutter, flatbed cutter, Laser marking machine and cutting plotter, having its own manufacturing base and official license for export & import business.
Our brand
(VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.
Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.
Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.
Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.
CNC Engraving and Cutting Solution Provider
WILLIAM CNC is a Chinese manufacturer of CNC router, Laser marking machine, label cutter, flatbed cutter, and cutting plotter, having its own manufacturing base and official license for export & import business. Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.
With our CNC router or laser marker, you can cut, carve, or mark on many kinds of materials, such as wood, acrylic, metal, stone, foam, glass, plywood, MDF, PVC, ABS, etc. With our flatbed cutter, label cutter or cutting plotter, you can make digital cut on vinyl adhesive, reflective film, craft paper, sandblast membrane, stickers, cardboard, plastic board, rubber sheet, marking film, PET, PP, PVC, PC, wall paper, coated paper, glossy paper, paper jam, etc.
Remember that each solution can be customized for your particular needs. So no matter what you cut, engrave, or mark, we can configure a machine to suit your applications and budget. We also welcome overseas agents to join the growing families of VICUT.
Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.
Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.
Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.
Quality Assurance: Strict whole process quality control and management during procurement, manufacturing, packing, and shipping. Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, Dragoncut software, etc.
Transportation: Welcome to visit our company. By fast train, it takes about three hours from Shanghai or Qingdao, two hours from Wuhan, one hour from Nanjing. By plane, needs less than 2 hours from Beijing or Guangzhou. Any port in China can be used for shipment, and Shanghai or Nanjing port is more closed to our factory.
