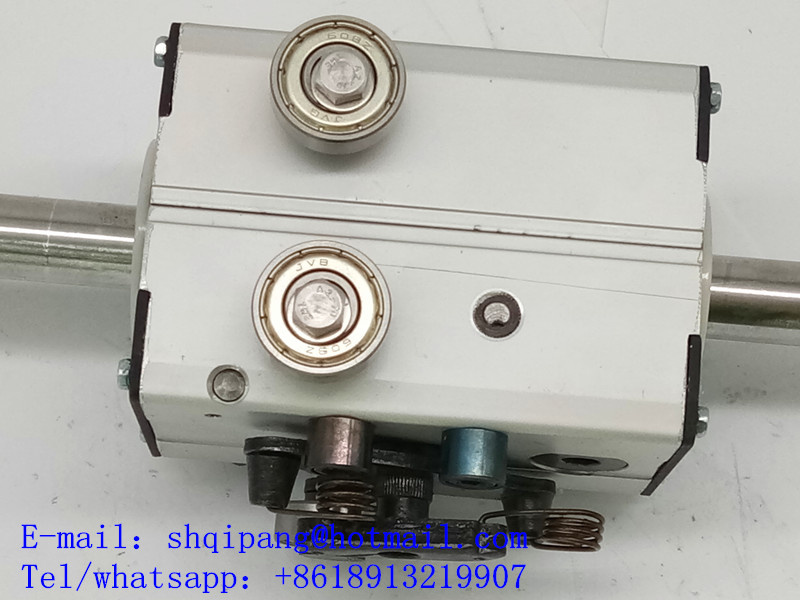

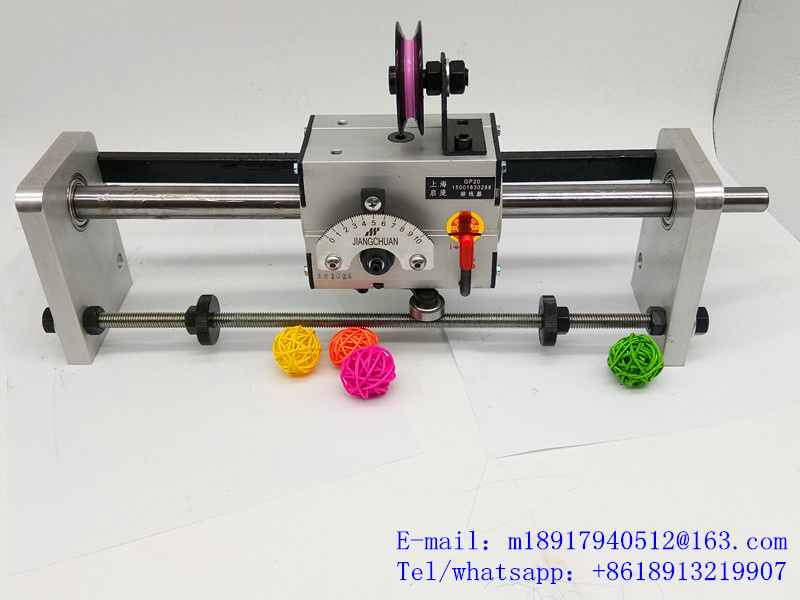

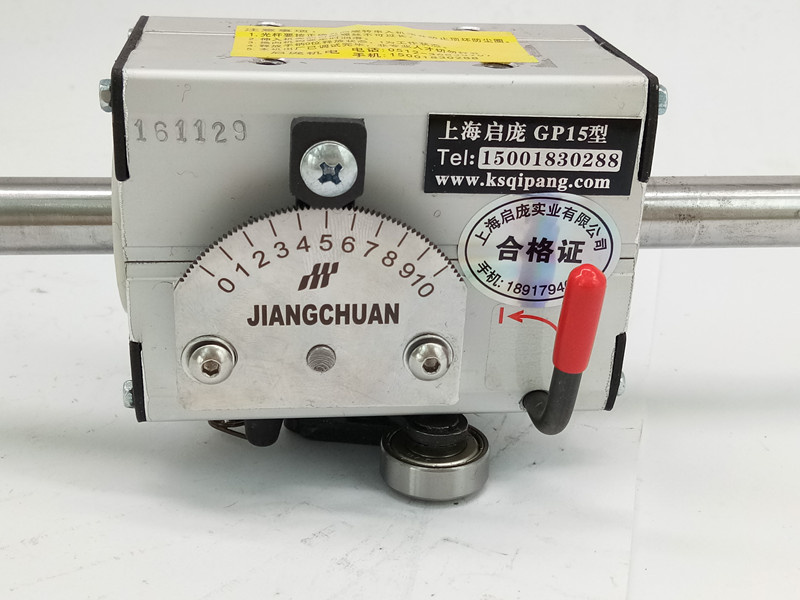

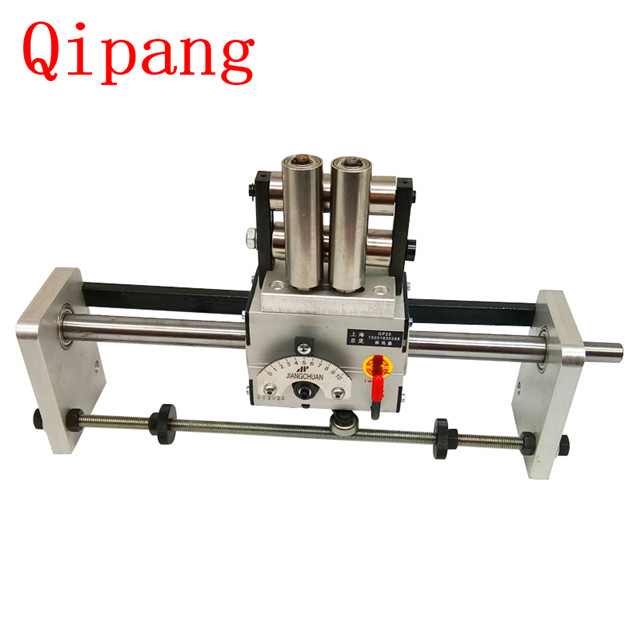

Rolling Ring Drives From Other Machine Tools Accessories Gp20c
| Price: |
US $ 120/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Description
Rolling ring drives for GP3 | Model NO: | Linear Pitch
mm/r | Axial Thrust
KG | Weight
KG |
| GP3-15 | 0-11 | 11 (110N) | 0.9 |
| GP3-20 | 0-16 | 16 (160N) | 1.8 |
| GP3-22 | 0-17 | 16 (160N) | 2 |
| GP3-25 | 0-21 | 21 (210N) | 2.7 |
| GP3-30 | 0-25 | 26 (260N) | 2.8 |
| GP3-40 | 0.5-32 | 42 (420N) | 11 |
| GP3-50 | 1-40 | 70 (700N) | 32 |
| GP3-60 | 1.5-48 | 100 (1000N) | 42 |
Rolling ring drives for GP4 | Model NO: | Linear Pitch
mm/r | Axial Thrust
KG | Weight
KG |
| GP4-15 | 0--11 | 22 (220N) | 1.5 |
| GP4-20 | 0--16 | 32 (320N) | 2 |
| GP4-30 | 0--25 | 52 (520N) | 3.7 |
| GP4-40 | 0.5-30 | 84 (840N) | 13 |
| GP4-50 | 1-40 | 140 (1400N) | 38 |
| GP4-60 | 1.5--48 | 200 (2000N) | 45 |
We are producing and selling: rolling ring drives, linear drives, linear drives nut, wire straightener, automatic wire straightening and cutting machine, automatic coiling & packaging machine, drawing and rolling machine, automatic yarn winding machine and accessories for rolling ring drives.

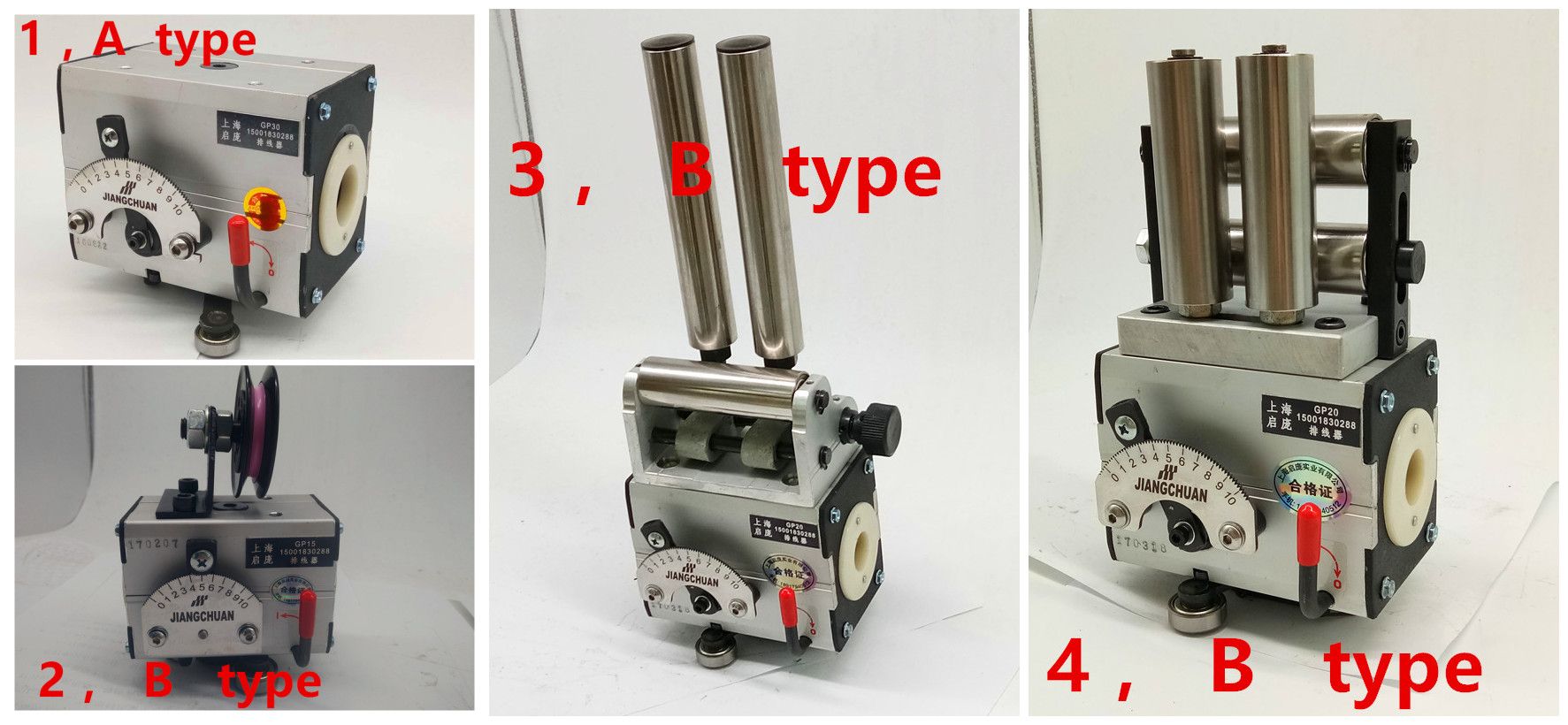

A Series :Rolling ring drives Type A Series just have one Rolling Ring linear drive , which are divided into eight types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.
B Series: Rolling ring drives Type B Series just have One Rolling Ring linear drive with Guide Rollers or Guide Wheel , which are divided into six types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.

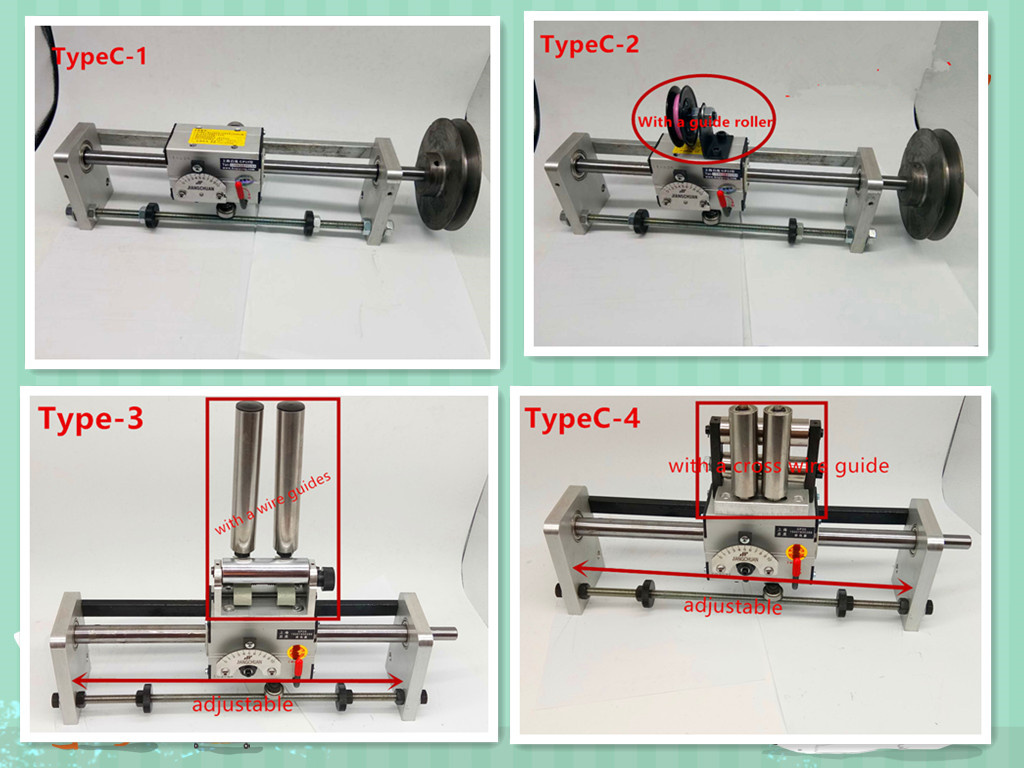

C series : Rolling ring drives Type A Series just have One Rolling Ring linear drive with accessories, such as shaft,guide roller,bearing block,steady bar,etc , which are divided into eight types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.
1. Kunshan rev pang mechanical and electrical equipment Co., Ltd is specialized in the production of polished rod domestic wiring device manufacturers, is located in kunshan international flower bridge development zone, the factory technical force is abundant, the strong independent development. Product design is reasonable, the performance is perfect, the factory for many years continuously upgrade, the technique and technology and the introduction of Germany this year, produce aluminium alloy material of the third generation of products, performance is more outstanding, more beautiful models. Precision is high, the infinite speed, instantaneous commutation, high-speed work, good housing assembly easy disassembly, to our factory: " Quality first, credit first, customer first" For business purposes, to establish and perfect the huge sales and service network, providing customers with quick and convenient services, over the years products have been in the domestic leading position, we warmly welcome new and old customers work together to create a better future.
The main business scope: JZD series straightening device, GP series polished rod thread
2. GP15-60 type of polished rod wire - some (series ribbon cable, type B series ribbon cable, C series, rows of three poles platoon line, parallel bars, rows of make to order according to the drawing wiring, iron shell ribbon cable, aluminum wire)
3, Coiling machine winding machine
4, Automatic winding machine for ribbons
Atuomatic coiling packaging machine
5, Qi Pang Industrial Co., Ltd is a professional manufacturer which is specialized in making rolling ring linear drives (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), The company is located in the JiaDing district, Anting Town, which is the world financial center in jiangsu
6, Take-up machine and paying off machine
7, Wire guide accessories linear drive nut
8,
High-speed automatic wire-arranging coiler is suitable for coiling of 0.5-6mm2 cable wires and a small section cables. It is characterized by high production efficiency and superiority in high quality wire-arranging among its peers.
Wire coil winding machine
1. Automatic wire-arranging: The take-up rate is 2-3 times that of traditional models.
2. Rapid coiling installation: Loop after being coiled can be removed quickly and easily, reducing labor intensity an saving time.
3. Three processes of wire coiling, reeling and plastic film packaging by one person can reduce the labor intensity and labor costs.
4. The wire tension in wire-arranging can guarantee that the wire-arranging space will not be affected by cable diameter and wire-arranging is in order and in better quality.
The use of automatic wire-arrange won't be affected by manmade faction.
The use of automatic wire-arrange won't be affected by manmade faction.
With over 10 years of experience in this industry, Shanghai Qipang Co., Ltd. Understands the needs and expectations of our customers well and we strive to accommodate them. We take pride in our work and you can trust our ability to get your job done right at the first time. With a courteous and knowledgeable Sales Team, we can answer any of your questions or concerns with confidence and our service technicians are trained to understand all of the dynamics of the quality equipment we sell and serve, guaranteeing customer satisfaction every time.
Qipang has developed a vast collection of polished shaft rolling ring drives, wire straightener,
Wire straightening and cutting machine, linear drive nut, wire guide accessories, Take-up machine and paying off machine
Automatic winding machine for ribbons automatic coiling With the accumulated expertise and versatile service unit and the totally development of product based on customers' requirements, Qipang services are provided for the customers around the world.
Our number one priority is you and we are not afraid to show it
