Roof Shape Segment for Diamond Core Drill Bit

Name: Roof Shape Segment for Diamond Core Drill Bit
Brand: tool-buy.com
SKU: 728252902
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	US $ 1/Piece
Min Order:	30/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Quanzhou Best Diamond Tools Co., Ltd.

Showroom Product Company Profile

Prod Model:	BT84

Product Description

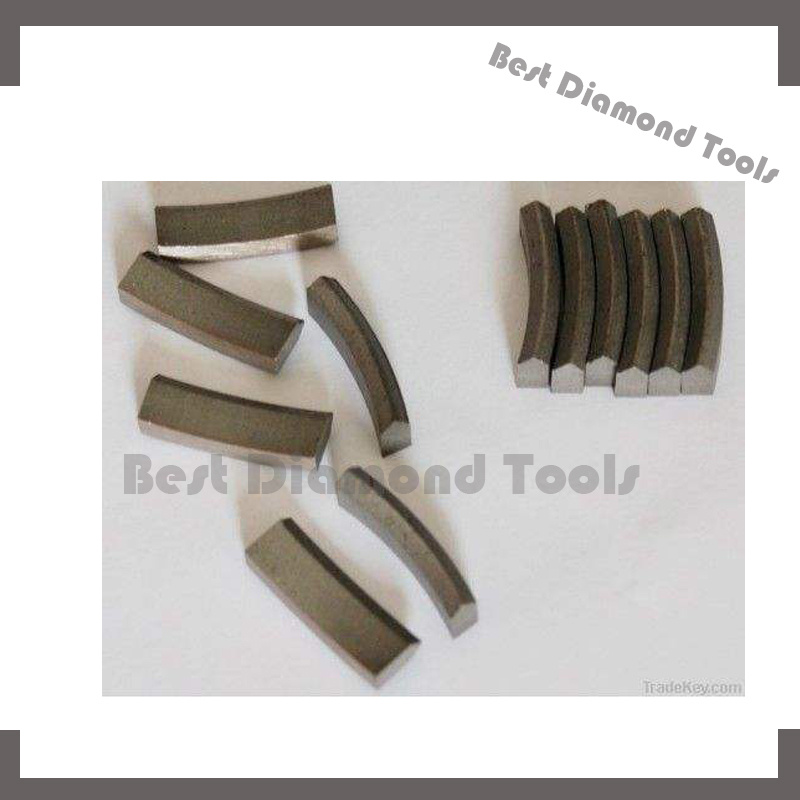

Roof Shape Segment For Diamond Core Drill Bit

Specifications

advantage:
1. easy welding
2. totally flat face
3. not even tiny jumping when drilling
4. fixxed segment gaps

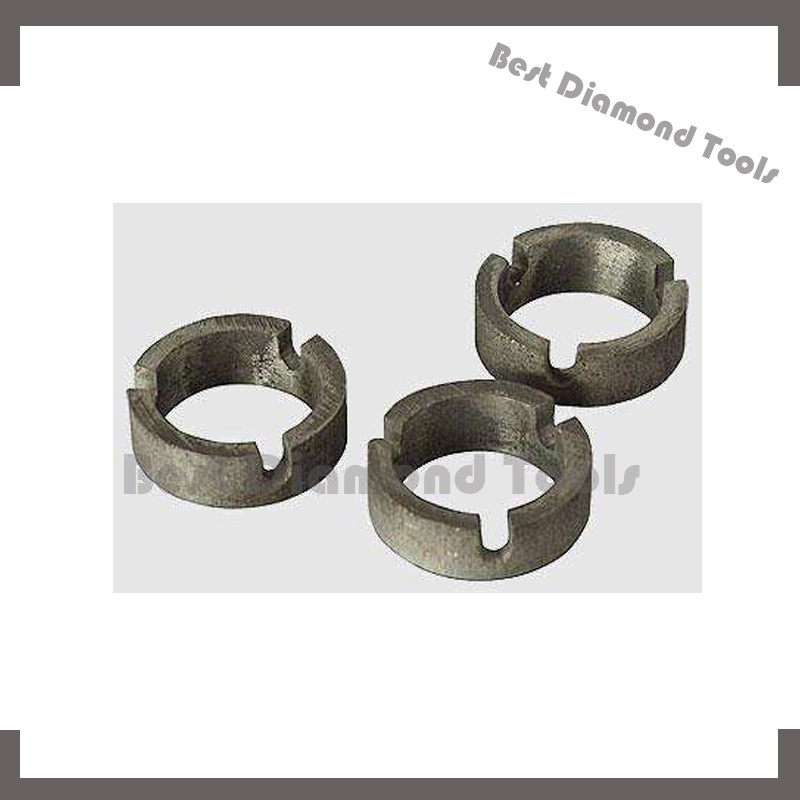

Sang Crown Segment for Core drill bit, fast drilling speed, long lifespan

advantage:
1. easy welding
2. totally flat face
3. not even tiny jumping when drilling
4. fixxed segment gaps

the under is our core drill, segments (tips) for all of them are available.

crown is available for Diameter 6 to 100mm.

**More Specifications, for stone and concrete separately

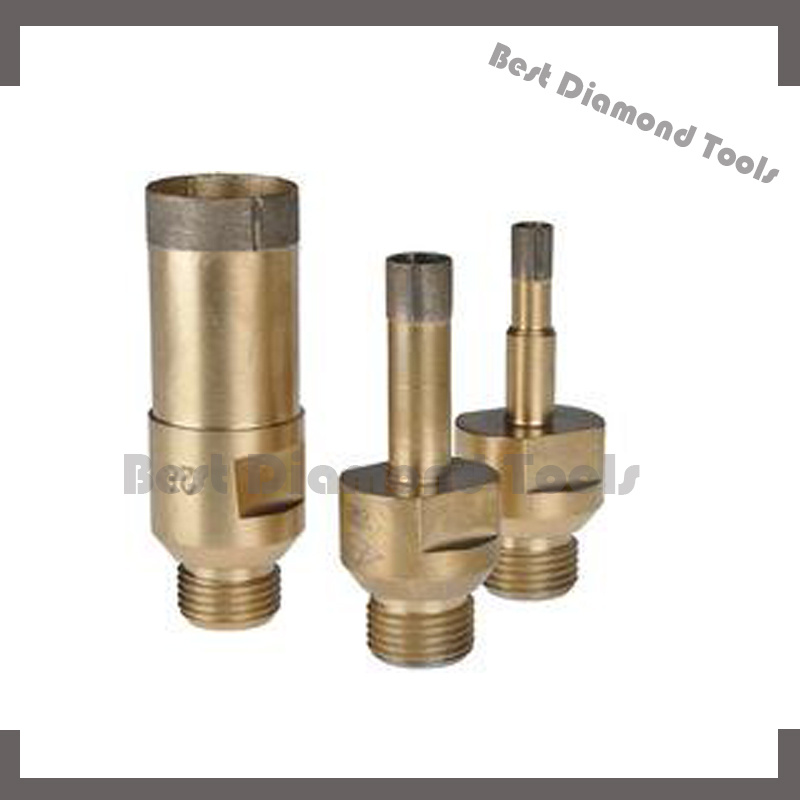

Diamond Drill bit
Outer diameter		Working length		Segment height		Thread
inch	mm	inch	mm	inch	mm
0.24	6	1.97	50	0.39	10	G1/2", 5/8"-11
0.31	8	2.36	60
0.39	10
0.47	12
0.55	14
0.63	16
0.71	18
0.79	20

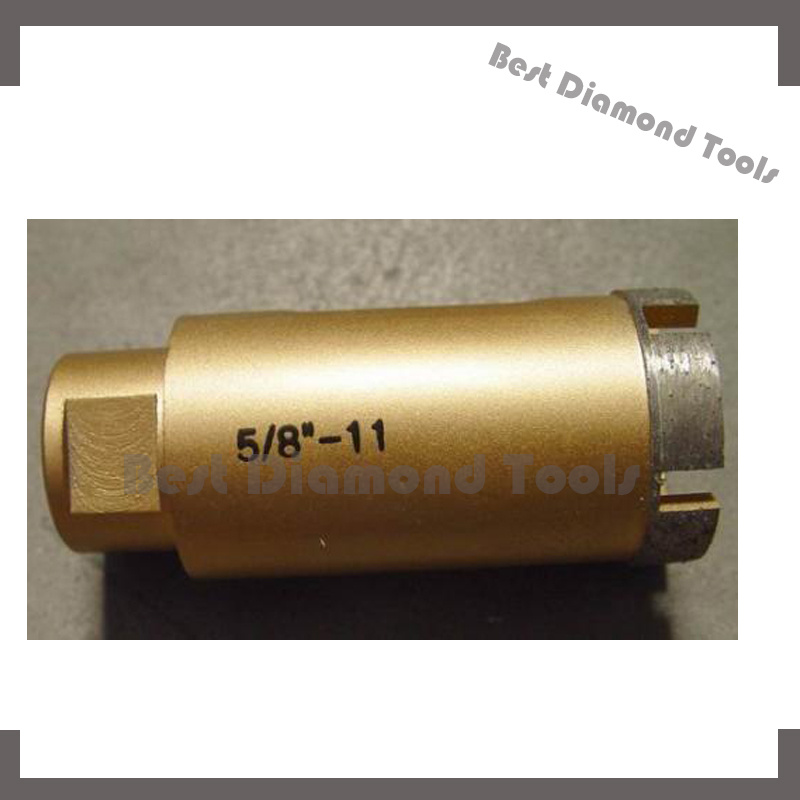

Diamond Core Drill
Out Diameter		Working Length		Segment Hight
(mm)	(inch)	(mm)	(inch)	(mm)	(inch)
25	0.98	60	2.36	8	0.31
30	1.18	60	2.36	8	0.31
35	1.38	60	2.36	8	0.31
40	1.57	60	2.36	8	0.31
45	1.77	60	2.36	8	0.31
50	1.97	60	2.36	8	0.31
55	2.17	60	2.36	8	0.31
60	2.36	60	2.36	8	0.31
70	2.76	60	2.36	8	0.31
75	2.95	60	2.36	8	0.31
For drilling stones, concrete and brick walls, etc.

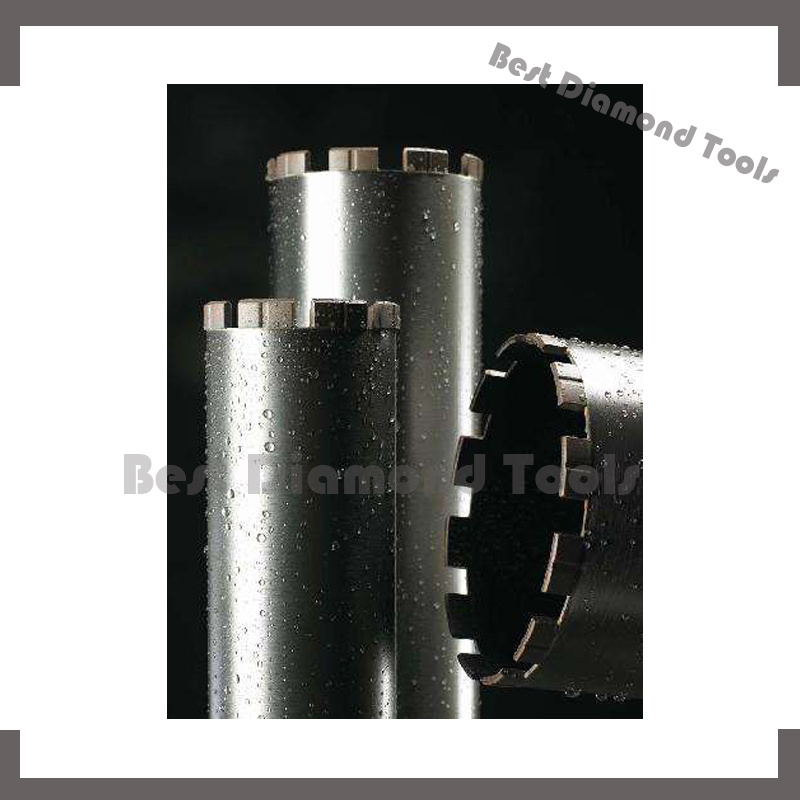

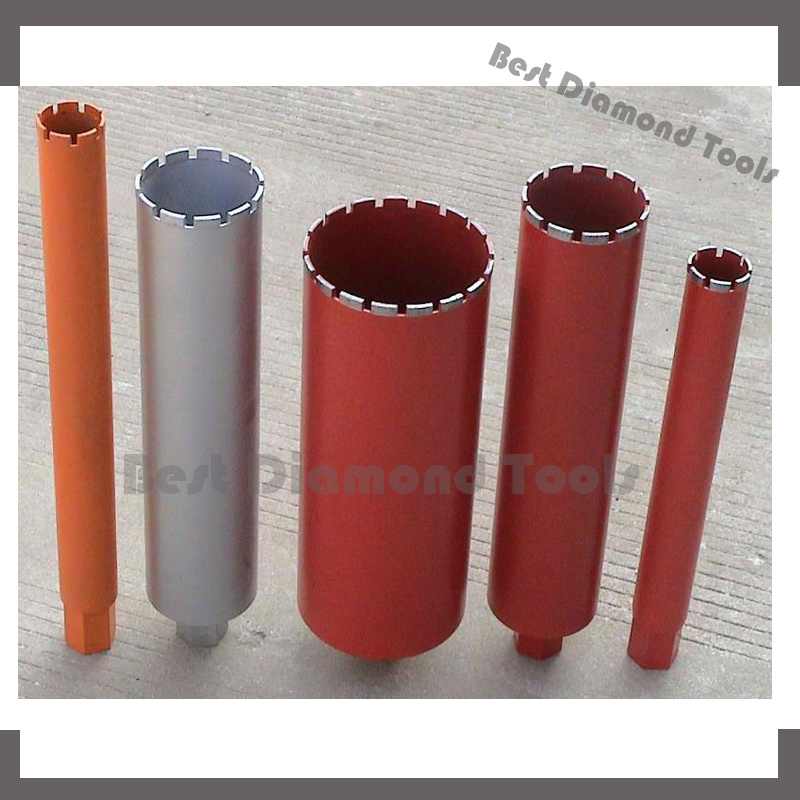

**Big diameter core drill with more working length:

Diameter (mm)	working length 1 (mm)	working length 2 (mm)	working length 3 (mm)	segment height (mm)	connections
82	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
92	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
100	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
112	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
122	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
127	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
152	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
178	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
200	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
225	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
252	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
300	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
305	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
352	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
400	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
450	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
505	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
550	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16
600	360	400	450	10	1-1/4",5/8-11" G1/2" M14 M16

customized specification is available.

BEST Diamond Tools is Focusing on provide High quality diamond tools For Stone and concrete filed, apply to cutting grinding and polishing.

Main products: Diamond cutting disc, diamond segment, diamond wire, diamond fickert, fankfurt,

Polishing pad, metal bond segment or grinding pad for concrete grinder machine, drill bit, core drill,

Profile wheel, brush, resin bond polishing toos etc.

Advantage:

1. Newly technology.

2. Quality and inspection.

3. Reply your inquiry within 12 hours

3. Experienced exporting team.

4. Delivery in time.

5. After sales service.

Exporting market include Europe, South America, North America, Asia etc.

Aim to provide to clients fast speed, long durability tools, to save their energy, electricity, labour cost, maintainance fee.

We cherish our clients investment and their friendship. Best is an atitude of doing best efforts, an atitude of never compromise for quality and service, Best diamond tools will be your satisfy partner in China.
