| Prod Model: |
WS-25T |
| Disesl Engine Power: |
130kw/2200rpm |
Product Description
Diesel Engine Power: 132KW
Engine Brand: Dongfeng Cummins
Mud Pump Displacement: 250L/min
This fabulously designed drill is easy to operate with a wide range of functions. Made up of diesel engine, power unit, hydraulic system, mud pump, lift, cylinder, operation table and so on, it is very commonly used in constructing buildings, highways and railways.
SM Series rigs are widely used in boring holes for water supply piping, telecommunication, electricity, gas, oil, etc. Where surface excavation is not allowed or impractical. It is suitable for soil conditions with sand, clay, gracvel, etc. And most non hard-rock areas.
Main configuration and special features
--- Powered by Dongfeng Cummins Engine, delivering powerful and stable performance
--- 250L/min high pressure mud pump
--- Tracked flexible chassis can withstand high loads without damaging the road
--- Compact structure with complete set of functions and safety features. Strong hill climbing capability
--- User friendly electric circuit of sensible ensures low failure rate and easy repair.
--- Main parts employ well-down brands, ensuring reliability
| SM 25T SAND DE MOLE | Specification |
| Diesel Engine power | 132KW |
| Torque | 8000N· m |
| Rotation speed | 0~120r/min |
| Pullback | 250KN |
| Push thrust | 250KN |
| Range of drilling angle | 7° ~22° |
| Mud Pump displacement | 250L/min |
| Drill pipe | Φ 73× 3000 |
| Dimension | 5400mm(L)× 2100 mm(W)× 2200 mm(H) |
| Weight | 7000Kg |
| Climbing angle | 18° |

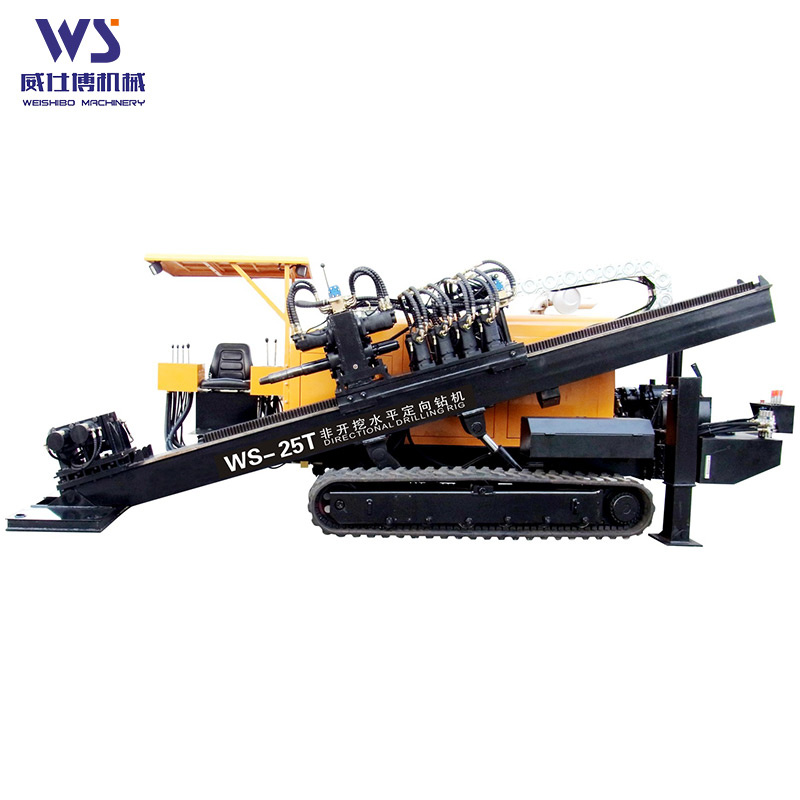

WS - 25T, horizontal directional drilling using high strength rubber crawler chassis, unibody design, mobile convenience, strong maneuverability: motivation to choose history period engine, dynamic, stable and reliable performance.Power head use shuangli head design has a shackle to sliding mechanism, in order to reduce the wear and tear on the drill pipe thread, easy to operate and reliable.Feed back to adopt gear, rack, push pull the same, is advantageous for the long distance control to.Full hydraulic pressure drive, centralized control, convenient operation, flexible.
