| Prod Model: |
DV-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Rotational Electronic Digital Viscometer |
| Viscometer Type: |
Rotary |
| Viscometer Rotor Number: |
4 |
| Viscometer Rotor Speed: |
60r/min |
| Viscometer Rotor Specifications: |
4 Size |
Product Description

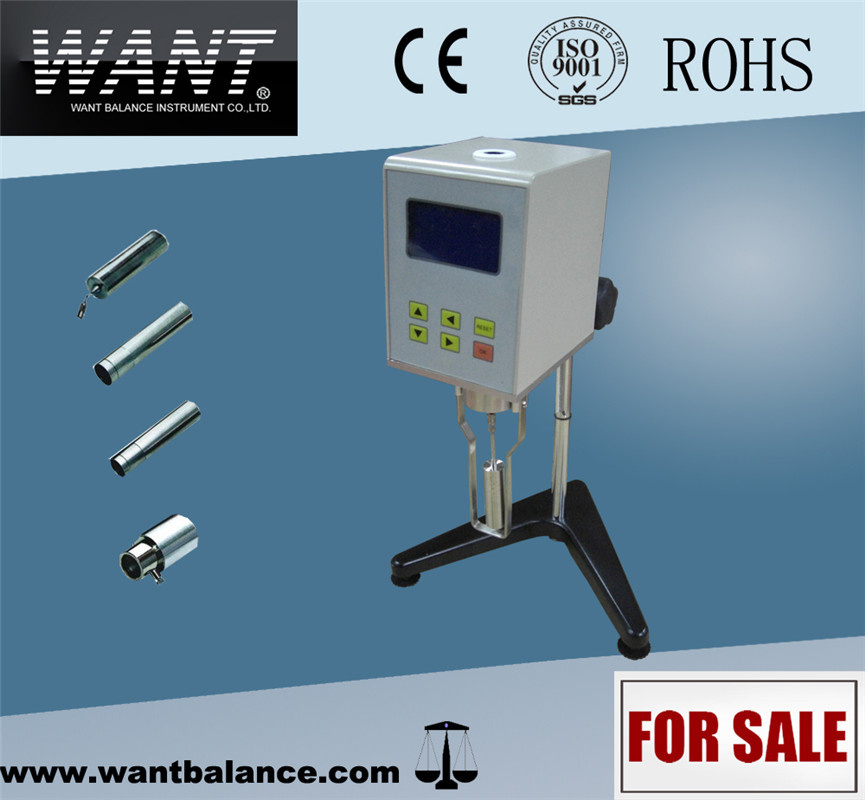

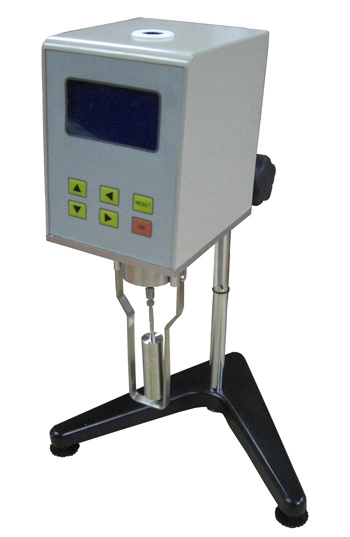

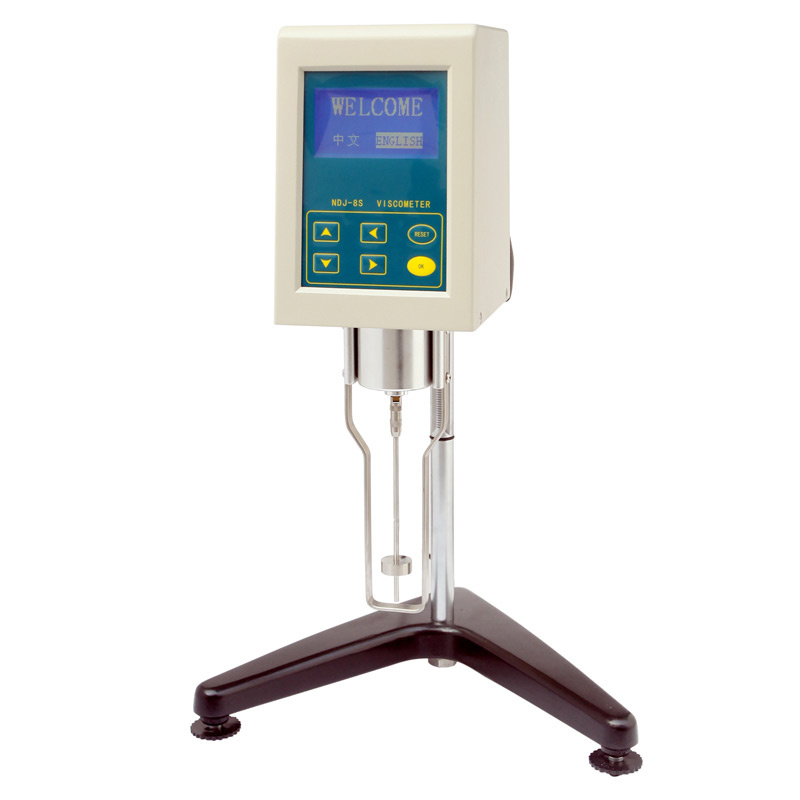

Rotational Electronic Digital Viscometer
This instrument is a new upgrading product of our rotational viscometer. The adoption of advanced mechanical design technology, manufacturing process, microcomputer control technology guarantees accurate data collection. Ultra bright LCD display with blue back-light guarantees clear data display. With the microcomputer technology, it is easier to set measuring span (rotor number and rotating speed), take digital process of the data measured by sensor, and clearly display rotor number, rotating speed, viscosity value of the tested liquid and its full-scale percentage on the screen. Besides, its automatic switch is set for free selection of proper rotating speed or rotor number.This instrument is an instrument to measure absolute viscosity of Newton liquid as well as apparent viscosity of non-Newton liquid featured by high flexibility, reliable test result, easy operation and beautiful appearance, which is widely applied to grease, paint, plastics, drugs, decorations, coatings and detergent. In addition, NDJ-5S/8S is also added English/Chinese interface for user's selection.
| Model | NDJ-5S | NDJ-8S | DV-1 |
| Measurement Range | 1~2×10 5 mpa.s | 1~2×10 6 mpa.s |
| Rotor Specification | 1, 2, 3, 4# |
| Rotating Speed of Rotor | 6 / 12 / 30 / 60 rpm | 0.3 / 0.6 / 0.5 / 3 / 6 / 12 / 30 / 60 rpm |
Interface |
No |
No | - Printer Interface
- PC Interface
- Temperature Sensor Interface
|
| Automatic Switch | free selection of proper rotating speed or rotor number. |
| Stable Cursor | Strip-type cursor fully charged displayed when reading basically stable |
| Measurement Tolerance | ± 2%(newtonian liquid) |
| Power | AC 220V ± 10% 50 Hz ± 10% |
Working Condition | Temperature 5-35ºC
Relative humidity no more than 80% |
| Outline Dimension (mm) | 100×140×170 mm (not including the foundation) |
| Packing (mm) | 410×490×250 mm |
| Net Weight (kg) | 7 kg |
| Gross Weight (kg) | 8 kg |
| FOB Shanghai in USD | 420 | 465 | 495 |
| Delivery Date (1 pc) | In 2~4 days after received the payment |
| H.S. Code | 9027 |

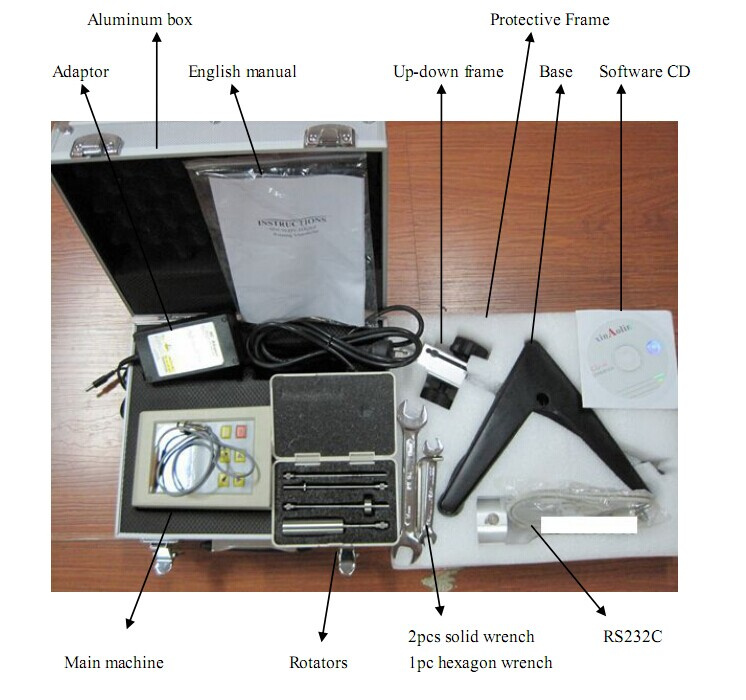

Attachments:No. 1,2,3,4 Rotor ------------------------------------------- 1 setAdaptor --------------------------------------------------------1 pcProtection Frame ------------------------------------------- 1 pcFoundation Plate ------------------------------------------- 1 pcUp-Down Frame -------------------------------------------- 1 setEnglish Manual --------------------------------------------- 1 pcHexagonal Spanner --------------------------------------- 1 pcSolid Wrench ------------------------------------------------ 2 pcsDV-1
NDJ-5S/NDJ-8S

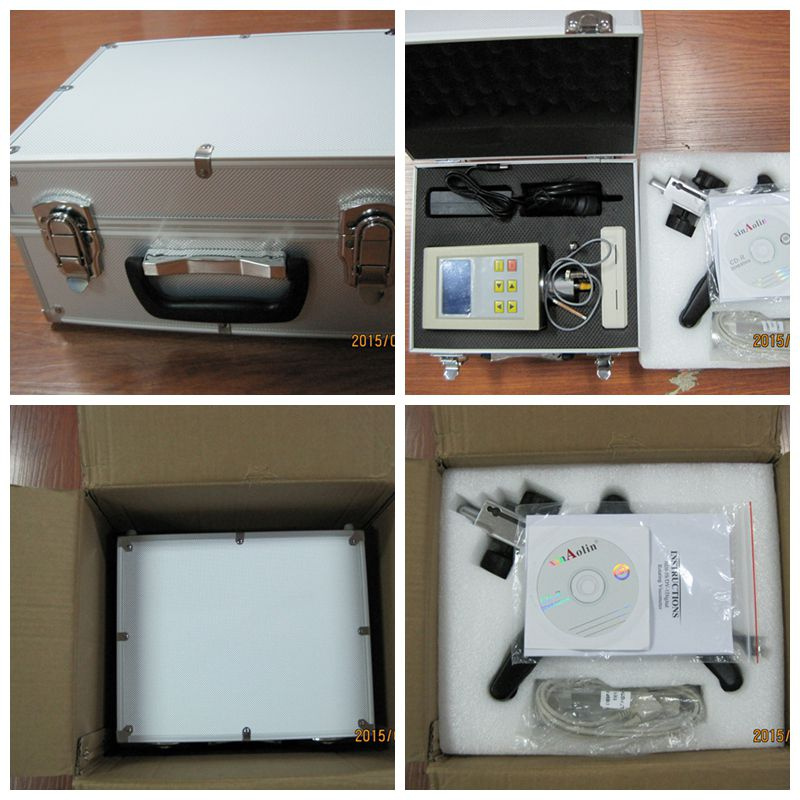

Packing:
WANT Balance Instrument Co., Ltd., has mostly engaged in theresearch, manufactureand sales of electronic balances for more than fifteen years.
Our factory has solid technical skill capability and administers a research institute which is engaged in the research and development of electronic balances. The technical skill level of Want balance is of the leading position among the products of the same category. Our products are sold many countries and are widely appreciated by our customers because of the good quality, reasonable price and the good service. We persists in the principle of " Put quality atthe first Place and regard customers as the most important". The entire production process has the strict quality control system.
Our goods are ISO9001: 2008, CE and RoHS approved, and comply with JB5374 standard (electronic balance). All thespecifications of our products are qualified in the test of Jiangsu provincial technology supervision bureau. Want balances can be used with weighing and counting dual purpose. And it can be equip with charge battery, printer, weights choosing equipment, shield and other Appendix. We can also make the special balances according to the requirement of the customers. WT series electronic balance has one year warranty period, and enjoys lifetime maintenance.
