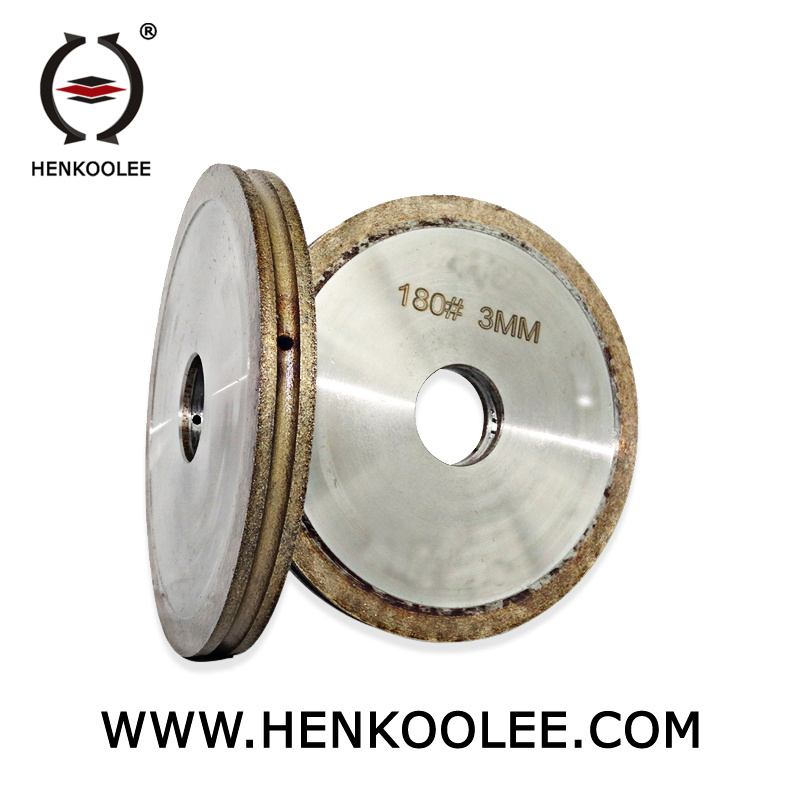

Round Diamond Edge Grinding Wheel for Glass Edging Machine
| Price: |
US $ 15-30/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HKL1059 |
| Applicable: |
Straight Edge Machine, Bilateral Machine |
| Product Material: |
Diamond |
| Working Style: |
Glass Angle Machine |
| Types: |
Cup Wheel |
| Name: |
Griding Diamond Wheel |
Product Description

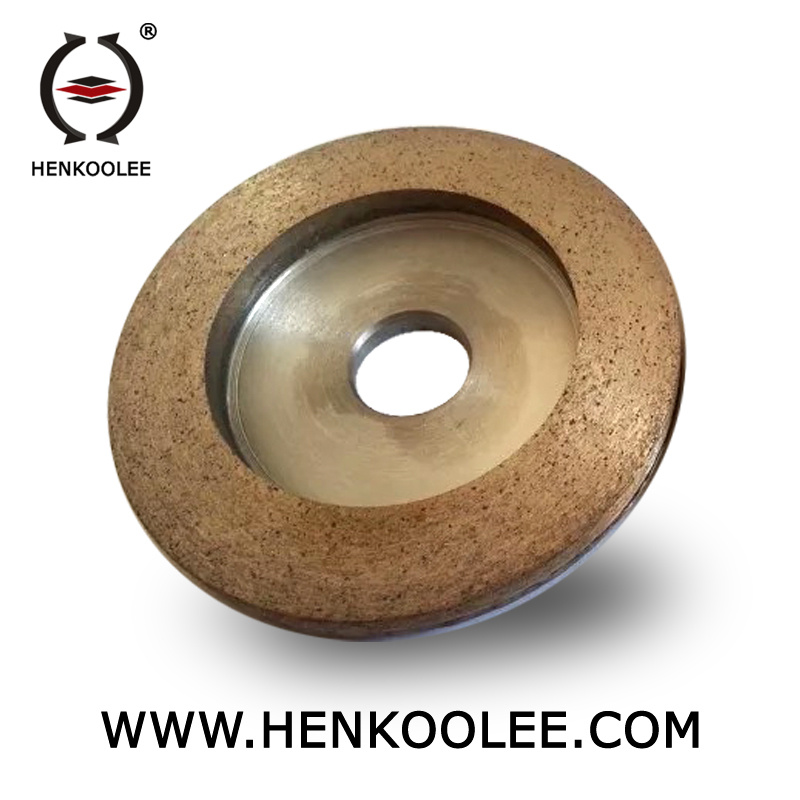

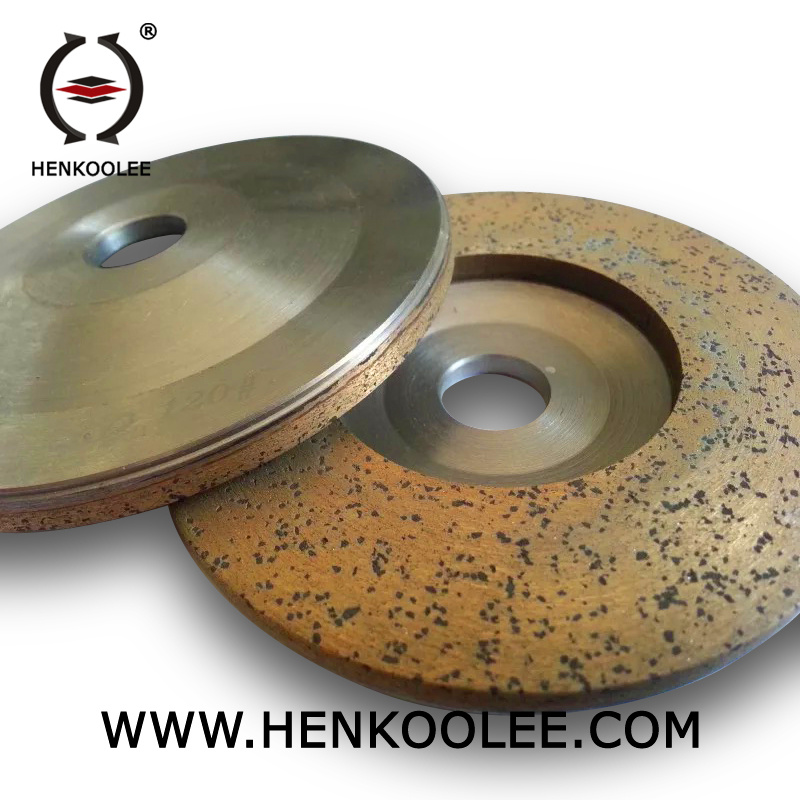

Diamond Grinding Cup Wheel for Glass Angle MachineFeature: Sharp, wear-resisting, polishing effect is good, stable quality, gooddiamond, Positioning hole, Cooling hole
Machine: Straight edge machine, beveling machine, bilateral machine, numerical control machine
Usage: Mainly used for glass grinding, abrasive, process. Application in straight edge machine, beveling machine and double edge machine
Application:diamomd grinding wheels for straight line and bevelling machines,
double line machines,CNC machines
Typical Products:| Diameter(mm) | Width(mm) | High(mm) | Hole(mm) | Grit# |
| Metal Full segment |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 175 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| Metal Internal segment |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 175 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| Metal continuous |
| 130 | 8 | 8 | 12/22/50 | 80/100/150/200/240/300/400 |
| 130 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 8 | 8 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| Metal outer segment |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| Resin bond |
| 130 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 130 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
REMARK:OTHER SPESC SPECS ARE AVAILABLE UPON REQUEST.

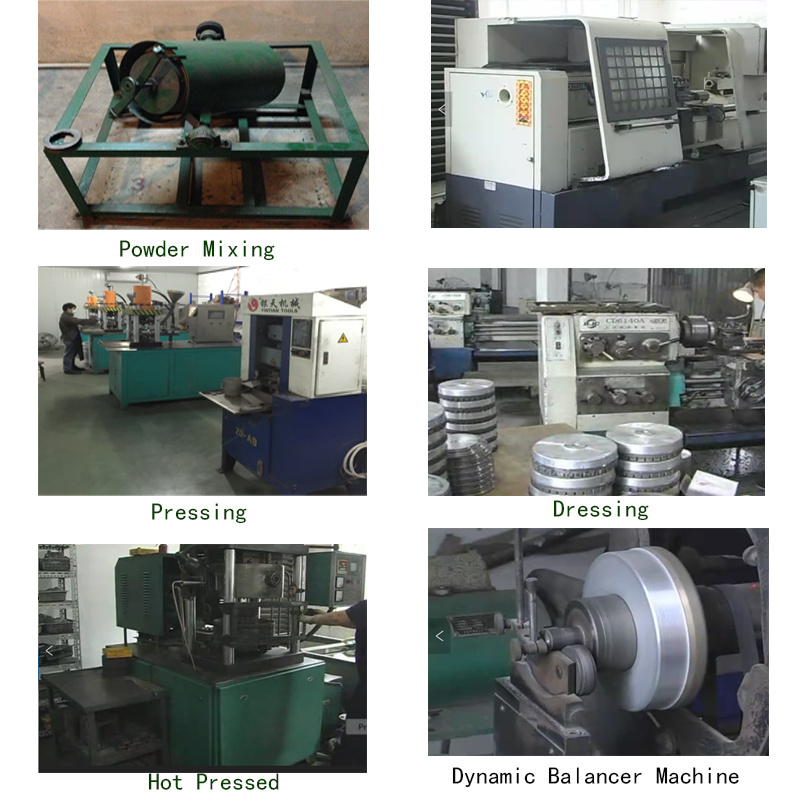

Procedure
HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.
Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.
Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
