| Prod Model: |
D-01/E-01/F01-05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Single Type |
| Style: |
Country Style |
| Lock: |
Without Lock |
| Installation Type: |
Embedded Installation |
| Surface Treatment: |
Paint |
| Usage: |
Cabinet |
| Customized: |
Non-Customized |
| Material: |
Plastic/Nylon |
| Shape: |
Round/Waist/Ellipse |
| Color: |
Black/White/Customized |
Product Description

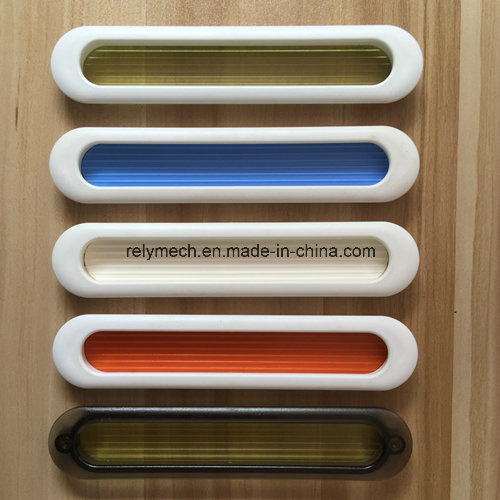

Style D: Waist shape, Long ellipse, Fixed by screwMaterial: PC(double colored, translucent)
Model:D-01
External Size:160mm*32mm*13.5mm
Screw pitch: 145mm(2-M4)
Style E: Two in one combined handle, fixed by Self-tapping screw 2-M3Material: ABS or UL94-V0(black, white color)
Model:E-01
External size:123mm*46mm
Inner size:114.5mm*38mm
Thickness:0~6.3mm

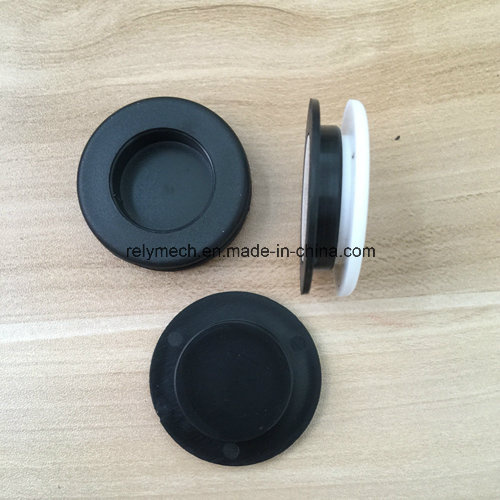

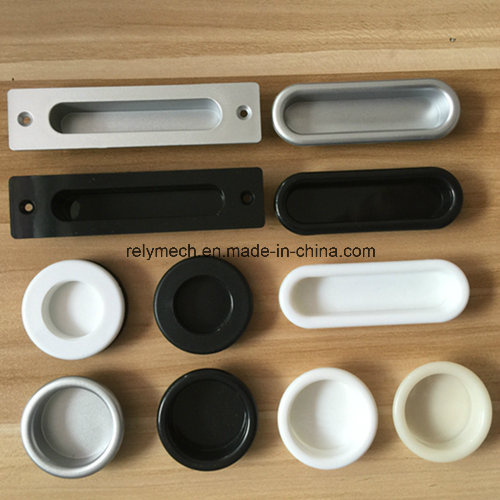

Style F: Round, Waist, EllipseMaterial: ABS| Model | Shape | External Size(mm) | Internal Size(mm) |
| F-01 | Round | Ø40, height 10mm | Ø32 |
| F-02 | Long waist | 77mm*25.5mm*10mm | 69mm*17.5mm |
| F-03 | Round | Ø40 | Ø30 or Ø26.5 |
| F-04 | Rectangular | 98mm*24mm*12mm | 70mm*15mm |
| F-05 | Male-female | 90mm*35mm, depth 12-20mm | 87mm*32mm |
