Prod Model: |
YR-30 |
Machined Profiles: |
Logs (Logs) |
Max Processing Width: |
Can Be Saw Natural Wide Film, All Open Film; Desir |
Saw Road: |
3mm |
Processing Diameter: |
3cm or Less (Customizable) |
Spindle Speed: |
11 Kw X 7.5 Kw |
Feeding Method: |
Artificial |
Speed: |
3800 Rpm |
Price Terms: |
Fob |
Port: |
Qingdao, Ningbo, Shanghai, Shenzhen |
Minimum Order Quantity: |
1 Set |
Type: |
Table Panel Saw |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Certification: |
SGS |
Product Description
Introduction of Round Wood Pendulum Table Saw
round wood pendulum saw table is a new woodworking machinery with the nature of band saw but the effect is four times as band saw, the logs can naturally open all the film, desirable square, to avoid the band saw sawing, digging the phenomenon.
Round wood pendulum saw table with high efficiency, high profile, suitable for short wood hardwood, large diameter logs, adjustable specifications, easy to move by foot, accurate. Slide with a linear guide, accurate without error, wear. The round wood pendulum saw table uses two independent motor, independent switch user-friendly, saw diameter straight wood can be opened when a motor (special model custom)
Applications of Round Wood Pendulum Table Saw
Applicable to the processing of various MDF, wood-based panels, fiberboard, particleboard, ABS board, PVC board, plexiglass plate and other wooden structure. Hardness similar to the plate.
Features of Round Wood Pendulum Table Saw
1. Pole use of imported gantry machining center processing, so that the accuracy of the leading domestic level.
2. Pole is divided into imported precision cylindrical guide and linear guide, higher precision, longer life.
3. Piston full linearity error is less than 0.15mm.
Parameter of Round Wood Pendulum Saw Table
New type of push table saw Model | YR-30. |
Machined profiles | logs (logs) |
Ingredients | can be saw natural wide film, all open film; desirable square. |
Saw road | 3MM |
Processing diameter | 3cm or less (customizable) |
Spindle speed | 3800 rpm |
Main motor power | 11 kW x 7.5 kW |
Feeding speed | 10 meters (artificial) |
Feeding method | artificial |
Layout of Round Wood Pendulum Table Saw

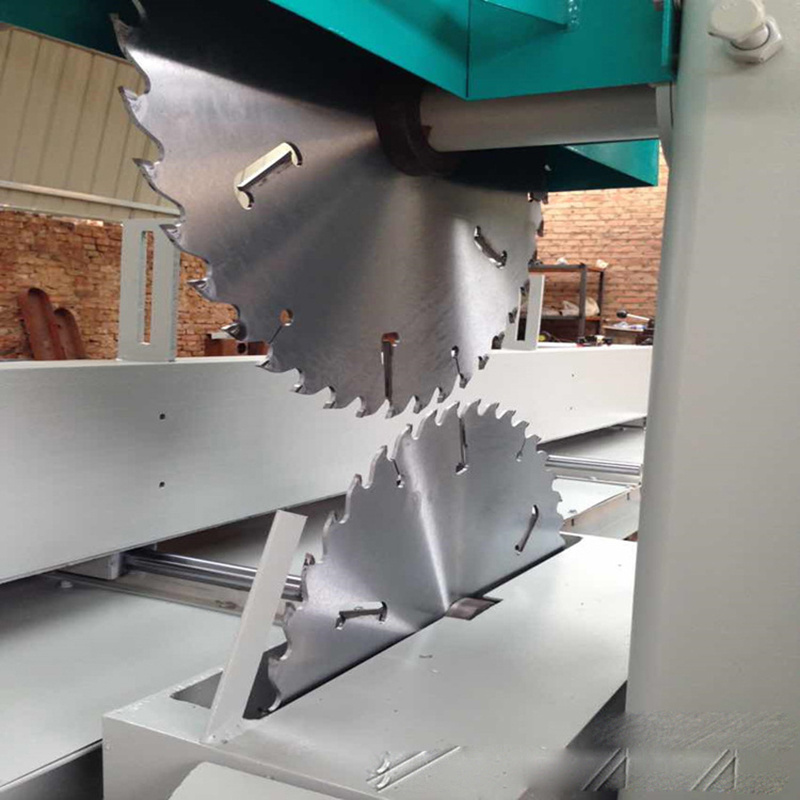

Up and down single-chip saws (sawing saws on the upper and lower saws are smaller, sawing accurate. Saw pin surface smooth, to avoid band saw saw, digging the phenomenon)
Note: The above data are standard data, according to customer needs to customize a variety of products.
Saw blade specifications: on the saw: 355 x 3.0 x 40T
Saw: 355 x 3.0 x 40T

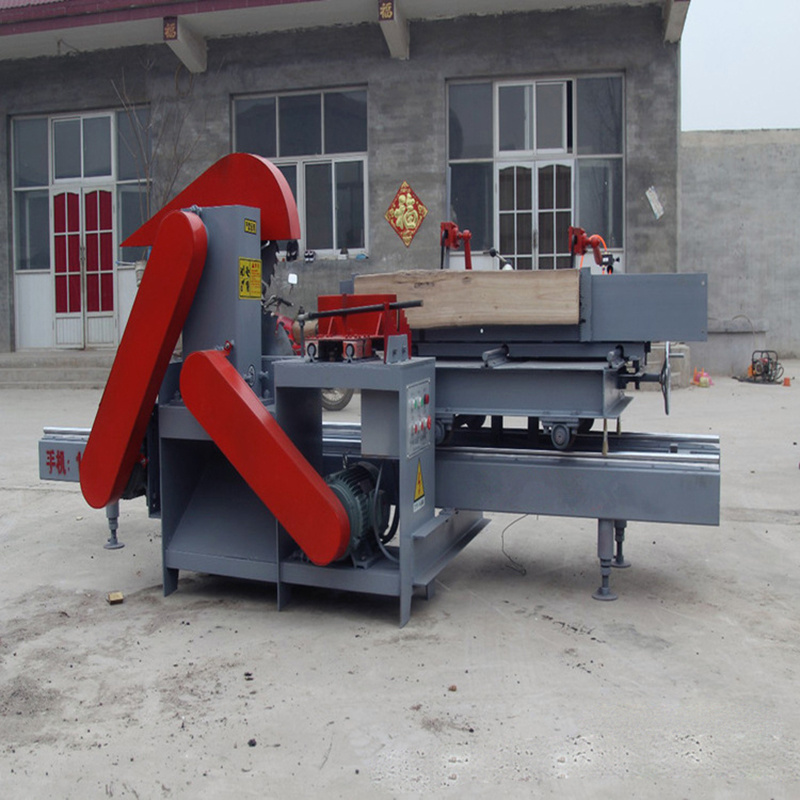

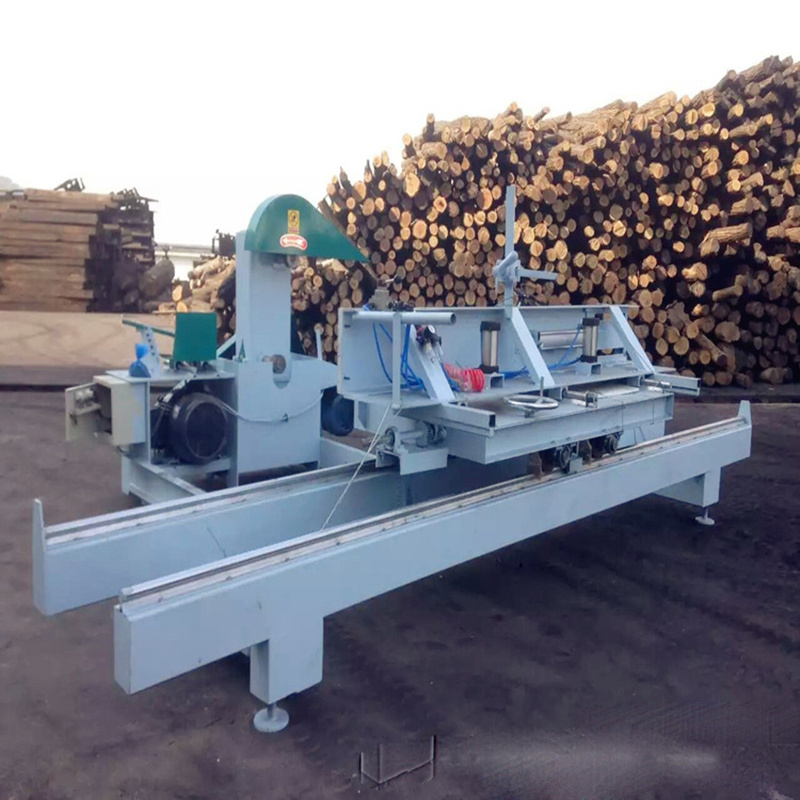

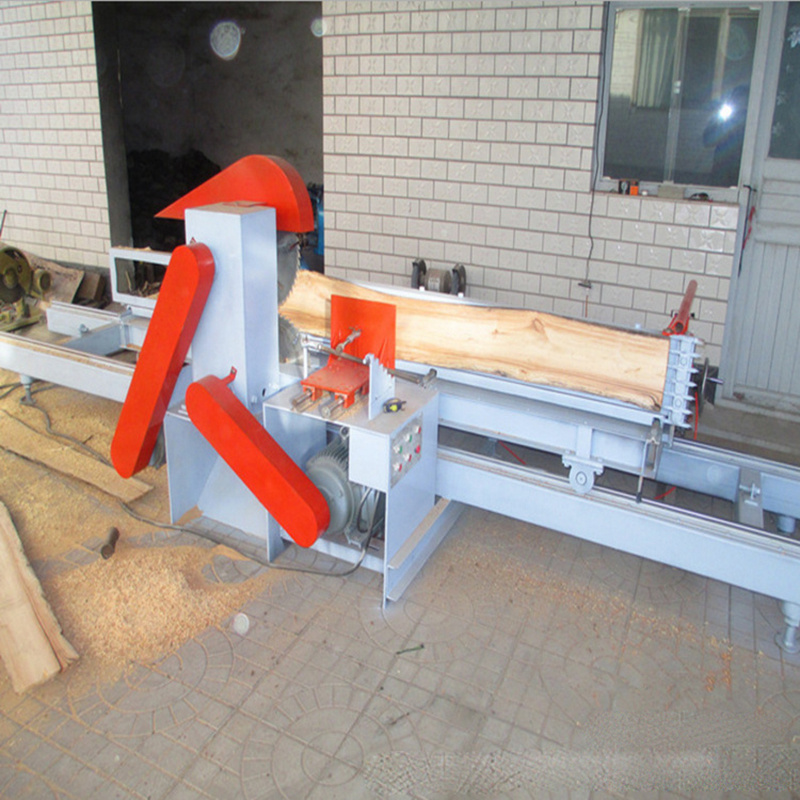

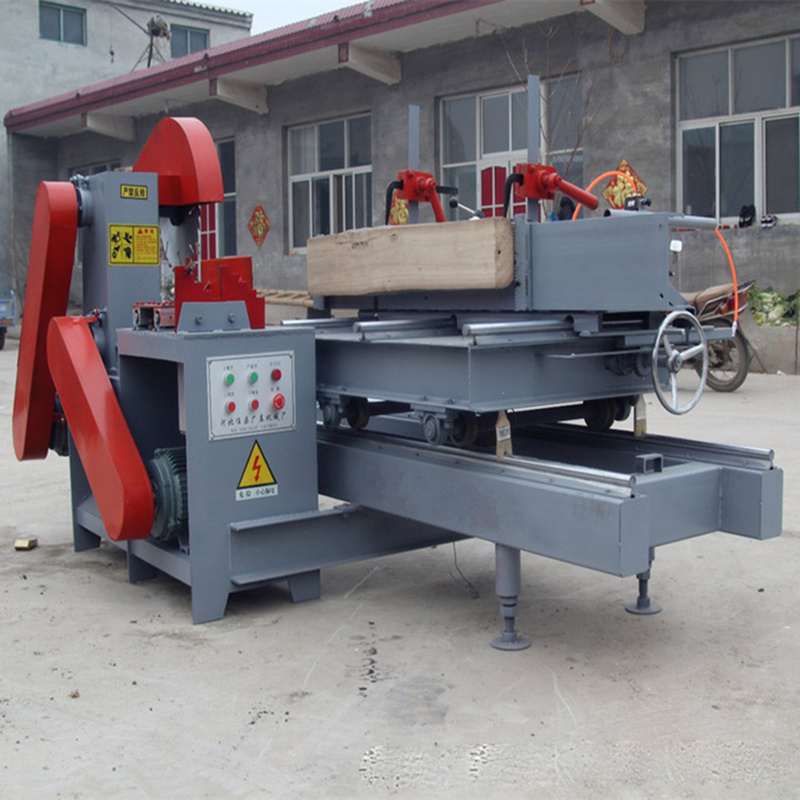

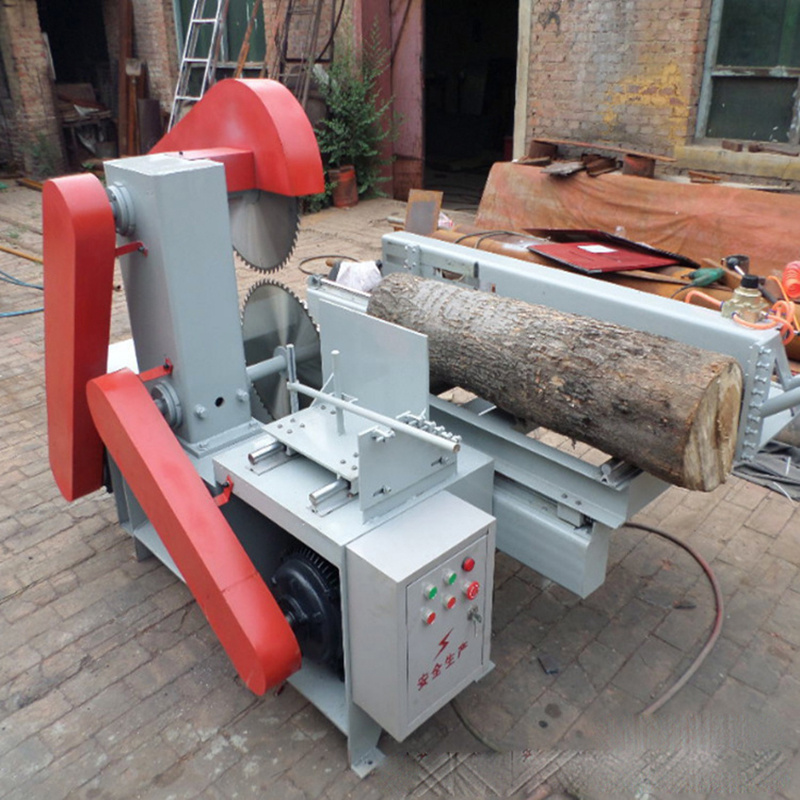

Images of Round Wood Pendulum Table Saw
