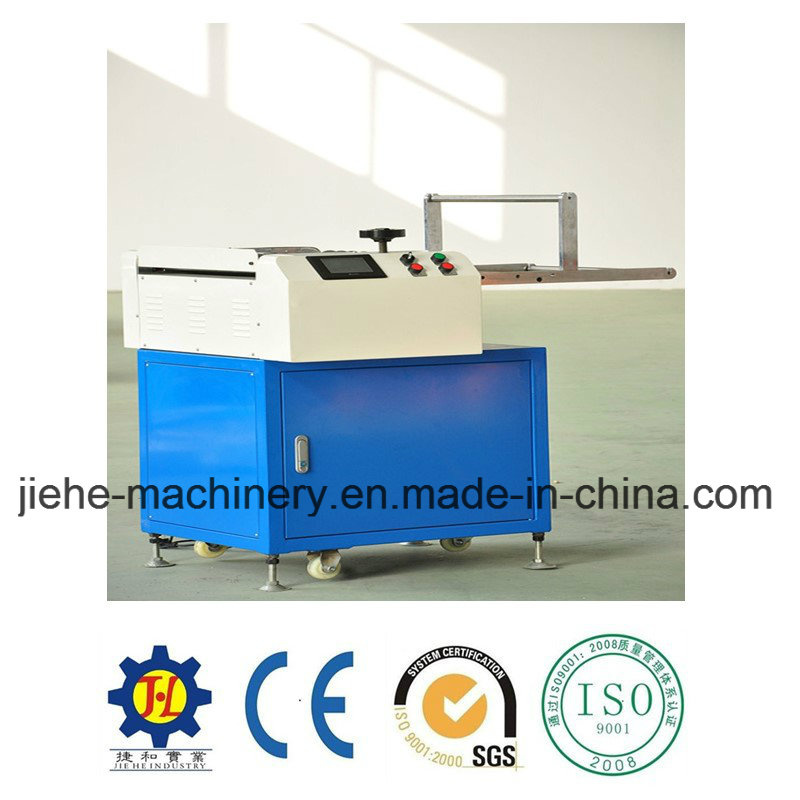

Rubber and Silicone Cutter/ Cutting Machine
| Price: |
US $ 2300-3000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
JH-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interactive Interface: |
English |
| Weight: |
190kg |
| Horse Power: |
2.2kw |
| Color: |
Blue |
Product Description
Technical parameters:
1.cutting width 500mm, cutting length 0.1-300mm, cutting thickness 10mm(silicon)
2. 200V ; 50HZ ; cutting motor 120W
3.The cutting blade reciprocates 85-100 times/min. The θ s of advanced electromotor is 0.6°/1.2°, its torsion is18Nm
4.Dimension: 1100*800*960mm Gross weight: 190KG
5.Multi-cutting cycle
6.Control system: PLC Pulsemodulation
7.Counter: LED
Technical parameters: | cutting width | 500mm |
| cutting length | 0.1-300mm |
| cutting thickness | 10mm |
| DC&Hz | 200v; 50Hz |
| cutting motor | 120w |
| blade frequency | 85-100time/min |
| control system | PLC |
| counter | LCD |
| dimension | 1100*800*960 |
| weight | 190kg |
Suitable manufacturer:Electronic industry,electric buttons, automobile-purpose rubber, rubber for common industries and household purposes,bottle blocks,medical rubber,trademark rubber,diamond blades tool, military&defense industry toy industry.A good start comes from the high quality. Suzhou Jiehe attaches great importance to the details of the whole process of production and it aims to offering the highest quality to our customers. Our company specializes in producing rubber injection molding machine, vacuum hydraulic machine, plate rubber vulcanization machine, performing machine, framework oil seal machine, silicon cutting machine and so on. Suzhou Jiehe Industry Co., LtdMobile:86-18862132131
Suzhou Jiehe Industry Co., Ltd is located at Xiangcheng District, Suzhou, Jiangsu, China and covers an area of 12000 square meters. Our company was founded by a group of professional engineer who is well experienced in rubber manufacturing machinery. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
A good start comes from the high quality. Suzhou Jiehe attaches great importance to the details of the whole process of production and it aims to offering the highest quality to our customers. Our company specializes in producing rubber injection molding machine, vacuum hydraulic machine, plate rubber vulcanization machine, performing machine, framework oil seal machine, silicon cutting machine and so on.
Our after-sale service network is always at your side and it also has service hotline to tackle with your complaint and feedback timely. We also supports technical service in terms of the problem results from the machine. We insist that our products are the best choice to the manufacturers who operate rubber electronic parts, auto parts, conductive rubber, seal type, sports equipment, medical equipment and various containers.
We will constantly follow the policy of taking advanced innovation to promote development, brand strategy and fist class service. And we will try our best to satisfy our customers.
Our products:
Suitable For:
O-rings, Gasket, Packings, Keypad, Roller, Pharmaceutical stopper, Piston of syringe, Automotive parts, Anti-vibration products, Silicone product and many other rubber articles.
Suitable manufacturer:
Electronic industry, electric buttons, automobile-purpose rubber, rubber for common industries and household purposes, bottle blocks, medical rubber, trademark rubber, diamond blades tool, military&defense industry toy industry.
