| Prod Model: |
SY-WIRE SAW-240 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
8.0 - 11.5 |
| Beads/Meter(PCS): |
37-40 |
| Fixing Method: |
High Quality Rubber /Plastic |
| Line Speed: |
24 - 28 |
| Cutting Speed: |
3 - 8 |
| Wire Life: |
8 - 20 |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Grade: |
a-Grade |
| Delivery Detail: |
7 - 15 Days |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Cutting |
| Usage: |
Stone Cutting |
| Customized: |
Non-Customized |
| Graininess: |
Success Formula for Stone Cutting |
| Thickness: |
Depend on Diameter |
| Shape: |
Diamond Wire Saw |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
Diamond Wire Saw |
| Specification: |
11.5mm 11mm 10.5mm 9mm 8.5mm 7.3mm |
Product Description
Description

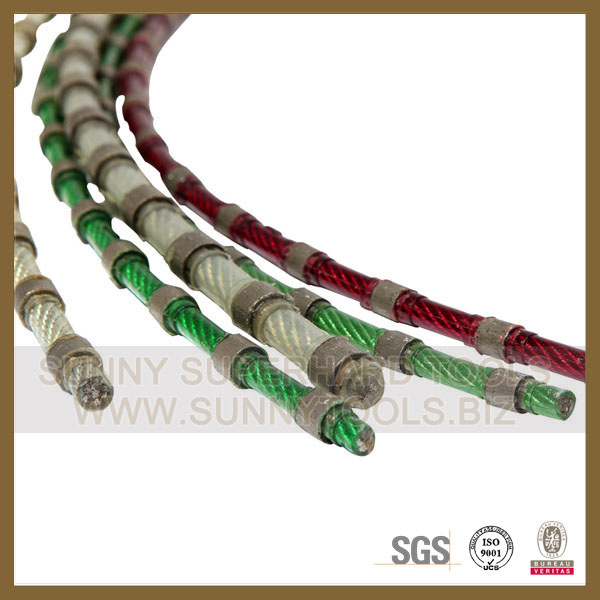

The quarrying wire is used mainly for cutting directly in the quarries or for squaring the blocks
The diamond wire is essentially composed of three main components:
1. Steel cable with different diameter depending on the application.
The cable is formed by 7 secondary cables with different diameters depending on the type.
2. Electroplated or sintered diamond beads.
Bond and diamond studied for the material to cut.
3. Assembly with springs, rubber or plastic.
Protects the steel cable from the abrasive action of the stone and also absorbs the energy of the cutting Friction of the beads against the stone
When place order of diamond cable please kindly inform:
1. The power and technical parameters of wire saw machine
2. The hardness and chemical information of granite material, if possible
3. The usual dimension of cutting bench, especially the working height
4. Expected cutting performance in both speed and life
5. Special requirement if any
[2013-08-02-6]
[2013-08-13-6]
| Diamond Wire Saws For Granite and Sandstone |
1.Use for Granite/sandstone cutting.
2. High quality cable insure less breakage and good tension.
3. keep Sharp and long life
4. Original Rubber/plastic bring better performance in tough environment |
| Specification and performance parameters of wire saws |
| Bead Diameter | Beads/Meter | Fixing Method | Application | Line Speed | Cutting Speed | Wire Life |
| Ø11.5 | 40 | High quality rubber | granite quarry | 24~28 | 4~8 | 8~18 |
| Ø11.0 | 40 |
| Ø11.0 | 37 | High quality plastic | granite squaring | 24~28 | 5~7 | 12~20 |
| Ø10.5 | 37 |
| Ø11.0 | 40 | High quality rubber |
| Ø10.5 | 40 |
| Ø9.0 | 37 | High quality plastic | granite profiling | 24~28 | 3~4 | 10~14 |
| Ø8.5/8 | 37 |
| Other specifications are available upon requirement. |
