Rubber Cutting Machine, Single Knife Hydraulic Rubber Bale Cutter
| Price: |
US $ 4090-4250/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XQL-125 |
| Cutting Knife Width: |
760mm |
| Cutting Knife Stroke: |
780mm |
| Total Pressure Of Oil Cylinder: |
125kn |
| Time Taken Of One Stroke: |
14-16s |
| Driven Motor Power: |
5.5kw |
Product Description
Our Advantages:
1. More than 30 years experience in designing & manufacturing of rubber machines.
2. Jerry-build & inferior quality are never allowed.
3. Powerful technical team for customized service & professional oversea technical guide.
4. Strong processing capability for the most efficient machine delivery.
XQL-125 Rubber Bale Cutter, Rubber Bale Cutting Machine, Rubber Cutting Machine
Machine Usage:
Rubber bale cutter is one of the raw material processing machines of rubber factory. It's mainly used in cutting the natural rubber or synthetic rubber into easy mixing small blocks to conform the requirements.
Machine Introduction:

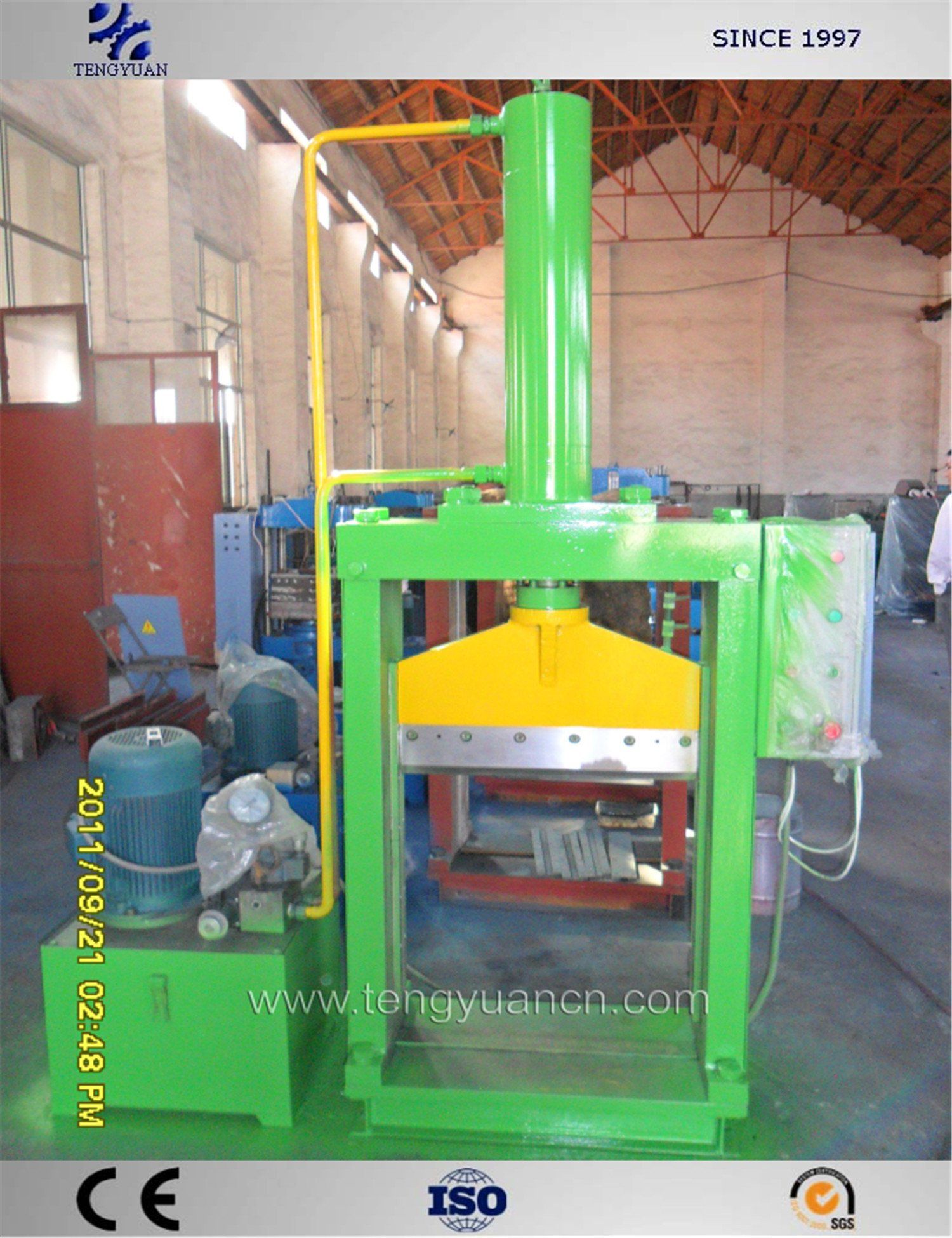

XQL-80 single knife rubber bale cutter mainly consists of motor, vane pump, magnetic exchange valve, overflow valve, slave ram, oil pressure gauge pipe, hydro-cylinder support, rubber cutting knife, rack, conveying groove etc. Oil cylinder uses standard hydro-cylinder; Rack use high quality welded steel frame; the rubber cutting knife is made of 9CrSi or T8A, through heat treatment its hardness reaches HRC60. Below the cutting knife is nylon board to protect the knife edge.
When cutting rubber, raw rubber bag (cold and raw rubber should be preheated before thawing) put in the conveying groove, pushing it to the below of the cutting knife, then hands off the rubber blocks, press the button to start cutting rubber.
Machine Features:
1. Durable machine body with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design.
4. Less maintenance needed.
5. Easy installation.
6. Environment protection.
7. High safety configuration & humanization design.
8. High automation.
9. High efficiency and superior cutting performance.
10. Low power consumption & labor saving.
11. Low noise & long service life.
Technical Parameters:| Model | XQL-80 | XQL-120 | XQL-125 |
| Cutting Knife Width(mm) | 660 | 760 | 760 |
| Cutting Knife Stroke(mm) | 680 | 680 | 780 |
| Total Pressure of Oil Cylinder(KN) | 80 | 120 | 125 |
| Time Taken of One Stroke | 14-16 | 13-16 | 14-16 |
| Motor Power(KW) | 5.5 | 5.5 | 5.5 |
| Overall Dimension (LxWxH) (mm) | 1800x600x2450 | 2300x1500x2530 | 2400x1500x2530 |
Our Service:
1. Our engineer team can design customized machines for you and send the drawings for confirmation.
2. The wires' connection from control box to operation box is finished before delivery. The user only needs to connect the outside wire to the controlling box.
3. Each machine is tested running with load at our factory before delivery to guarantee each parts working well.
4. Foundation drawings, detailed machine assembly drawings & parts drawing, user guide and maintenance manual will be supplied before the delivery.
5. Custom clear documents required in destination port, such as B/L, commercial invoice, packing list, insurance policy, C/O will be supplied once upon the delivery.
6. Oversea technical support can be offered as per request.

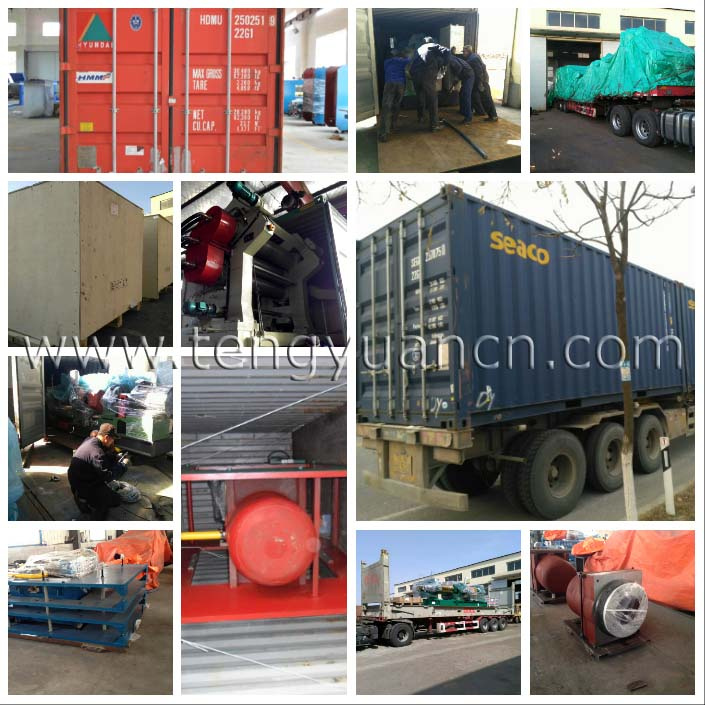

Our Package & Delivery:
FAQ:
1. Delivery time of the rubber machines?
Normally it needs about 25 days to 3 months according to the ordered machines' size and quantity.
2. What does your factory do regarding quality control?
We have the most professional engineer team to design the correct machines at the beginning, equip with the most advanced processing device to process the machine parts during the production period and finally arrange the most experienced assembly workers to assemble and check the final machines to 100% guarantee the superior quality and stable performance of each machine.
3. How long is your machines' warranty period?
The warranty period for our machines is one year from the day of normal working at the user plant.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support at the user plant with the charge of the required cost.
Small machines normally takes within 1~3 days.
Large machines normally takes about 30 days.
5. How can we go to your side for a factory visit?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao liuting airport.
Please advise us your time schedule in advance for us to pick up you at the airport.
Qingdao Tengyuan Machinery Co., Ltd. is located in the west coast of Qingdao, which is one of the fastest developing economic and technology development zone in China. Our company is one of the most popular rubber machinery manufacturers in Shandong province with more than two decades' designing and manufacturing experience.
Our has company has passed ISO9001: 2008 quality system certification and CE certification.
Engaged with strong technical strength, our company increasingly manufactures high efficiency, energy saving and high automatic machines by advanced means such as CAD and CAE, in view of solid technical power of us. More than 10 sets of heavy and high precision processing devices with NC largely ensure the demand of high-grade rubber machinery's production; With complete quality guarantee system, high precision testing instrument and perfect testing means, 100% guarantee stable and top quality of our machines; At present, Main machinery range of us is rubber mixing mills, rubber kneaders, plate vulcanizing presses, rubber sheet batch off coolers and extruders. Except above, our company is also dedicated to designing and manufacturing non-standard machines for the customers, such as large type plate vulcanizing presses, conveyor belts production line.
Our company has import-export rights and our machines have been exported to more than 20 countries and districts around the world, such as United States of America, Mexico, Argentina, Brazil, Spain, Portugal, Republic of Lithuania, Estonia, Finland, England, Russia, Kazakhstan, Uzbekistan, Thailand, Sri Lanka, Malaysia, Indonesia, Bangladesh, Pakistan, Singapore, Saudi Arabia, Bahrain, Egypt, New Zealand, etc. By the superior machine quality and quick after-sale service, our machines have gained the praise from our domestic and foreign customers.
Sticking to the principle of "Quality and prestige first, science and technology to seek development", we sincerely expect a win-win future with each respected customer.
