| Price: | US $ 3000-5000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | XQL-125 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Green |
| Width Of Knife For Cutting Plastic(mm): | 760 |
| Knife Stroke(mm): | 680 |
| Cylinder Total Pressure Approximately(Kn: | 125 |
| Stroke Time(S): | 13-16 |
| Motor Power(Kw): | 14 |
| Overall Size(mm): | 2300*1500*2530 |
| Product Weight(Kg): | 2600 |
| Type: | General Rubber Machinery |
| Type Of General Rubber Machinery: | Rubber Cutter |
| Certification: | Ce, ISO9001 |
♥ Qingdao HUICAI Cooperate Sincerely With You ♥
Vertical Rubber Cutter Rubber Cutting Machine
◊Uses:
This rubber bale cutter is mainly used to cut the natural rubber,synthetic rubber and other plastic
materials,especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber.
◊Features:
1.This rubber bale cutter mainly consists of cutting knife,frame,cylinder,base,auxiliary table,sydraulic
system and electric system.
2.The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife.
3.When cutting the raw rubber,put the raw rubber under the cutting knife,the press the start button,the knife can cut the rubber.
4.Two limited switches are installed on the frame to control the reversal valve to change the movement direction of the knife,at the same time,it protects the cover of the cylinder.
◊Application:
This vertical rubber cutter is mainly used for cutting the natural rubber, synthetic rubber into pieces for the refining of small plastic.
◊Technical Parameters:
Type | XQL-80 | XQL-120 | XQL-125 |
Width Of Knife for Cutting Plastic(mm) | 660 | 760 | 760 |
Knife Stroke(mm) | 680 | 680 | 680 |
Cylinder Total Pressure Approximately(KN) | 80 | 120 | 125 |
Stroke Time(s) | 14-16 | 13-16 | 13-16 |
Motor Power(kw) | 5.5 | 11 | 14 |
Overall Size(mm) | 2122*1440*2509 | 1950*1400*2338 | 2300*1500*2530 |
Weight(kg) | 1600 | 2000 | 2600 |

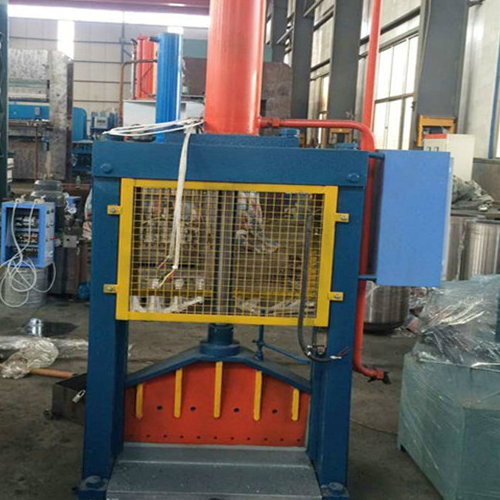

◊Picture Show:
◊Company Information
◊Foreigners Visit:
♦ Contact us ! ♦
♥ We can according to all your requirements, design your machine you require!
♥ If you are interested in our products, please contact me!
