| Prod Model: |
HZKLK454 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Wire Saw for Cutting Granite Marble Concrete |
| Hardness: |
Soft, Middle, Hard |
| Cutting Speed: |
10-40 |
| Wire Speed(M/S): |
30-40 |
| Technology: |
Sintered, Electroplated, Vacuum Brazed |
| Certification: |
ISO9001:2000, SGS |
| Beads Diameter: |
7.2-11.5mm |
| Price: |
Competitive |
| Grade: |
a |
| Production Processes: |
More Than 70 Processes, 100% Quality Testing |
| Saw Type: |
Chain Saw |
| Application: |
Granite,Marble,Concrete |
| Type: |
Fixed |
| Power Source: |
Hydraulic |
| Brand: |
Huazuan |
Product Description

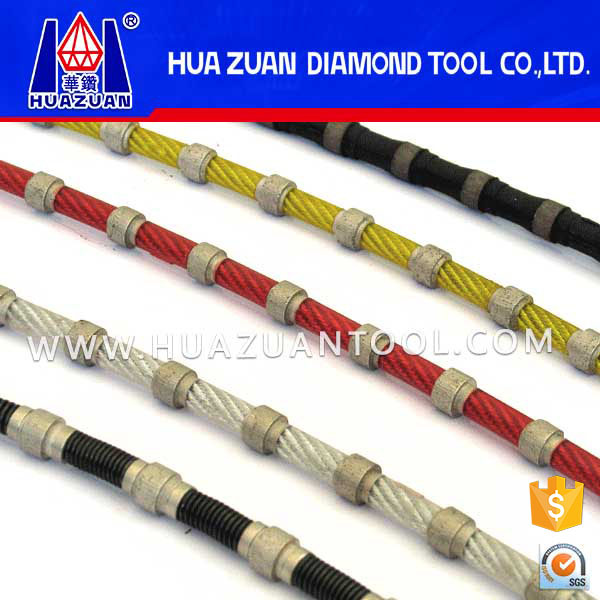

New Arrival High Precision Diamond Wire Saw For Granite Marble Block Squaring
| Application | 1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting
2.For Cutting Reinforce Concrete |
| Diameter Of Wire Saw | 7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
| Technology | Sintered,Electroplated,Vaccum Brazed |
| Coating Fix Injection | Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring |
| Beads/Meter | 40/37/33/28/26pcs |
| Attention | l. Checking the saw regularly and adjust timely.
2.Checking the pearl abrade regularly,Avoid the eccentric wear
3. Checking the joint regularly and adjust timely.
4. The tension of ropes is 250-300kg(Φ4-5mm ropes)
5.Water supply is around 15-25L/min |
| Feature | 1.Very less breakage ratio when using therefore increase working lifetime.
2.Automatic production ensures stable quality performance.
3.Safe, high efficiency and environment protecting. |
Product photo:
Our Advantage:
There are some parameter for your reference:
Diamond wire saw for Granite block squaring
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ8.8mm
Φ11mm
Φ11.5mm | 37 | Rubber | Soft | 25-30 | 10-15 | 14-21 |
| Middle | 22-25 | 5-10 | 10-14 |
| Hard | 18-22 | 3-8 | 8.5-11 |
Φ8.8mm
Φ11mm
Φ11.5mm | Plastic
Plastic +
Spring | Soft | 25-30 | 10-15 | 14-21 |
| Middle | 22-25 | 5-10 | 10-14 |
| Soft | 18-22 | 3-8 | 8.5-11 |
Diamond wire saw for Marble block squaring
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ8.8mm
Φ11mm
Φ11.5mm | 33 | Plastic
Plastic +
Spring | Soft | 36-40 | 30-40 | 42-60 |
| Middle | 34-36 | 15-25 | 36-54 |
| Hard | 30-32 | 10-20 | 18-30 |
*Other specifications are available upon request.
