| Prod Model: |
XQL-80 |
| Voltage: |
380V |
| Power Source: |
Horizontal |
| Rated Cutting Power: |
80 Kn |
| Cutting Width: |
660 mm |
| Cutting Knife Stroke: |
680 mm |
| Cutting Knife Stroke Time: |
14-16s |
| Motor Power: |
5.5kw |
| Overall Dimension: |
1800X600X2450 mm |
| Pressure: |
Hydraulic |
| Export Markets: |
Global |
Product Description
Product Description
Hydraulic Rubber Bale Cutter, Rubber Cutter, Rubber Bale Cutter XQL-80
Rubber bale cutter is one of the raw material processing machines of rubber factory. It's mainly used in cutting the natural rubber or synthetic rubber into easy mixing small blocks to conform the requirements.
XQL-80 single knife Hydraulic Rubber Cutter has compact structure, easy operating, less wearing parts and easy maintenance. It is the essential machine for raw material possessing.
XQL-80 single knife Hydraulic Rubber Cutter is mainly consist of motor, vane pump, magnetic exchange valve, overflow valve, slave RAM, oil pressure gauge pipe, hydro-cylinder support, rubber cutting knife, rack, conveying groove etc. Oil cylinder uses standard hydro-cylinder; Rack use high quality welded steel frame; The rubber cutting knife is made of 9CrSi or T8A, through heat treatment its hardness reaches HRC60. Below the cutting knife is nylon board to protect the knife edge.
| type | XQL-80 | XQL-120 | XQL-125 |
| Width(mm) | 660 | 760 | 760 |
| Stroke(mm) | 680 | 680 | 780 |
| Total Pressure of Oil Cylinder(KN) | 80(about) | 120(about) | 125(about) |
| Time Taken by the Stroke | 14-16 | 13-16 | 14-16 |
| Power(KW) | 5.5 | 5.5 | 5.5 |
| Overall Diameter (LxWxH) (mm) | 1800x600x2450 | 2300x1500x2530 | 2400x1500x2530 |

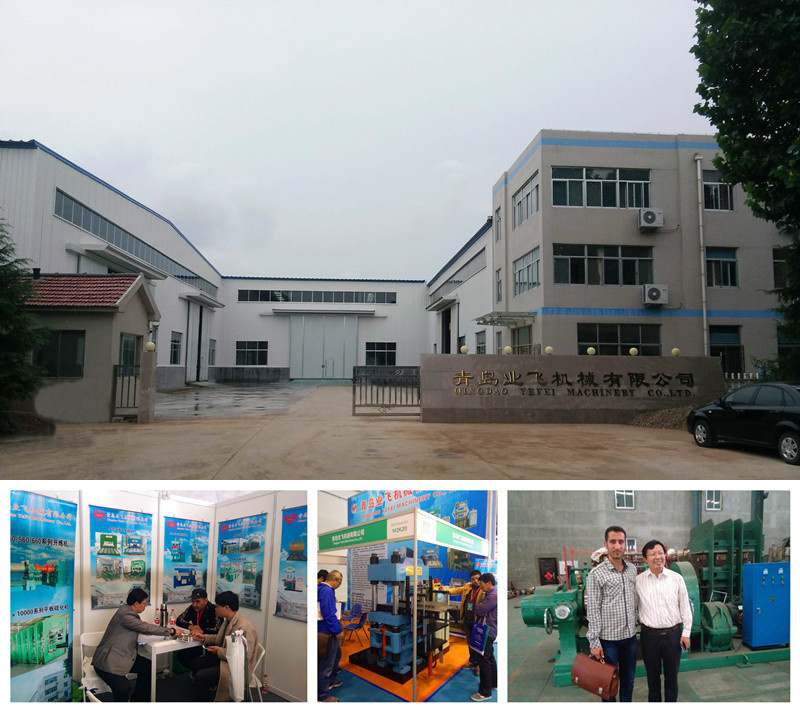

Qingdao YeFei Machinery Co., Ltd is located in the scenic beauty of the west coast of Qingdao/jiaonan, is a collection research and development, design, production, sales and service as one of the rubber machinery manufacturing enterprises.
We are a professional manufacturer of all kinds of environmental rubber tires, motorcycle inner tubes, all kinds of rubber products, rubber machineries and its accessory equipments. We are the best manufacturer of European standard vironmental protection and energy saving rubber tires. Our rubber products are all with high quality and competitive price and compliance with EU REACH and PHAs standard in China. About the rubber machines we can design and manufacture all kinds of non-standard rubber machineries according to the requirement of the customers. We have cooperations with several agencies major in designing and producing rubber & plastic products, on the R & D of rubber-plastic field, technology assessment, technical training, technological achievements. We contract a full set of equipments on making all kinds of large engineering
Rubber-plastic, tyres and other rubber-plastic products. We provide commissioning process and installation, until customers produce satisfied products and achieve maximum economic benefits.
Our company passed ISO9001: 2008 International Quality Management System Certification. The company gathered a number of outstanding technical staffs, management persons, have a young marketing team which has international perspective and local experiences, offering the professional international marketing services. We have high level, high efficiency, high-speed marketing network, quickly seizing the international market.
Our company has excellent machine-processing equipments, advanced technology, unique test method, full of quality products and good sale-service system, we are well received by consumers, leaves a good corporate image in the peer.
" Excellent, customers first, scientific management, continuous improvement " Is our quality policy, Qingdao YeFei Machinery Co., Ltd will serve you the best.
