| Prod Model: |
Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Arts: |
Cutting |
| Kind: |
Stone Sawing Machine |
Product Description
For concrete and reinforced concrete, we will recommend our wire of ABRASIVE-G635#-A with 40beads of diameter 11.5mm and fixed with strong rubber + flat spring between each two beads. Please find the performance of our wire for your kind reference as below:

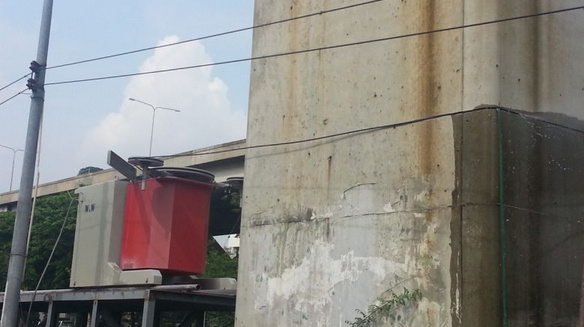

Application 1: For cutting the road base or bridge (Concrete: C50; Density of steel 3-5%, Diameter of steel: 12mm screwed)
Cutting speed: 3-5M2/Hour
Cutting life: 4-5M2/LM
Application 2: For the railway bridge (Concrete: C50; Density of Steel: >5%; Diameter of Steel: 32mm screwed, twin lines with 10cm distance)
Cutting speed: 2-3M2/Hour
Cutting Life: 2.5-3M2/LM
Application 3: For the Highway (Concrete: C50; Density of Steel: >5%; Diameter of Steel: 25mm screwed, twin lines with 15cm distance)
Cutting Speed: 2-3M2/Hour
Cutting Life: 4-6M2/LM
| Diamond Wire Saw For Reinforce Concrete Cutting |
| Features: |
| 1. High efficiency working in large and irregular building |
| 2.Safe and little pollution condition |
| 3.Good sharpness and long life. |
| Specification | Assembing Method | Beads/meter | Application |
| Φ10.5 | Rubber+Spring | 40/44 | Normal wet cutting/Dry cutting |
| Φ11.0 | 40 | Underwater cutting/Cutting Steel structures |
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
