| Prod Model: |
GDW-KT-Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

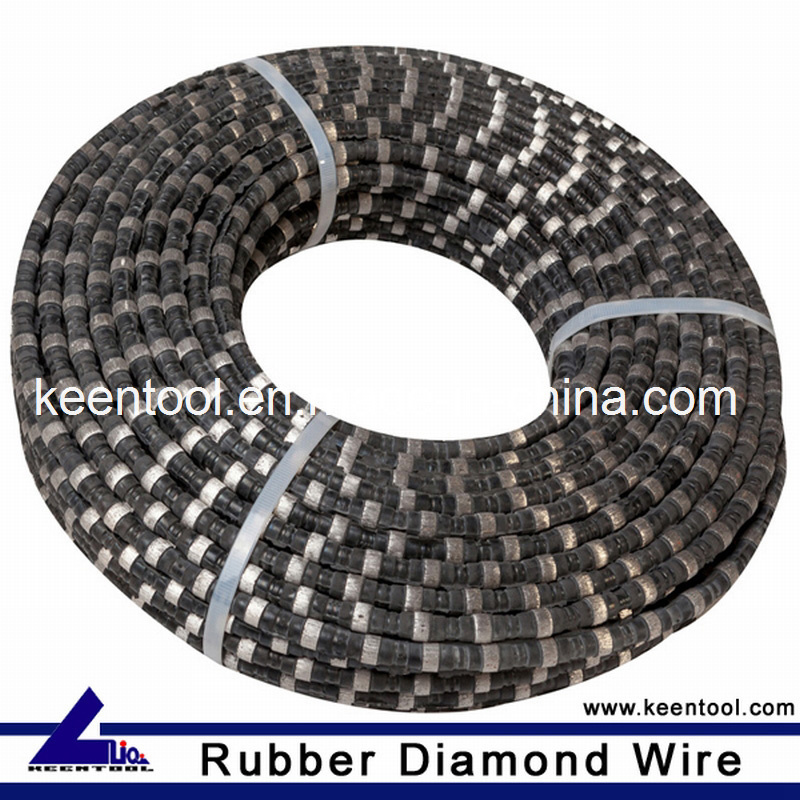

Rubber Wire Saw |
| Diameter: |
11.5mm |
| Beads: |
Sintered Beads |
| No. Of Beads: |
40 PCS |
| Length Of Wire: |
50m/Roll |
| Weight: |
17kgs |
| Applcation: |
Stone Cutting |
| Certificaiton: |
SGS |
| Manufacturing Arts: |
Sinter Beads with Rubber Injection |
Product Description
DescriptionWe produce the Wire saw for stone cutting with procedures as follows:
1. Sintered diamond beads with cobalt bond system and top quality diamond from South Korea and U. K, which make sure for good cutting performance in both speed and life.
2.40 PCS Diamond beads with specification of 11.5mm diameter, and 6.5mm width of diamond for better cutting life
3. Top quality steel cable from Germany with diameter of 4.8mm and structure of 133 thighs (7*19PCS), with guarantee for no break during normal work.
4. Good quality crude rubber with advanced technical procedures and equipment for injection, which make the rubber get inside of steel cable with better protection of steel cable and no break during work.
When place order of wire saw for stone cutting, please kindly inform:
1. The power and technical parameters of wire saw machine
2. The hardness and chemical information of granite material, if possible
3. The usual dimension of cutting bench, especially the working height
4. Expected cutting performance in both speed and life
5. Special requirement if any

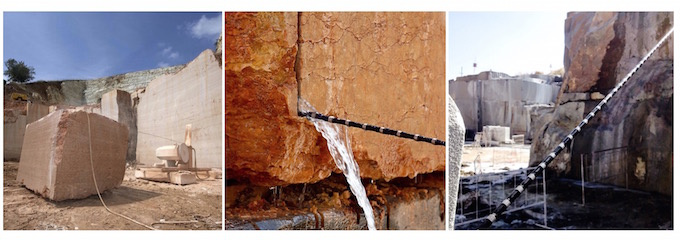

Technical Data| Rubber wire saw for granite quarry |
| Specification of beads(mm) | Model | Coating | Beads No.
(Pcs/M) | Hardness of Granite | Cutting speed
( Sqm/Hr ) | Cutting life
(Sqm/Mtr ) |
Φ11.5mm
Φ11.0mm | GDW-KT-Q | Rubber | 40 | Soft | 8-12 | 28-40 |
| Medium | 6-8 | 18-25 |
| Hard | 3-5 | 8-15 |
Packaging & Shipping: Packaging: Carton with water proof plastic.
Meters/Roll: 50/60Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
